Subtotal (1 unit)*
£162.00
(exc. VAT)
£194.40
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.00 |
*price indicative
- RS Stock No.:
- 175-9926
- Mfr. Part No.:
- 2CSA255901R9134 S-ARC1 C13
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Width | 69mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Width 69mm | ||
- COO (Country of Origin):
- IT

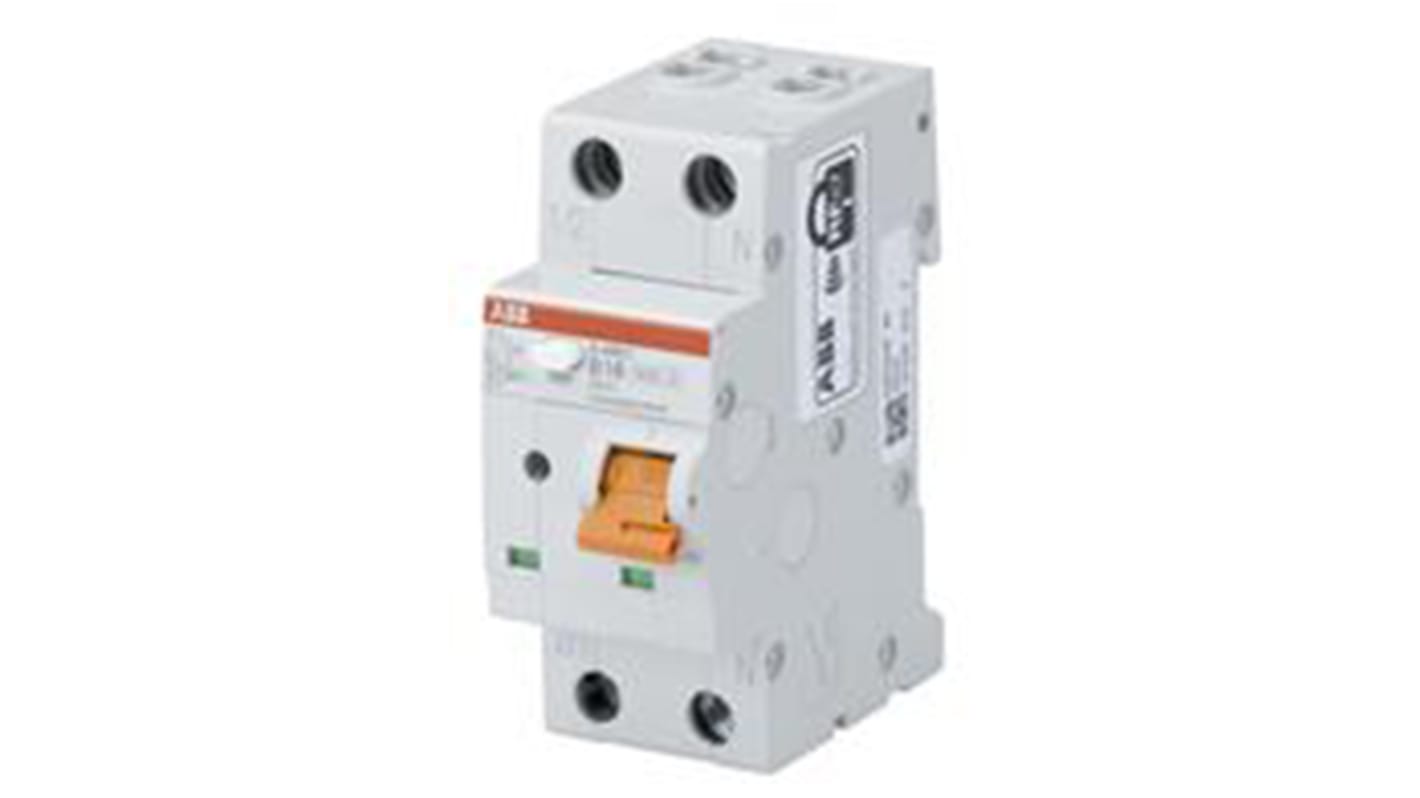

ABB S-ARC1 Series MCB, 13A Current Rating , 1+N Poles - 2CSA255901R9134 S-ARC1 C13
This MCB is an essential component designed for effective circuit protection. As a single-pole circuit breaker with NEUTRAL (1+N) configuration, it boasts a current rating of 13 A. With dimensions of 35mm width and a depth of 69mm, it is suitable for DIN rail mounting, ensuring easy installation in various electrical systems. The product features a tripping characteristic of Type C and operates at a rated AC voltage of 240 V, delivering reliable performance.
Features & Benefits
• Provides short circuit protection to enhance safety
• Features a 6 kA breaking capacity for robust performance
• Designed for 240 V circuits, ensuring compatibility with standard voltages
• Utilises a toggle switch for simple reset operation
• Equipped with screw terminals for secure and stable connections
• Compact design allows for efficient use in confined spaces
• Features a 6 kA breaking capacity for robust performance
• Designed for 240 V circuits, ensuring compatibility with standard voltages
• Utilises a toggle switch for simple reset operation
• Equipped with screw terminals for secure and stable connections
• Compact design allows for efficient use in confined spaces
Applications
• Used with residential electrical systems for safety
• Ideal for commercial setups to prevent overloads
• Utilised in automation systems to safeguard machinery
• Can be deployed in industrial environments for circuit protection
• Ideal for commercial setups to prevent overloads
• Utilised in automation systems to safeguard machinery
• Can be deployed in industrial environments for circuit protection
What current rating does this device support for standard usage?
It supports a current rating of 13 A, making it suitable for various standard electrical applications.
How does the tripping characteristic affect its operation?
The Type C characteristics enable it to trip under moderate overload conditions, providing an Ideal response for circuits with inductive loads.
What type of mounting is compatible with this circuit breaker?
This circuit breaker is designed for DIN rail mounting, which simplifies installation and makes maintenance straightforward.
What are the advantages of screw terminals in this product?
Screw terminals provide a secure connection, reducing the risk of loose contacts that may lead to circuit failures or hazards.
Can it be used in outdoor applications?
It is primarily intended for indoor use within electrical panels and enclosures, as outdoor environments may expose it to conditions that could compromise its performance.
