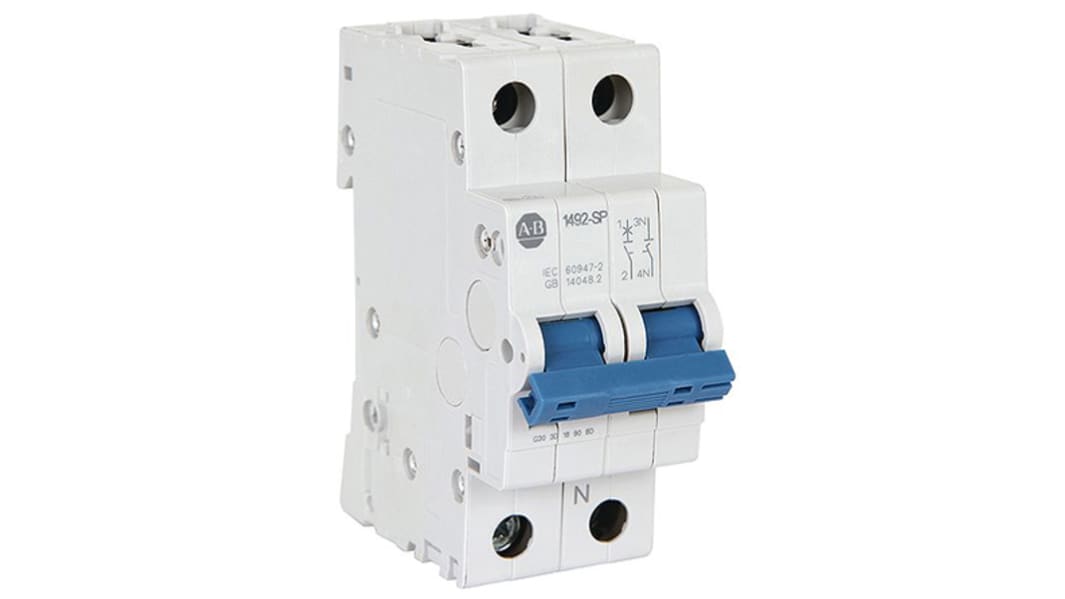

Allen Bradley 1492 1492SPM MCB Mini Circuit Breaker2P, 24A Curve B, 277V AC, 96V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 125-1436
- Mfr. Part No.:
- 1492-SPM2B250
- Brand:
- Allen Bradley
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-1436
- Mfr. Part No.:
- 1492-SPM2B250
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 2 | |
Current Rating | 24A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 277 V, 480V | |
Rated DC Voltage | 96V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492 | |
Series | 1492SPM | |
Circuit Breaker Type | MCB | |
Width | 75mm | |
Length | 35mm | |
Depth | 88mm | |
Terminal Contact Type | Screw | |
Priced to Clear | Yes | |
Tripping Mechanism | Thermal-Magnetic | |
Break Time | Instantaneous | |
Reset Actuator Type | Toggle Switch | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 2 | ||
Current Rating 24A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 277 V, 480V | ||
Rated DC Voltage 96V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492 | ||
Series 1492SPM | ||
Circuit Breaker Type MCB | ||
Width 75mm | ||
Length 35mm | ||
Depth 88mm | ||
Terminal Contact Type Screw | ||
Priced to Clear Yes | ||
Tripping Mechanism Thermal-Magnetic | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Application General Purpose | ||
- COO (Country of Origin):
- DE
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B
The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.
The 1492-SPM series of MCBs are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCBs can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.
A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCBs are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.
Features and Benefits:
• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley MCB, 24A Current Rating, 2 Poles - 1492-SPM2B250
For the protection of your electrical circuit, try this Allen Bradley MCB from Rockwell Automation. Its type B tripping characteristics make it suitable to use with resistive or slightly inductive loads and equipment, like transformers, power supplies and control instrumentation. The miniature breaker features a robust nylon housing that resists corrosion and wear, so it's suitable for use in demanding industrial settings. It's insensitive to shock and vibration, which helps to reduce the chance of nuisance tripping and unnecessary downtime. For easy installation and removal, this device quickly snaps on or off your DIN rail.
• Miniature size of 35 (L) x 75 (W) x 88mm (D) to maximise packing efficiency on your circuit board
• Indicator window, so you can clearly and conveniently see its contact state
• Minimal need for maintenance, thanks to screw terminals that hold wires securely
• IP20-rated housing that's finger-proof and protected against objects larger than 12mm
• Indicator window, so you can clearly and conveniently see its contact state
• Minimal need for maintenance, thanks to screw terminals that hold wires securely
• IP20-rated housing that's finger-proof and protected against objects larger than 12mm
Standards and Certifications
• UL
• IEC
• CSA
• GB
• EN
• IVD
• IEC
• CSA
• GB
• EN
• IVD
Is this breaker compatible with AC or DC voltage?
For your convenience, this miniature circuit breaker is compatible with both AC and DC voltages.
