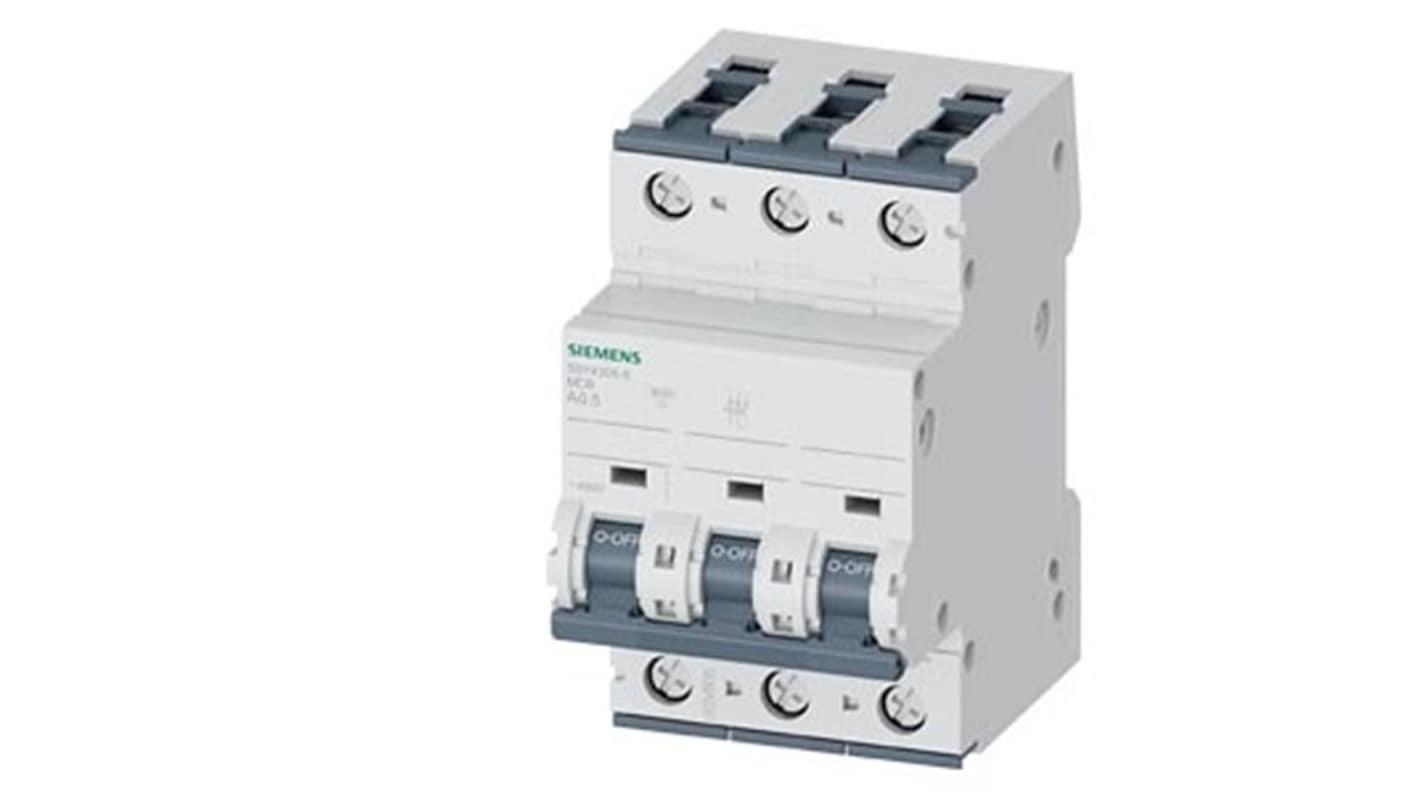

Siemens SENTRON 5SY4 Miniature Circuit Breaker, 3-Pole, 500 mA, Type A, 400 V ac AC, 72 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 610-300
- Mfr. Part No.:
- 5SY4305-5
- Brand:
- Siemens
Subtotal (1 unit)*
£124.47
(exc. VAT)
£149.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £124.47 |
*price indicative
- RS Stock No.:
- 610-300
- Mfr. Part No.:
- 5SY4305-5
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 500 mA | |
| Tripping Characteristics | Type A | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 72 V | |
| Breaking Capacity | 10kA | |
| Mount Type | DIN Rail | |
| Range | SENTRON | |
| Series | 5SY4 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Height | 90mm | |
| Depth | 76mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 | |
| Width | 54 mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 500 mA | ||
Tripping Characteristics Type A | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 72 V | ||
Breaking Capacity 10kA | ||
Mount Type DIN Rail | ||
Range SENTRON | ||
Series 5SY4 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Height 90mm | ||
Depth 76mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2/UL1077 | ||
Width 54 mm | ||
- COO (Country of Origin):
- DE
The Siemens Miniature Circuit Breaker is engineered for reliability and safety, designed to operate at a voltage of 400V with a tripping characteristic class A. With three poles, it effectively serves as a protective device against overloads and short circuits while enhancing operational efficiency. The robust mechanical service life ensures durability, making it ideal for both industrial and infrastructural applications. Its compact design allows for versatile installation, fitting seamlessly into various environments while complying with stringent international standards. The perfect blend of innovative engineering and practical functionality positions this product as a trusted choice for users seeking enhanced protection for electrical systems.
Touch protection feature ensures user safety during operation
Multiple conductor configurations are enabled for enhanced flexibility
In-built halogen-free materials promote environmental sustainability
Sealable design adds an extra layer of security
Mechanical design facilitates easy installation on DIN rails
Wide operational temperature range supports diverse application settings
Global warming potential values showcase the product’s eco-friendly credentials
