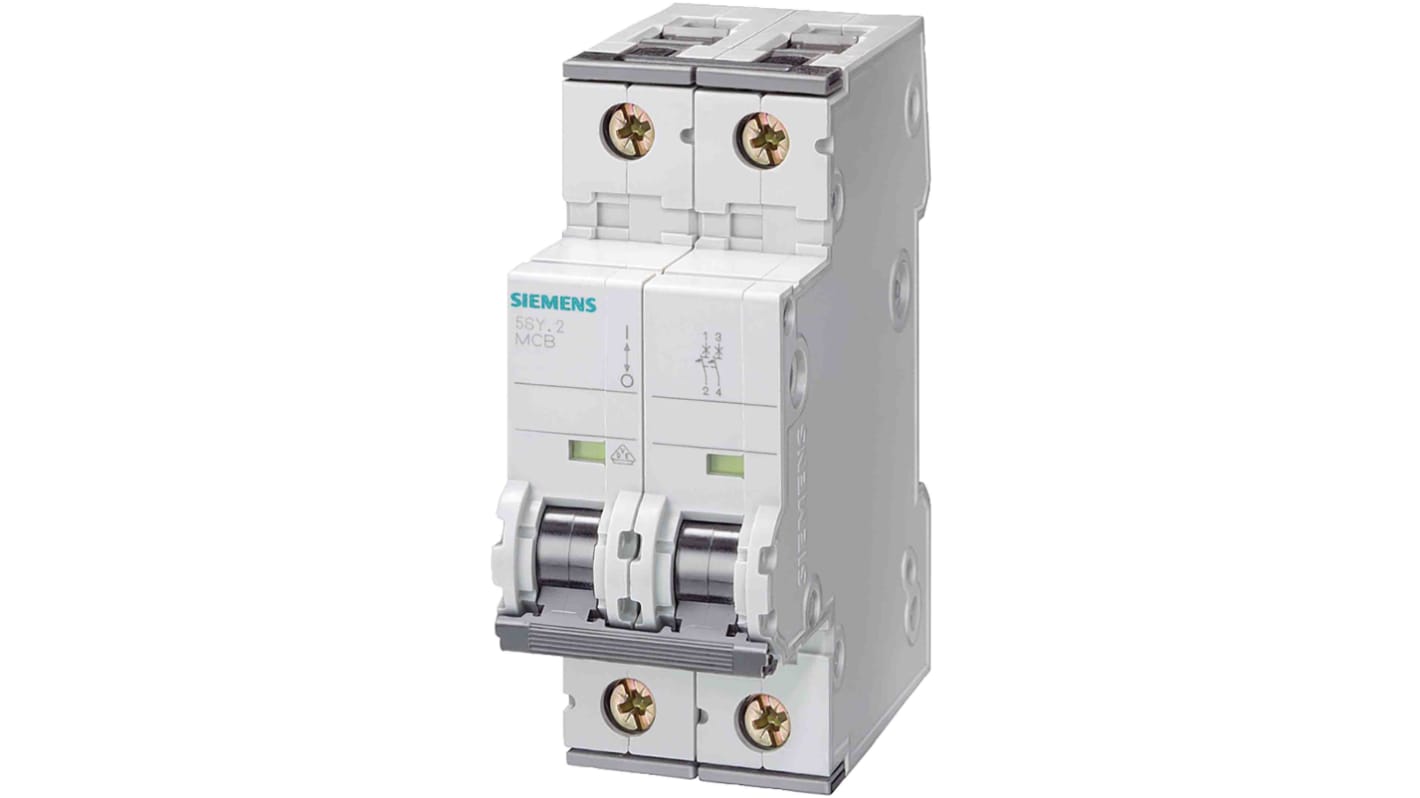

Siemens SENTRON 5SY4 MCB, 2P, 500mA Curve D, 400V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 209-6589
- Mfr. Part No.:
- 5SY4205-8
- Brand:
- Siemens
Available to back order for despatch 02/08/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£66.23
(exc. VAT)
£79.48
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £66.23 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-6589
- Mfr. Part No.:
- 5SY4205-8
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The miniature circuit breaker provides voltage of 400 V with 2-pole configuration. In the event of an overload or short-circuit, circuit breakers safely cut off the connected circuit and reliably protect electrical installations and equipment from damage. The Siemens miniature circuit breaker is the fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices. It is a simple distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Current switching capacity 10kA
AC operating current 0.5 A
AC operating current 0.5 A
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 2P |
| Current Rating | 500mA |
| Tripping Characteristics | Type D |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Range | SENTRON |
| Series | 5SY4 |
| Circuit Breaker Type | MCB |
| Length | 36mm |
| Width | 76mm |
| Mounting Style | DIN Rail Mount |
| Depth | 90mm |
| Model Number | 5SY4205-8 |
| Better World Claim | Extended product life |
| Better World Product | Yes |
| Terminal Contact Type | Screw |
