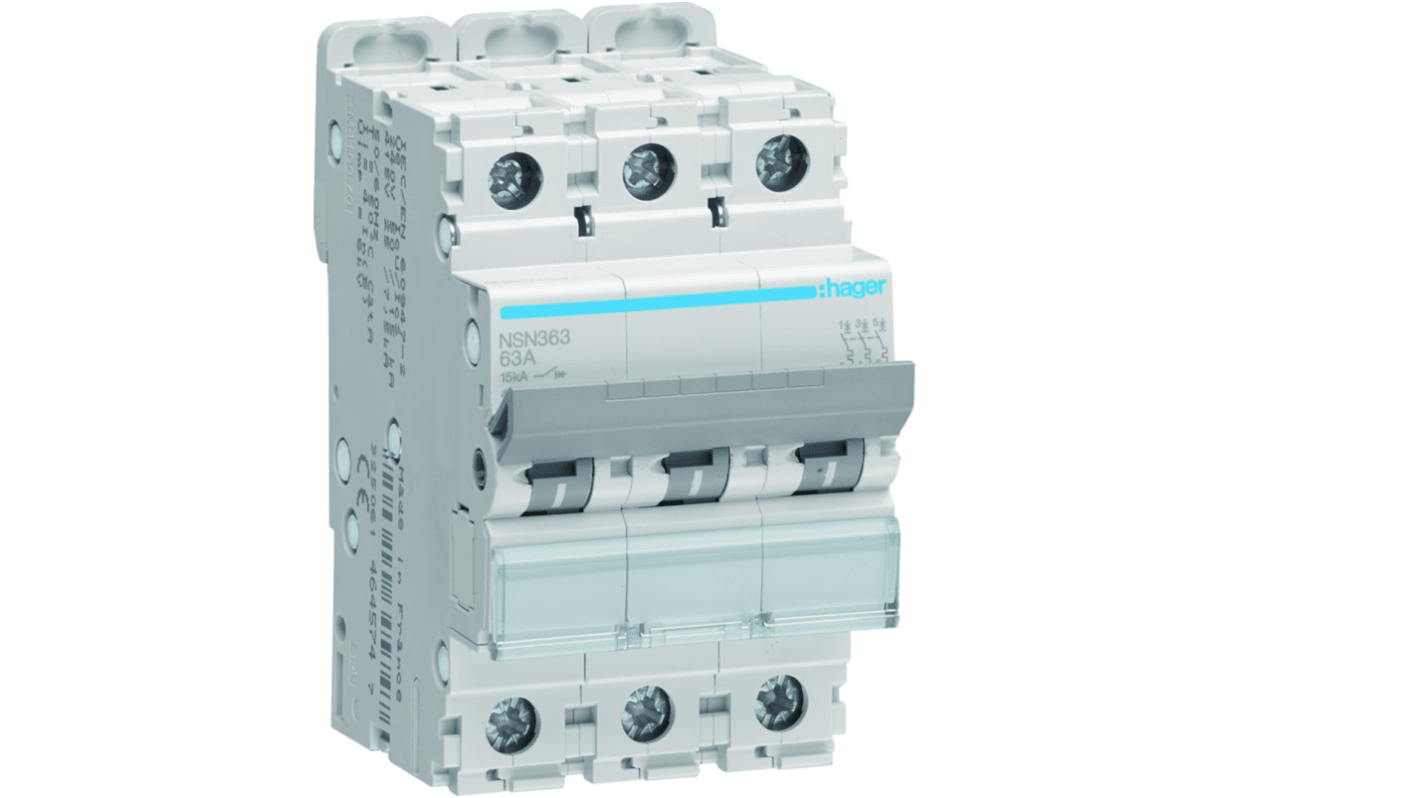

Hager NSN NSN Miniature Circuit Breaker, 3-Pole, 63 A, Type D, 415 V ac AC, 15 kA Breaking Capacity
- RS Stock No.:
- 597-961
- Mfr. Part No.:
- NSN363
- Brand:
- Hager
Subtotal (1 unit)*
£313.74
(exc. VAT)
£376.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £313.74 |
*price indicative
- RS Stock No.:
- 597-961
- Mfr. Part No.:
- NSN363
- Brand:
- Hager
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hager | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 63 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 415 V ac | |
| Breaking Capacity | 15kA | |
| Range | NSN | |
| Series | NSN | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Depth | 70mm | |
| Height | 83mm | |
| Standards/Approvals | IEC 60947-2 | |
| Width | 52.5 mm | |
| Select all | ||
|---|---|---|
Brand Hager | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 63 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 415 V ac | ||
Breaking Capacity 15kA | ||
Range NSN | ||
Series NSN | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Depth 70mm | ||
Height 83mm | ||
Standards/Approvals IEC 60947-2 | ||
Width 52.5 mm | ||
- COO (Country of Origin):
- PL
The Hager 3-pole miniature circuit breaker (MCB) designed for electrical protection and energy distribution. It features a rated operational voltage of 415V AC and a rated current of 63A. With a short-circuit breaking capacity of 15kA, it ensures reliable protection against electrical faults.
No of modules 3
Compact modular design
D Curve Tripping
IP20 protection
