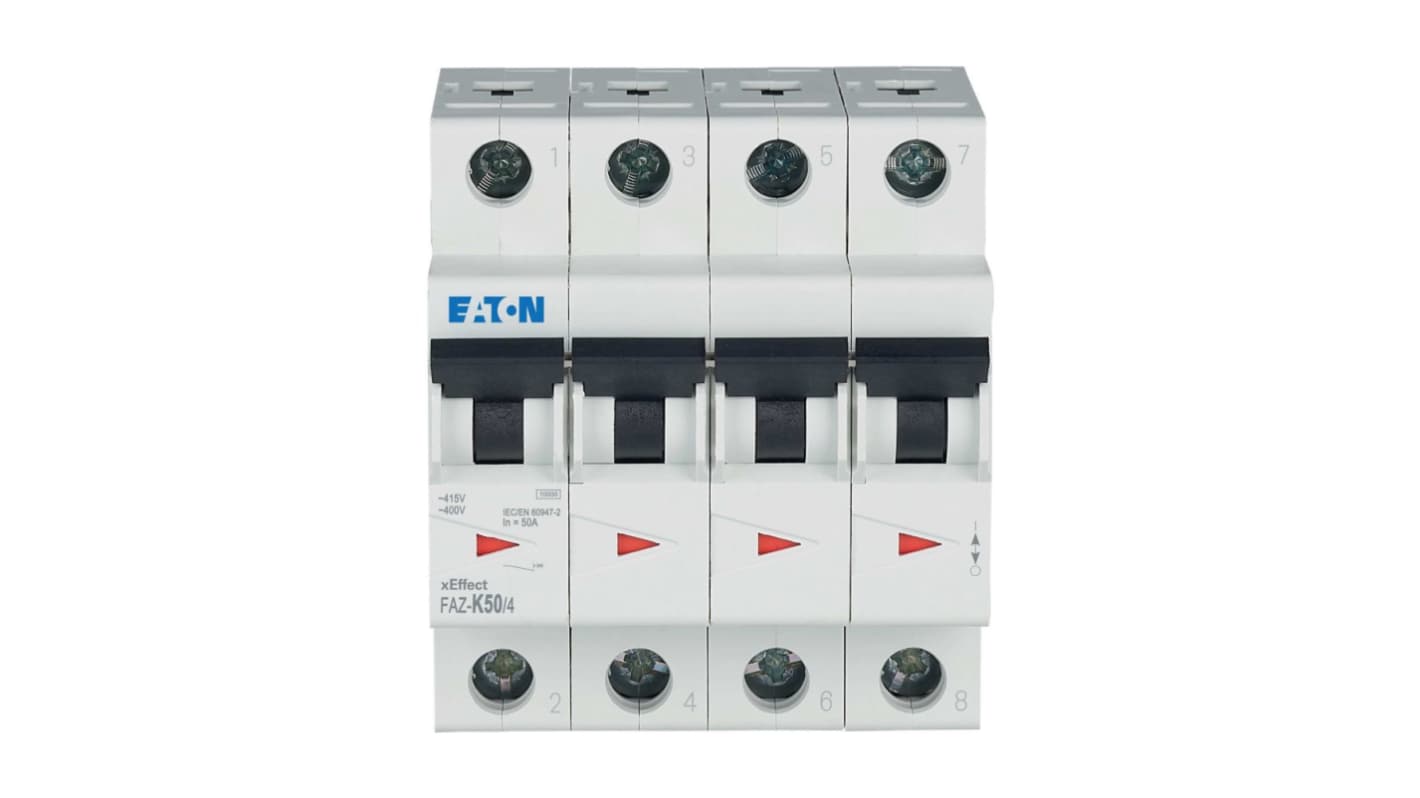

Eaton xEffect FAZ MCB, 4P, 50A Curve K, 400V AC, 60V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 259-143
- Mfr. Part No.:
- 279104 FAZ-K50/4
- Brand:
- Eaton
Subtotal (1 unit)*
£275.51
(exc. VAT)
£330.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £275.51 |
*price indicative
- RS Stock No.:
- 259-143
- Mfr. Part No.:
- 279104 FAZ-K50/4
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 4 | |
Current Rating | 50A | |
Tripping Characteristics | Type K | |
Rated AC Voltage | 400V | |
Rated DC Voltage | 60V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Series | FAZ | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Current Rating 50A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 60V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Series FAZ | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton miniature circuit breaker from Eaton Moeller series xEffect is designed to ensure robust performance and safety in various industrial and commercial applications. This four pole MCB is rated at 50 A and features a K characteristic curve, making it an ideal choice for efficient current management. Engineered to meet strict compliance standards, this device offers exceptional reliability and protection against overloads and short circuits. The sleek design, coupled with user friendly installation options, enhances its usability in diverse settings, providing peace of mind for both panel builders and operators. Its certifications ensure it adheres to industry benchmarks, making it a trusted choice for those needing effective circuit protection.
Four pole design allows for flexible application in diverse configurations
Rated for a maximum operational capacity of 50 A to handle heavy loads efficiently
K characteristic curve optimises protection for motors and inductive loads
Designed to adhere to IEC/EN standards for enhanced reliability
User friendly installation on top hat rails simplifies integration into existing systems
IP40 rating ensures adequate protection against dust and solid objects
Temperature resistance capabilities support environmental adaptability
Finger and hand touch safe terminals promote safe handling during installation and maintenance
Built in depth of 705 mm fits easily into compact panel assemblies
Rated for a maximum operational capacity of 50 A to handle heavy loads efficiently
K characteristic curve optimises protection for motors and inductive loads
Designed to adhere to IEC/EN standards for enhanced reliability
User friendly installation on top hat rails simplifies integration into existing systems
IP40 rating ensures adequate protection against dust and solid objects
Temperature resistance capabilities support environmental adaptability
Finger and hand touch safe terminals promote safe handling during installation and maintenance
Built in depth of 705 mm fits easily into compact panel assemblies
