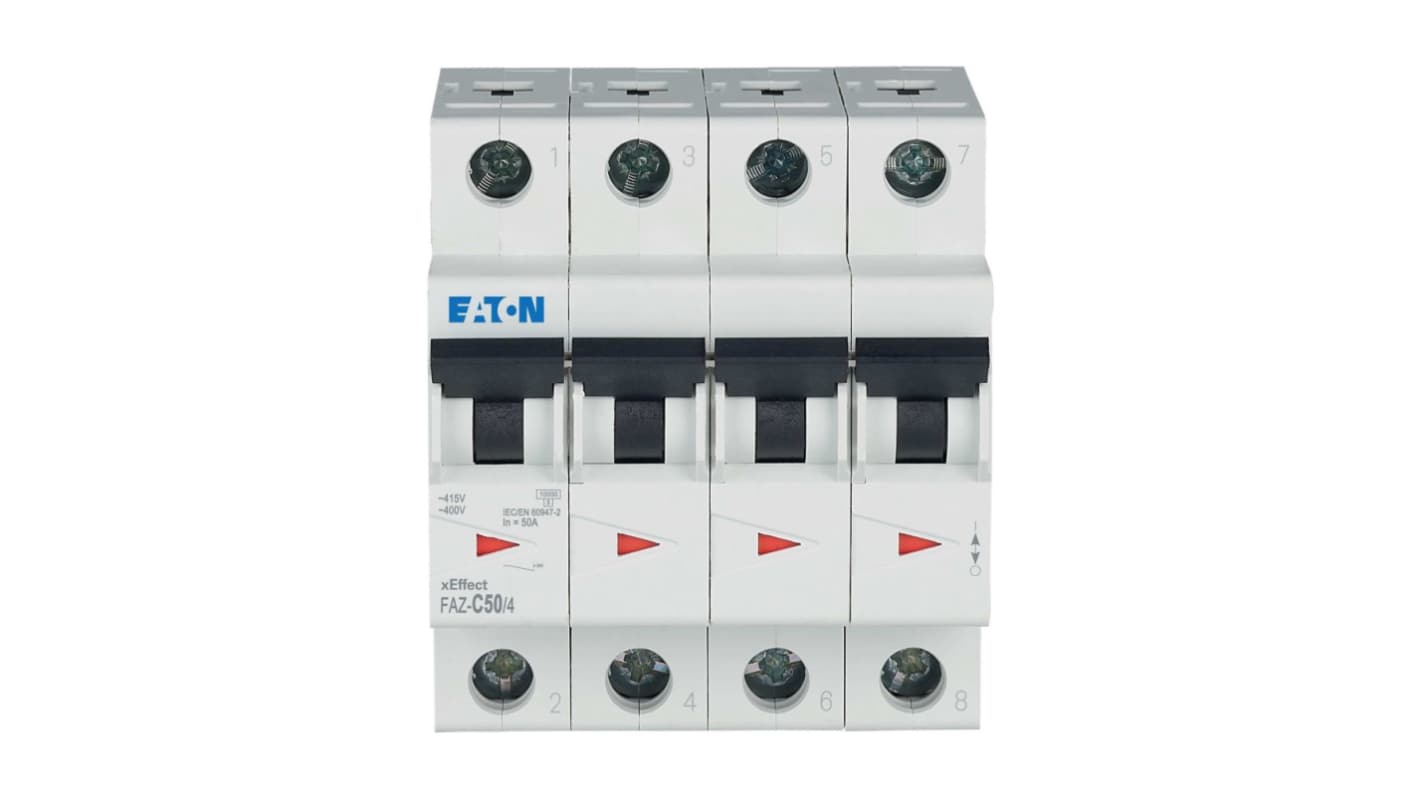

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 50 A, Type C, 400 V ac AC, 60 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-031
- Mfr. Part No.:
- 279066 FAZ-C50/4
- Brand:
- Eaton
Subtotal (1 unit)*
£329.64
(exc. VAT)
£395.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £329.64 |
*price indicative
- RS Stock No.:
- 258-031
- Mfr. Part No.:
- 279066 FAZ-C50/4
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 4 | |
| Current Rating | 50 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 60 V | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP20, IP40 | |
| Width | 72 mm | |
| Standards/Approvals | EN45545-2, IEC 61373, IEC/EN 60947-2, IEC/EN 60898 | |
| Depth | 80mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 4 | ||
Current Rating 50 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 60 V | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP20, IP40 | ||
Width 72 mm | ||
Standards/Approvals EN45545-2, IEC 61373, IEC/EN 60947-2, IEC/EN 60898 | ||
Depth 80mm | ||
Height 75.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is engineered to deliver robust and reliable protection in complex electrical systems. Featuring a four pole design, this device is adept at managing electrical faults while ensuring uninterrupted power flow. Its tripping characteristic C makes it ideal for applications with moderate inrush currents.
Ensures user safety with finger and hand touch protection
Compatible with standard top hat rail mounting for easy installation
Constructed to meet various international certifications and standards
Facilitates straightforward maintenance with accessible terminals
Supports concurrent switching of neutral for enhanced functionality
Built for longevity with a lifespan of up to 10000 operations
