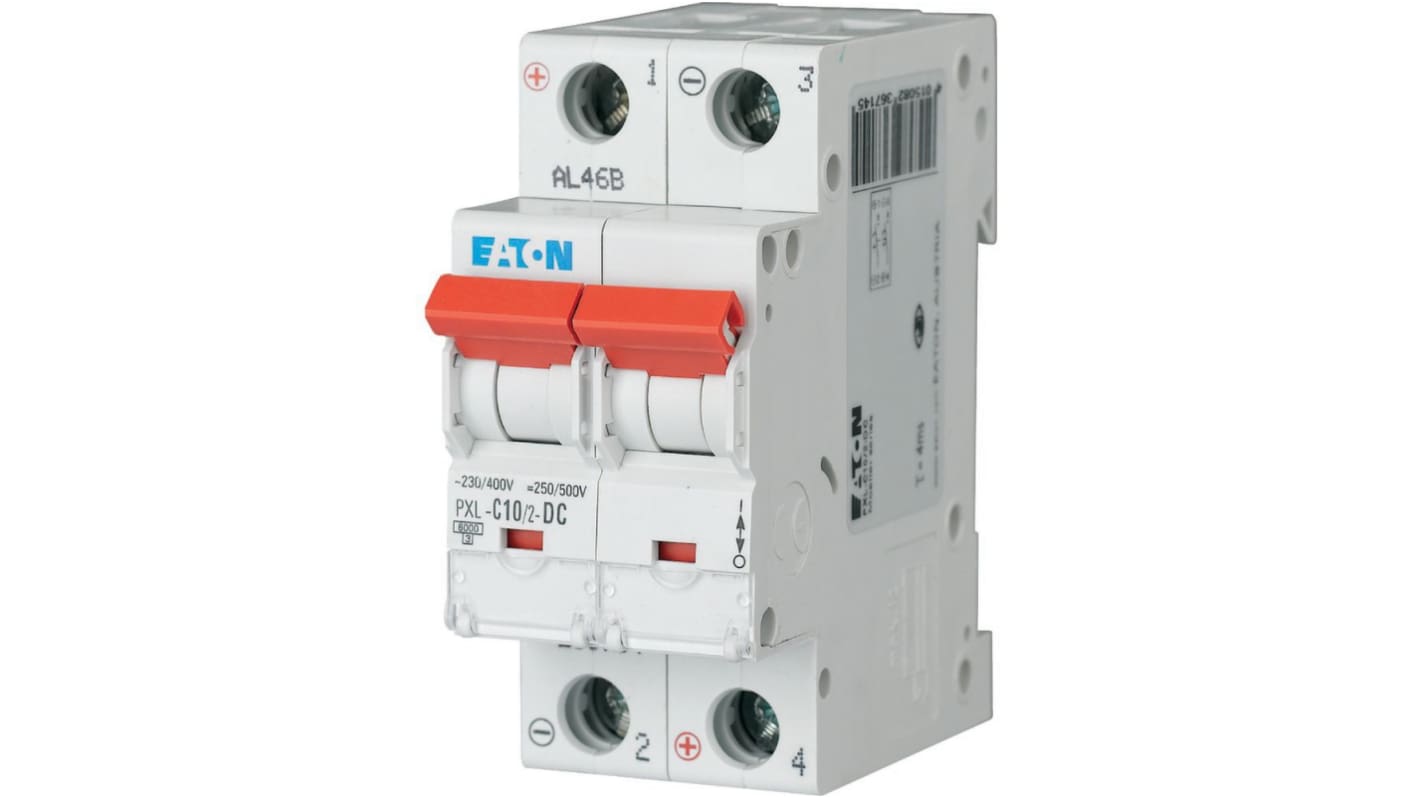

Eaton xPole - PXL PXL Miniature Circuit Breaker, 2-Pole, 10 A, Type C, 440 V ac AC, 48 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 255-185
- Mfr. Part No.:
- 236714 PXL-C10/2-DC
- Brand:
- Eaton
Subtotal (1 unit)*
£148.26
(exc. VAT)
£177.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £148.26 |
*price indicative
- RS Stock No.:
- 255-185
- Mfr. Part No.:
- 236714 PXL-C10/2-DC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 10 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440 V ac | |
| Rated DC Voltage | 48 V | |
| Breaking Capacity | 10kA | |
| Range | xPole - PXL | |
| Series | PXL | |
| IP Rating | IP20 | |
| Height | 75mm | |
| Width | 35 mm | |
| Depth | 70.5mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 10 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440 V ac | ||
Rated DC Voltage 48 V | ||
Breaking Capacity 10kA | ||
Range xPole - PXL | ||
Series PXL | ||
IP Rating IP20 | ||
Height 75mm | ||
Width 35 mm | ||
Depth 70.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- RO
The Eaton Moeller series xPole - PXL MCB is an innovative miniature circuit breaker designed for reliability and efficiency in residential and commercial applications. With a compact design and robust features, this device offers excellent protection against overloads and short circuits. It operates on a two-pole system, ensuring safety while maintaining a minimal footprint, making it ideal for confined spaces. The advanced tripping characteristic facilitates optimal performance under varying conditions, providing peace of mind for users. Built for durability, this circuit breaker showcases high-quality engineering, making it a dependable choice for electrical installations. Additionally, it adheres to international compliance standards, ensuring it meets the demands of modern electrical systems seamlessly.
Compact design optimising space in electrical installations
Two-pole system providing effective protection for circuits
Robust connection options for both multi-wired and solid-core conductors
Tripping characteristic C tailored for diverse applications
Degree of protection rated IP20 offering effective resistance to dust ingress
Heat dissipation efficiency contributing to long-term reliability
Versatile frequency rating accommodating varied operational needs
Current limiting class 3 enhancing safety during fault conditions
Environmentally friendly with RoHS compliance reassuring eco-conscious users
