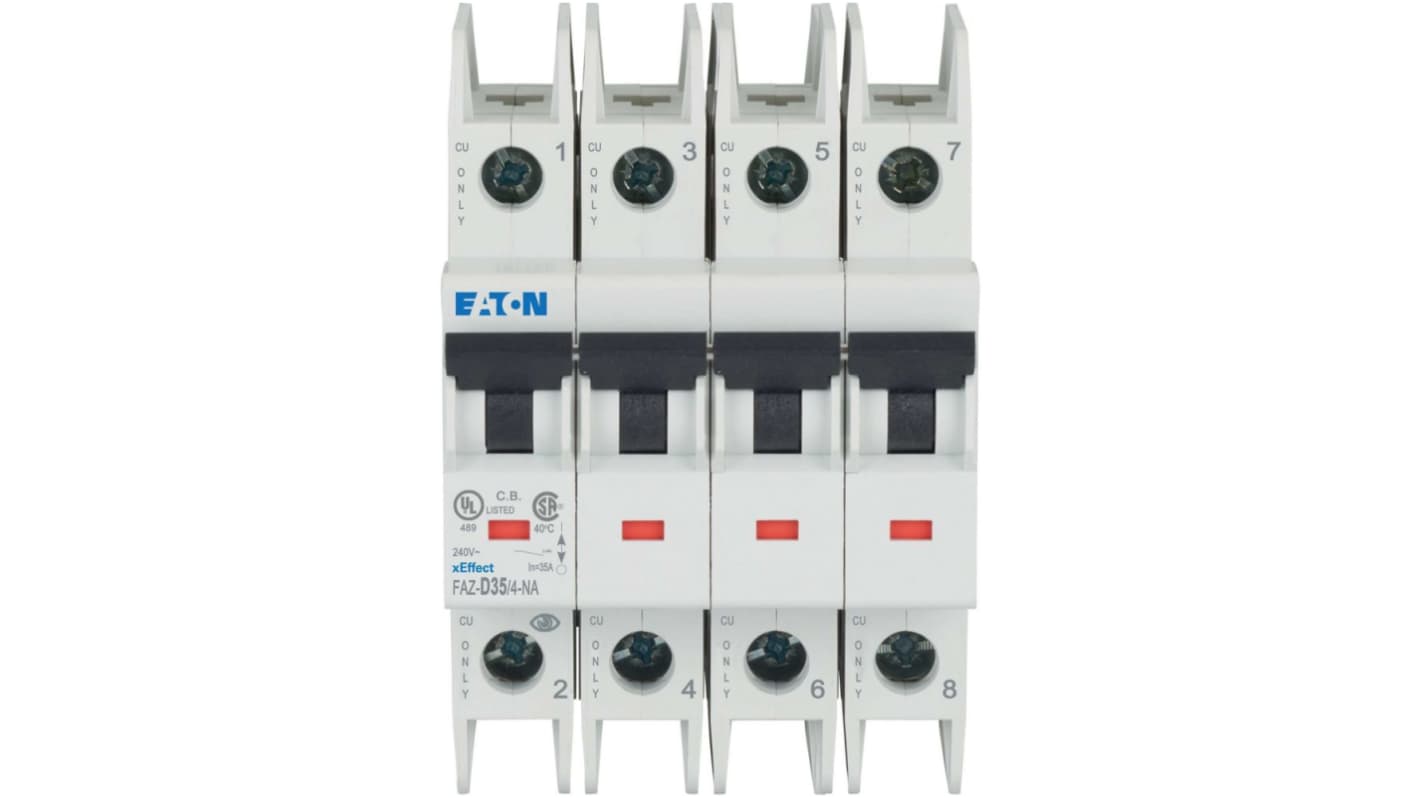

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 35 A, Type D, 240 V ac AC, 60 V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 240-883
- Mfr. Part No.:
- 190842 FAZ-D35/4-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£282.15
(exc. VAT)
£338.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £282.15 |
*price indicative
- RS Stock No.:
- 240-883
- Mfr. Part No.:
- 190842 FAZ-D35/4-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 4 | |
| Current Rating | 35 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240 V ac | |
| Rated DC Voltage | 60 V | |
| Breaking Capacity | 15kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20, IP40 | |
| Depth | 105mm | |
| Standards/Approvals | suitable as, CSAC. . 509, rth America (UL,CSA ), BCPD, CSA (File . 0445), IECEN 60947, UL (File . E519), CSA (Class . 1401), UL 489, IEC 60947, rth America, CE, Specially designed for, IEC 617, RoHS, UL (Category Control,Number DIVQ), CSA C. . 5, EN45545 | |
| Width | 70.8 mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 4 | ||
Current Rating 35 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240 V ac | ||
Rated DC Voltage 60 V | ||
Breaking Capacity 15kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20, IP40 | ||
Depth 105mm | ||
Standards/Approvals suitable as, CSAC. . 509, rth America (UL,CSA ), BCPD, CSA (File . 0445), IECEN 60947, UL (File . E519), CSA (Class . 1401), UL 489, IEC 60947, rth America, CE, Specially designed for, IEC 617, RoHS, UL (Category Control,Number DIVQ), CSA C. . 5, EN45545 | ||
Width 70.8 mm | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series designed to meet the unique demands of industrial and commercial environments. This miniature circuit breaker provides dependable protection with its robust, four pole configuration and D characteristic, ensuring rapid response in fault conditions. Ideal for feeder and branch circuits, it operates seamlessly across a voltage range tailored for North American applications. With a compact footprint, this device facilitates easy installation on standard top hat rails, while its IP20 degree of protection ensures safety against dust and finger access.
Compact dimensions allow for efficient use of space in panels
Top hat rail mounting simplifies installation and maintenance
IP20 rating guarantees safety against accidental contact
Complies with multiple international standards for widespread acceptance
Durable construction provides longevity and reliability in operation
