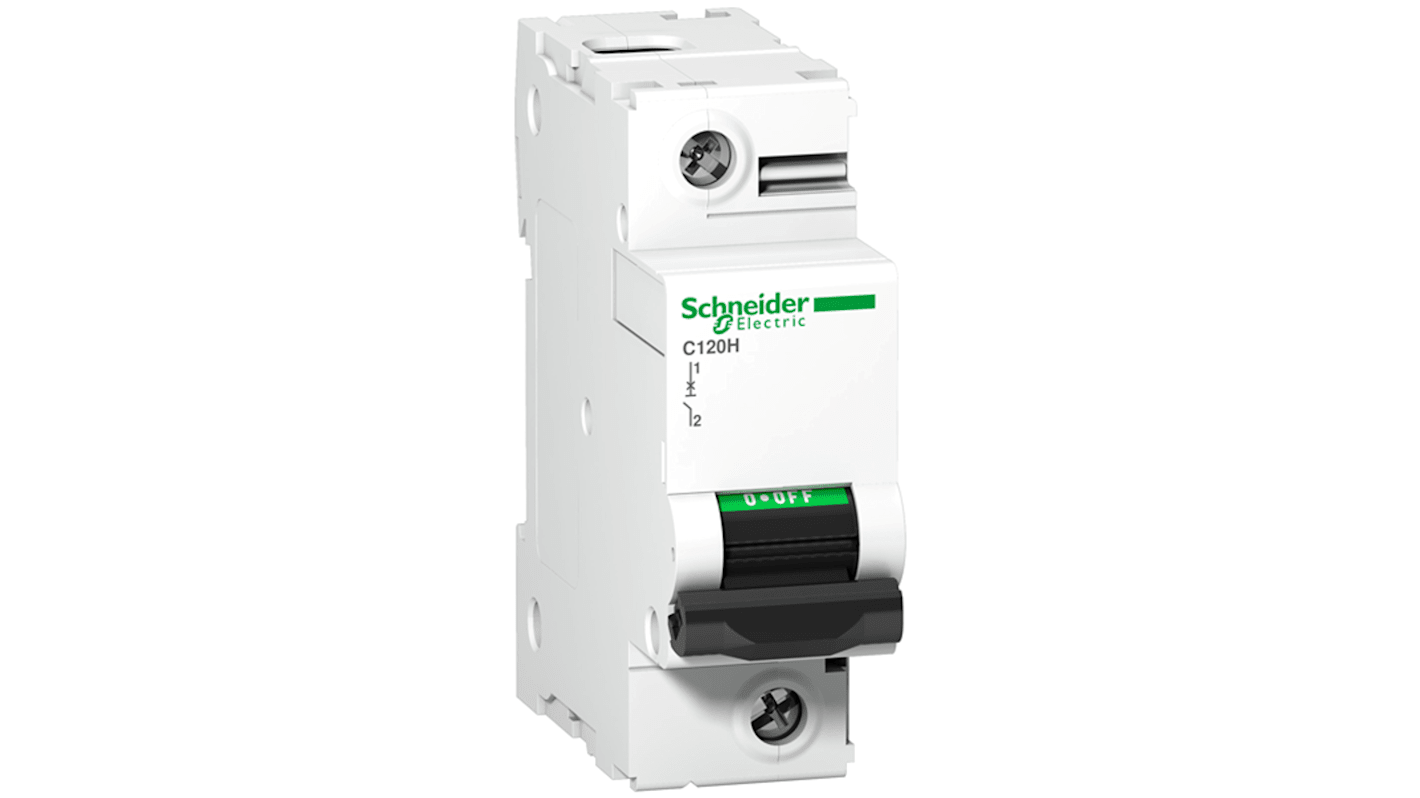

Schneider Electric Acti9 A9N1 Miniature Circuit Breaker, 1-Pole, 125A, Type D, 230V ac AC, 144 V dc DC, 30 kA Breaking
- RS Stock No.:
- 211-961
- Mfr. Part No.:
- A9N18492
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£92.73
(exc. VAT)
£111.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £92.73 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-961
- Mfr. Part No.:
- A9N18492
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 125A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 230V ac | |
| Rated DC Voltage | 144V dc | |
| Breaking Capacity | 30kA | |
| Mount Type | Clip-on | |
| Range | Acti9 | |
| Series | A9N1 | |
| Terminal Type | Tunnel | |
| Standards/Approvals | EN/IEC 60947-2, EN/IEC 60898-1 | |
| Depth | 73mm | |
| Height | 81mm | |
| Width | 27mm | |
| Better World Product | Yes | |
| Better World Verification | Byggvarubedömningen | |
| Reset Actuator Type | Toggle | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 125A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230V ac | ||
Rated DC Voltage 144V dc | ||
Breaking Capacity 30kA | ||
Mount Type Clip-on | ||
Range Acti9 | ||
Series A9N1 | ||
Terminal Type Tunnel | ||
Standards/Approvals EN/IEC 60947-2, EN/IEC 60898-1 | ||
Depth 73mm | ||
Height 81mm | ||
Width 27mm | ||
Better World Product Yes | ||
Better World Verification Byggvarubedömningen | ||
Reset Actuator Type Toggle | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric Miniature Circuit Breaker is suitable for AC networks, offering reliable overcurrent protection with thermal-magnetic trip unit technology. It is primarily used for distribution applications. The MCB features a contact position indicator for easy status monitoring and uses a toggle control type. It has a rated insulation voltage of 500 V AC at 50/60 Hz, as per EN 60947-2 standards. The device operates within an ambient temperature range of -30 to 60°C, making it suitable for a wide range of environments.
DIN rail mounting
20000 cycles of mechanical durability
IP20 rated conforming to IEC 60529
