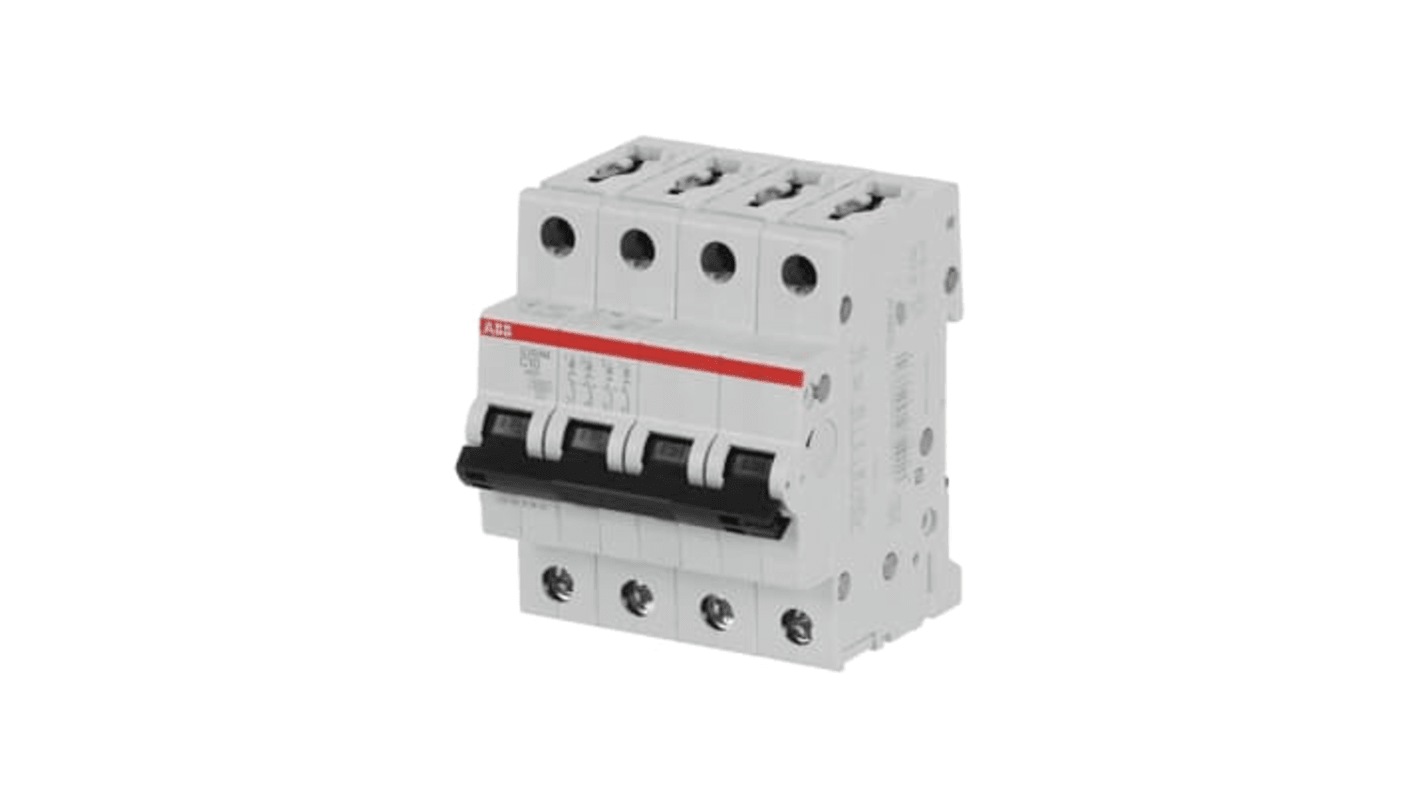

ABB System Pro M Compact S200M MCB, 4P, 10A Curve C, 400V AC, 125V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 202-970
- Mfr. Part No.:
- 2CDS274001R0104
- Brand:
- ABB
Subtotal (1 unit)*
£131.63
(exc. VAT)
£157.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £131.63 |
*price indicative
- RS Stock No.:
- 202-970
- Mfr. Part No.:
- 2CDS274001R0104
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 4 | |
Current Rating | 10A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 400V | |
Rated DC Voltage | 125V | |
Breaking Capacity at Maximum Voltage Rating | 15 kA | |
Range | System Pro M Compact | |
Series | S200M | |
Circuit Breaker Type | MCB | |
Width | 70mm | |
Length | 69mm | |
Mounting Style | DIN Rail | |
Depth | 69mm | |
Model Number | S204M-C10 | |
Terminal Contact Type | Screw | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 125V | ||
Breaking Capacity at Maximum Voltage Rating 15 kA | ||
Range System Pro M Compact | ||
Series S200M | ||
Circuit Breaker Type MCB | ||
Width 70mm | ||
Length 69mm | ||
Mounting Style DIN Rail | ||
Depth 69mm | ||
Model Number S204M-C10 | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- DE
ABB S200M Series MCB, 10A Current Rating, 4 Poles - 2CDS274001R0104
This miniature circuit breaker (MCB) is a 4-pole device designed to perform efficiently at a current rating of 10A. It features a compact form factor with dimensions of 70mm in width, 69mm in depth, and 69mm in length. The S200M circuit breaker range is renowned for its reliability and compliance with international standards, making it suitable for various electrical applications.
Features & Benefits
• Current limiting design for effective overload protection
• Dual tripping mechanisms for enhanced safety options
• High breaking capacity of 15 kA at maximum voltage
• Designed for easy installation on DIN rail
• Compact size saves valuable installation space
• Complies with IEC and EN standards for robust applications
• Dual tripping mechanisms for enhanced safety options
• High breaking capacity of 15 kA at maximum voltage
• Designed for easy installation on DIN rail
• Compact size saves valuable installation space
• Complies with IEC and EN standards for robust applications
Applications
• Used for circuit protection in residential electrical installations
• Ideal for commercial building electrical systems
• Applicable in industrial machinery and automation setups
• Suitable for infrastructure where multiple poles are required
• Ideal for commercial building electrical systems
• Applicable in industrial machinery and automation setups
• Suitable for infrastructure where multiple poles are required
What types of tripping mechanisms are integrated into this device?
The MCB features both a delayed thermal tripping mechanism for overload conditions and an electromechanical mechanism for short circuit situations, offering comprehensive protection across various scenarios.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage meets various needs, supporting up to 400V AC and ensuring reliability in both AC and DC systems.
How does the breaking capacity contribute to safety?
The breaking capacity of 15 kA at maximum voltage allows for effective interruption of high fault currents, enhancing the overall safety of the electrical system.
Can it be mounted easily in existing setups?
Yes, it is designed for straightforward installation on standard DIN rails, allowing for quick upgrades or replacements in current installations.
