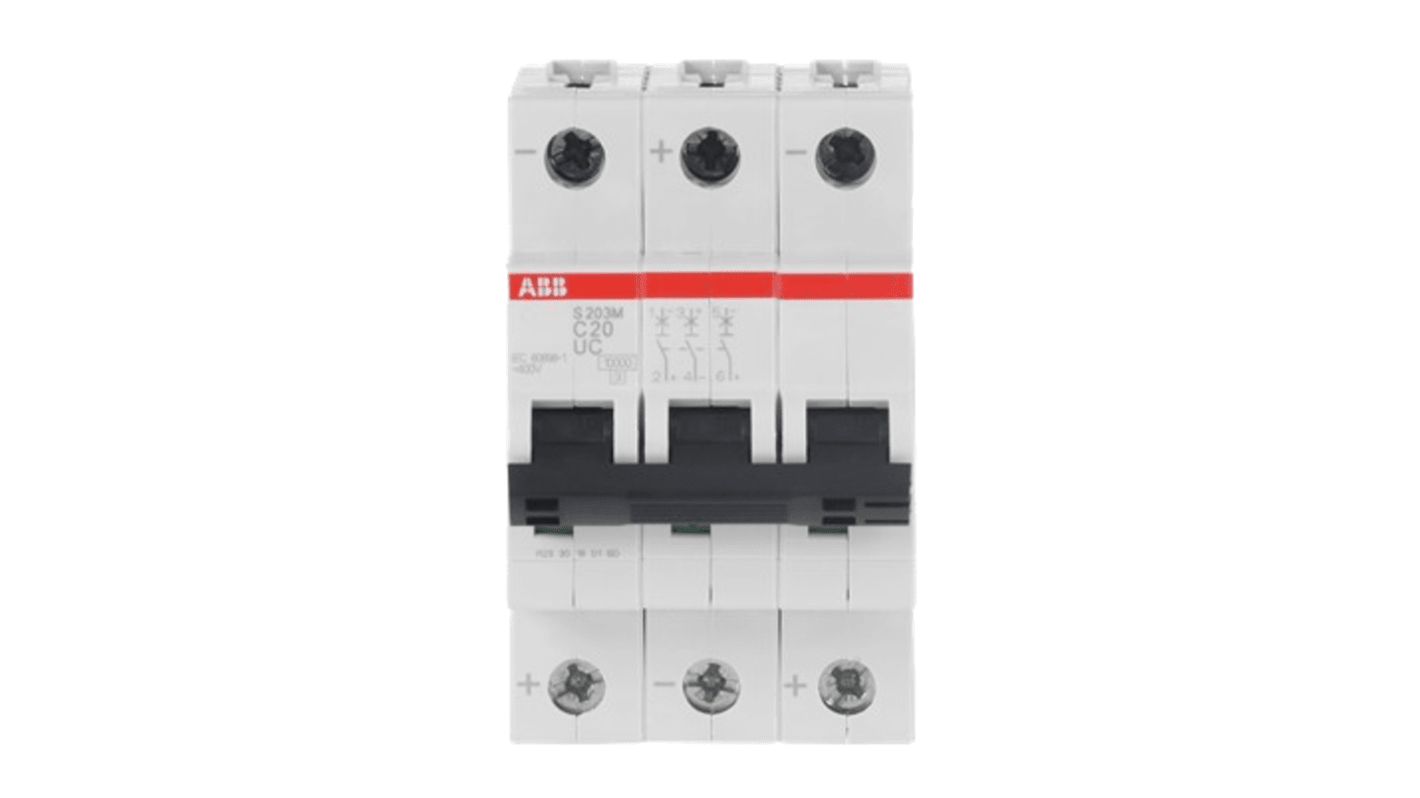

ABB System Pro M Compact S200 M UC MCB, 3P, 20A Curve C, 400V AC, 440V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£271.13

(exc. VAT)

£325.36

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£271.13

*price indicative

RS Stock No.:
202-939
Mfr. Part No.:
2CDS273061R0204
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

3

Current Rating

20A

Tripping Characteristics

Type C

Rated AC Voltage

400V

Rated DC Voltage

440V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

System Pro M Compact

Series

S200 M UC

Circuit Breaker Type

MCB

Width

52.5mm

Length

69mm

Mounting Style

DIN Rail

Depth

69mm

Model Number

S203M-C20UC

Terminal Contact Type

Screw

COO (Country of Origin):
DE

ABB S200 M UC Series MCB, 20A Current Rating, 10kA Breaking Capacity - 2CDS273061R0204


This miniature circuit breaker is designed for both AC and DC applications. With a current rating of 20A and a 3-pole configuration, it meets diverse electrical protection needs. The product measures 52.5mm in width, 69mm in depth, and has been designed for DIN rail mounting, ensuring ease of installation in various setups.

Features & Benefits


• Offers a 10 kA breaking capacity for reliable protection
• Type C tripping characteristics suitable for inductive loads
• Compatible with System Pro M Compact accessories for flexibility
• High-performance capabilities adhere to global safety standards
• Enhanced durability with a wide operational temperature range
• Clear contact position indication aids in quick status checks

Applications


• Used for protecting circuits in residential electrical systems
• Ideal for industrial automation requiring robust protection
• Suitable for installations needing reliable power distribution solutions
• Utilised in renewable energy settings with DC voltage demands
• Perfect for commercial environments needing compliance with safety regulations

What is the significance of the 10 kA breaking capacity in this device?


The 10 kA breaking capacity ensures that it can effectively interrupt high fault currents without sustaining damage, thereby contributing to the safety and integrity of the electrical system.

How does the type C tripping characteristic benefit inductive loads?


Type C characteristics enable the device to withstand short-term inrush currents typical in inductive loads, reducing unwanted tripping while protecting the circuit effectively during normal operation.

What resources are available for additional information on installation?


Comprehensive installation instructions and manuals are included with the product, detailing preparation and safety guidelines for proper setup and use.

What is the ambient temperature range for optimal performance?


The device operates effectively within a temperature range of -25°C to +55°C, allowing for versatility in various environments.

How does the compatibility with System Pro M Compact accessories enhance functionality?


This compatibility allows users to easily integrate additional accessories, promoting convenience and ensuring adaptability in different electrical configurations.
