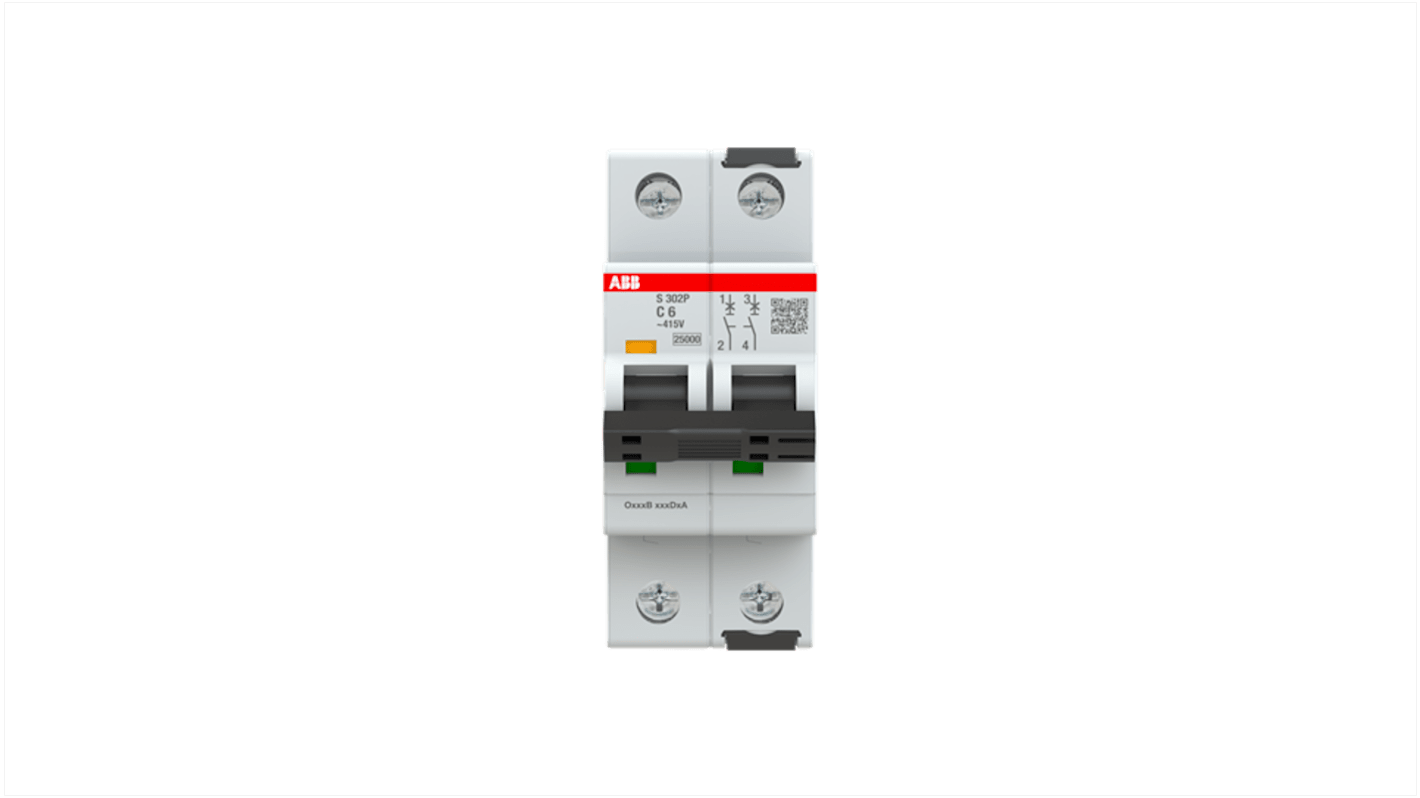

ABB S302 MCB, 2P, 6A Curve C, 415V AC, 125V DC, 100 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£67.88

(exc. VAT)

£81.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
  • Plus 3 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£67.88

*price indicative

RS Stock No.:
200-903
Mfr. Part No.:
2CDS382001R0064
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

2

Current Rating

6A

Tripping Characteristics

Type C

Rated AC Voltage

415V

Rated DC Voltage

125V

Breaking Capacity at Maximum Voltage Rating

100 kA

Series

S302

Circuit Breaker Type

MCB

Width

35mm

Length

69mm

Mounting Style

DIN Rail

Depth

69mm

Model Number

S302P-C6

Terminal Contact Type

Screw

COO (Country of Origin):
DE

ABB S302 Series MCB, 6A Current Rating, Type C Tripping Characteristics - 2CDS382001R0064


This ABB MCB is a compact 2 pole circuit breaker designed for efficient electrical circuit protection in industrial and commercial applications. With a rated current of 6A, this Type C MCB features a robust breaking capacity of 100 kA. The device is suitable for mounting on a DIN rail and measures 35mm in width and 69mm in length, making it an ideal choice for space-conscious installation.

Features & Benefits


• High breaking capacity of 100 kA ensures effective protection against faults
• Type C design offers reliable operation for inductive loads
• Screw terminal connectivity facilitates easy installation and maintenance
• Compact dimensions allow for versatile DIN rail mounting
• Supports rated operational voltage of 415V for wide compatibility
• Integrated trip indicator enhances visibility of tripping events

Applications


• Suitable for use in industrial automation systems
• Ideal for protecting motor control
• Effective for use in commercial electrical installations
• Used with sub-distribution boards in various electrical systems

What makes this product suitable for high-load applications?


The Type C characteristics enable it to tolerate inrush currents effectively while providing reliable protection against overloads, making it ideal for circuits with high inductive loads.

How can incorrect installation be avoided when using it?


The screw terminal design includes a failsafe feature that prevents improper installation, ensuring a secure electrical connection.

What voltage ratings can this product support?


It supports a rated AC voltage of up to 415V, which allows for versatile applications in various environments.

What type of electrical environments can benefit most from this product?


This MCB is well-suited for environments requiring robust circuit protection, such as manufacturing plants and commercial buildings where motor loads are common.

How can the ease of installation be enhanced with this product?


The dual DIN rail release mechanism allows for quick and effortless installation, simplifying the integration process within existing electrical infrastructure.
