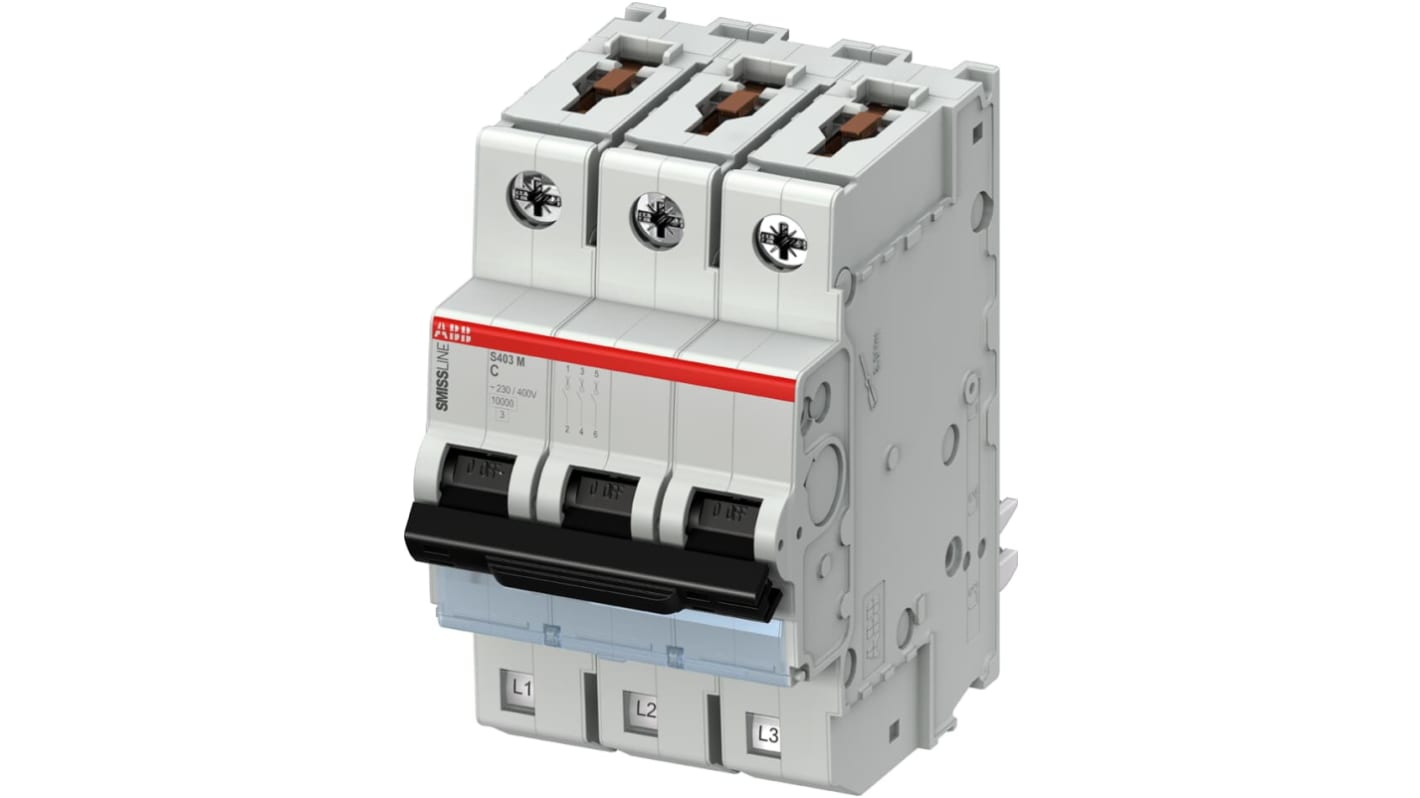

ABB SMISSLINE TP S400M MCB, 3P, 8A Curve C, 230V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 177-951
- Mfr. Part No.:
- 2CCS573001R0084 S403M-C8
- Brand:
- ABB
Subtotal (1 unit)*
£123.70
(exc. VAT)
£148.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £123.70 |
*price indicative
- RS Stock No.:
- 177-951
- Mfr. Part No.:
- 2CCS573001R0084 S403M-C8
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Current Rating | 8A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V, 400V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | SMISSLINE TP | |
| Series | S400M | |
| Circuit Breaker Type | MCB | |
| Length | 91mm | |
| Width | 54mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 75mm | |
| Model Number | S403M-C8 | |
| Terminal Contact Type | Screw | |
| Special Features | Overload Protection, Thermal Tripping | |
| Application | Commercial, Industrial | |
| Reset Actuator Type | Toggle Switch | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 8A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V, 400V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range SMISSLINE TP | ||
Series S400M | ||
Circuit Breaker Type MCB | ||
Length 91mm | ||
Width 54mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
Model Number S403M-C8 | ||
Terminal Contact Type Screw | ||
Special Features Overload Protection, Thermal Tripping | ||
Application Commercial, Industrial | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- CH
ABB S400M Series MCB, 3 Poles, 8A Current Rating - S403M-C8
This 3-pole miniature circuit breaker is designed for efficient electrical protection. With a current rating of 8A, it is suitable for both commercial and industrial applications. The breaker features a robust design that can withstand rated AC voltages of 230V and 400V with a breaking capacity of up to 10kA, ensuring reliability under various load conditions.
Features & Benefits
• Type C MCB for effective short circuit protection
• Designed for DIN rail mounting, ensuring easy installation
• Complies with IEC standards for enhanced safety
• Capable of handling up to 10kA breaking capacity
• Integrates screw terminal type for secure connections
• Designed for DIN rail mounting, ensuring easy installation
• Complies with IEC standards for enhanced safety
• Capable of handling up to 10kA breaking capacity
• Integrates screw terminal type for secure connections
Applications
• Suitable for commercial electrical applications requiring protection
• Ideal for industrial settings with high fault current scenarios
• Appropriate for use in critical power applications
• Ideal for industrial settings with high fault current scenarios
• Appropriate for use in critical power applications
Is it compatible with various mounting systems?
It is designed for DIN rail mounting systems.
What type of tripping mechanism does it utilise?
It employs both thermal and electromechanical tripping mechanisms.
What is the energy limiting class of this circuit breaker?
The MCB has an energy limiting class of 3, ensuring high performance during overload.
