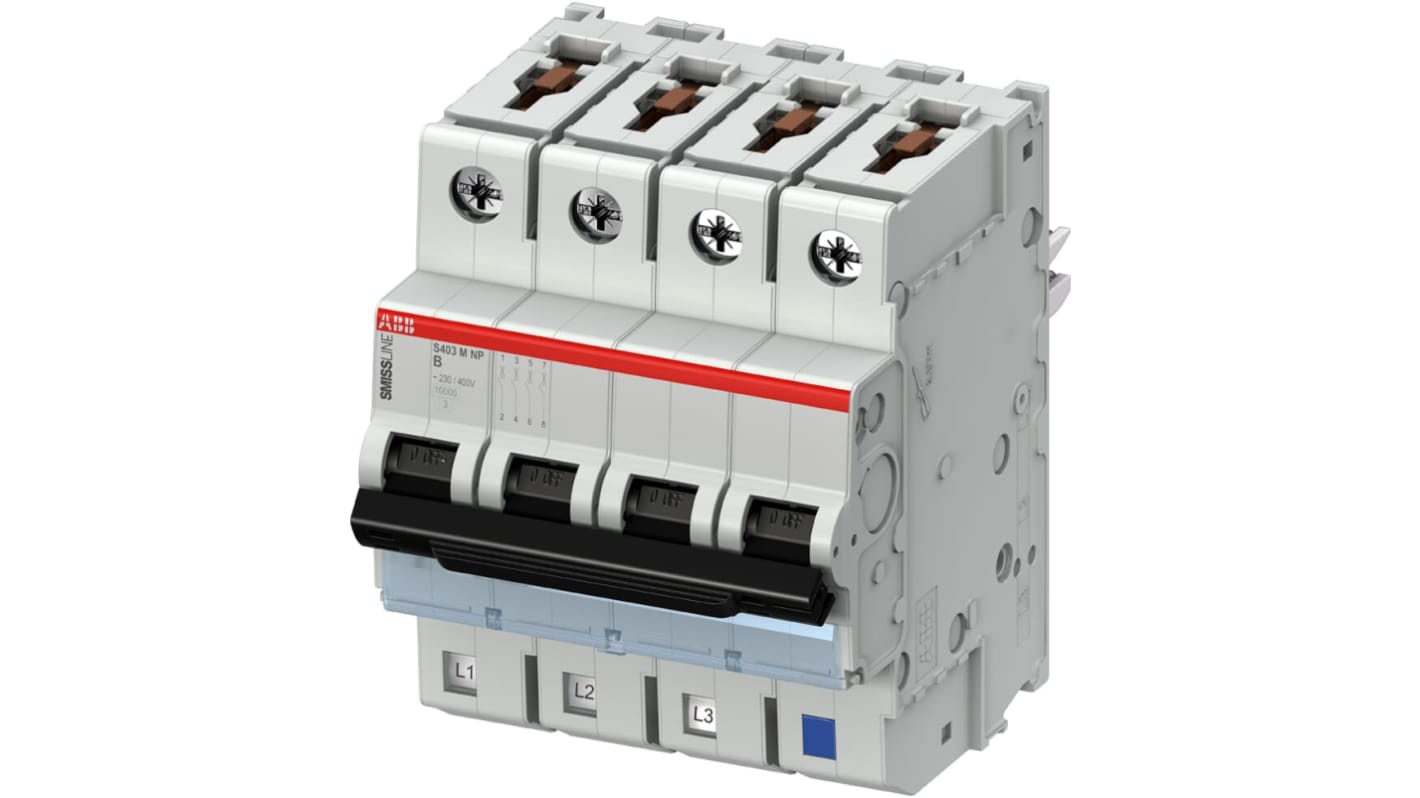

ABB SMISSLINE TP S400M MCB, 3P, 25A Curve B, 230V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 176-324
- Mfr. Part No.:
- 2CCS573001R0255 S403M-B25
- Brand:
- ABB
Subtotal (1 unit)*
£98.84
(exc. VAT)
£118.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £98.84 |
*price indicative
- RS Stock No.:
- 176-324
- Mfr. Part No.:
- 2CCS573001R0255 S403M-B25
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Current Rating | 25A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 230 V, 400V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | SMISSLINE TP | |
| Series | S400M | |
| Circuit Breaker Type | MCB | |
| Length | 91mm | |
| Width | 54mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 75mm | |
| Model Number | S403M-B25 | |
| Application | Commercial, Industrial | |
| Special Features | Overload Protection, Thermal Tripping | |
| Terminal Contact Type | Screw | |
| Reset Actuator Type | Toggle Switch | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230 V, 400V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range SMISSLINE TP | ||
Series S400M | ||
Circuit Breaker Type MCB | ||
Length 91mm | ||
Width 54mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
Model Number S403M-B25 | ||
Application Commercial, Industrial | ||
Special Features Overload Protection, Thermal Tripping | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- CH
ABB S400M Series MCB, 3 Poles, 25A Current Rating - S403M-B25
This miniature circuit breaker (MCB) is designed for effective electrical protection in commercial and industrial environments. With dimensions of 54mm in width, 91mm in length, and a depth of 75mm, this 3-pole MCB ensures safety against overloads and short circuits.
Features & Benefits
• Delayed thermal tripping mechanism for overload protection
• Electromechanical tripping for consistent short-circuit response
• High breaking capacity of 10kA for enhanced safety
• DIN Rail mount for quick and easy installation
• Electromechanical tripping for consistent short-circuit response
• High breaking capacity of 10kA for enhanced safety
• DIN Rail mount for quick and easy installation
Applications
• Applied in small industrial control panels to protect circuits for equipment such as pumps and fans
• Employed in commercial distribution boards to provide reliable circuit protection for various electrical applications
• Employed in commercial distribution boards to provide reliable circuit protection for various electrical applications
What type of circuits is the B-type tripping characteristic suitable for?
The B-type characteristic is ideal for circuits with moderate inrush currents, reducing the chance of nuisance tripping
Is it appropriate for harsh environments?
It operates effectively in temperatures from -25°C to 60°C.
Does it comply with international standards?
Yes, it conforms to IEC/EN 60898-1 and IEC/EN 60947-2.
