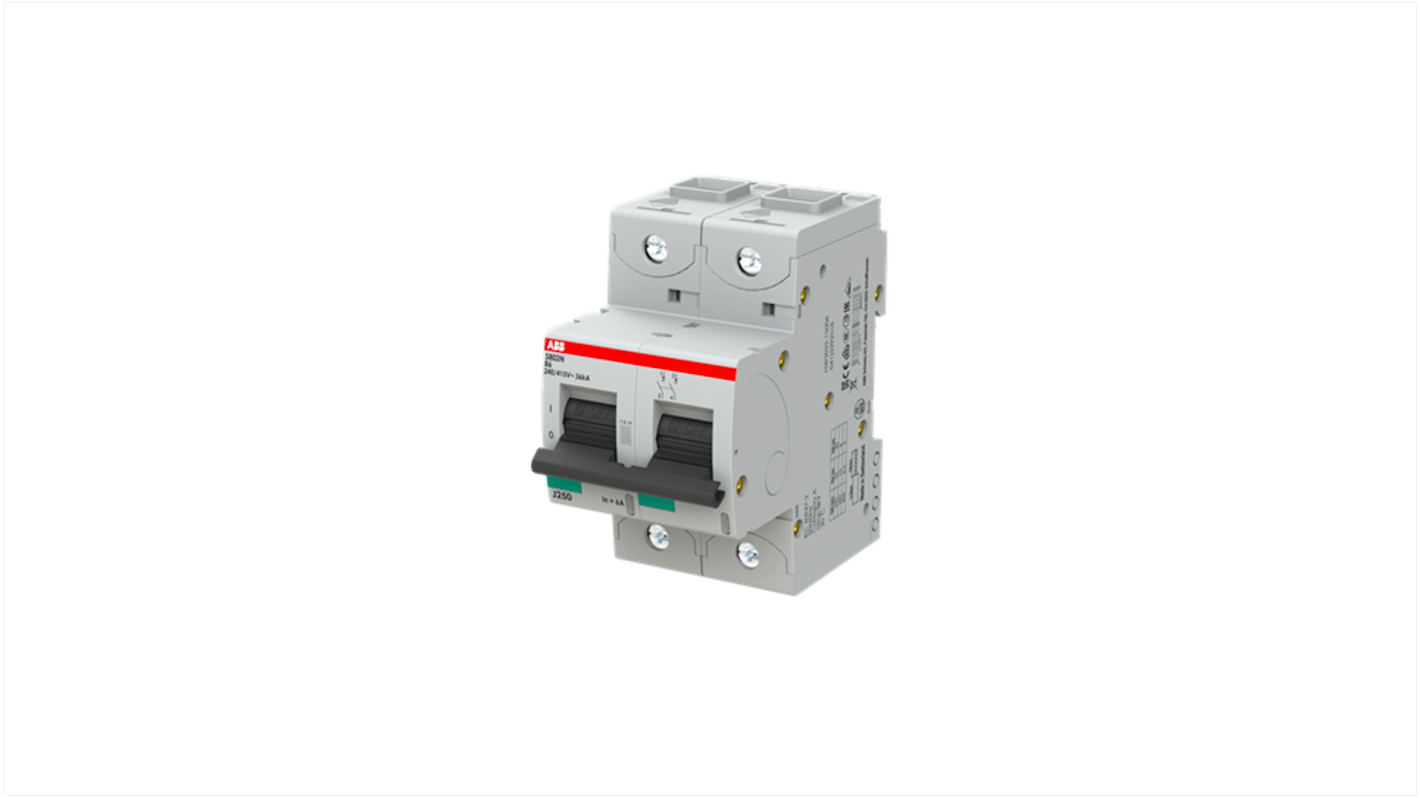

ABB S802N Miniature Circuit Breaker, 2-Pole, 6 A, Type B, 690 V ac AC, 36 kA Breaking Capacity
- RS Stock No.:
- 141-155
- Mfr. Part No.:
- 2CCS892001R0065
- Brand:
- ABB
Subtotal (1 unit)*
£135.60
(exc. VAT)
£162.72
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £135.60 |
*price indicative
- RS Stock No.:
- 141-155
- Mfr. Part No.:
- 2CCS892001R0065
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 6 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 36kA | |
| Series | S802N | |
| Terminal Type | Cage Terminal | |
| Width | 54 mm | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Standards/Approvals | IEC/EN 60947-2 | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 6 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 690 V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 36kA | ||
Series S802N | ||
Terminal Type Cage Terminal | ||
Width 54 mm | ||
Depth 82.5mm | ||
Height 95mm | ||
Standards/Approvals IEC/EN 60947-2 | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high-performance MCB is a reliable 2-pole circuit breaker with a B-characteristic, delivering a maximum breaking capacity of 36kA at 240/415V. With both thermal and electromechanical tripping mechanisms, it offers protection against overload and short circuits. Compliant with IEC/EN standards, this MCB is ideal for industrial applications, featuring fast arc extinction for enhanced security.
Two tripping mechanisms for overload and short circuit protection
Complies with IEC/EN 60947-2 standards
Extensive range of accessories available
Energy limiting class 3 for added safety
Fast arc extinction ensures secure operation
Versatile use for both AC and DC applications
Easy installation with DIN rail mounting
Reliable performance with 10000 cycles of electrical and mechanical endurance
Energy-efficient with low power loss
