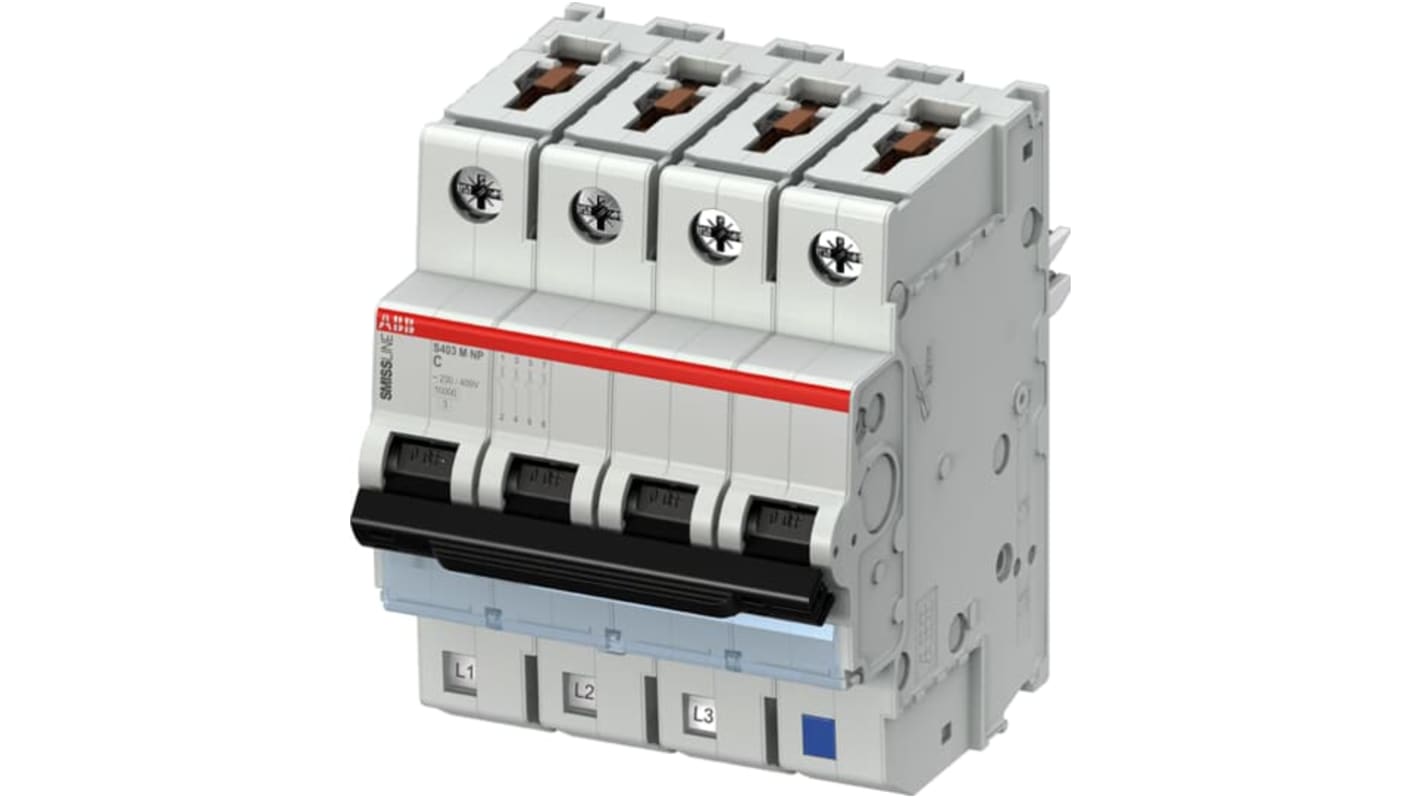

ABB S403E Miniature Circuit Breaker, 4-Pole, 13A, Type C, 12V ac AC, 400 V dc DC, 6 kA Breaking Capacity
- RS Stock No.:
- 141-119
- Mfr. Part No.:
- 2CCS553103R8134
- Brand:
- ABB
Subtotal (1 unit)*
£125.24
(exc. VAT)
£150.29
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £125.24 |
*price indicative
- RS Stock No.:
- 141-119
- Mfr. Part No.:
- 2CCS553103R8134
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 13A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 12V ac | |
| Rated DC Voltage | 400V dc | |
| Breaking Capacity | 6kA | |
| Series | S403E | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Width | 72mm | |
| Standards/Approvals | CMRT, IEC/EN 60898-1, REACH, RoHS | |
| Height | 91mm | |
| Depth | 72mm | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 13A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 12V ac | ||
Rated DC Voltage 400V dc | ||
Breaking Capacity 6kA | ||
Series S403E | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Width 72mm | ||
Standards/Approvals CMRT, IEC/EN 60898-1, REACH, RoHS | ||
Height 91mm | ||
Depth 72mm | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- CH
The ABB Miniature Circuit Breaker is a current limiting MCB designed for overload and short circuit protection. It features a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. With a breaking capacity of 6 kA at 230/400V AC and a rated current of 13A, this MCB is suitable for commercial, industrial, and critical power applications.
IP20 protection rated
RoHS and REACH compliant
IEC/EN 60898-1 certified
