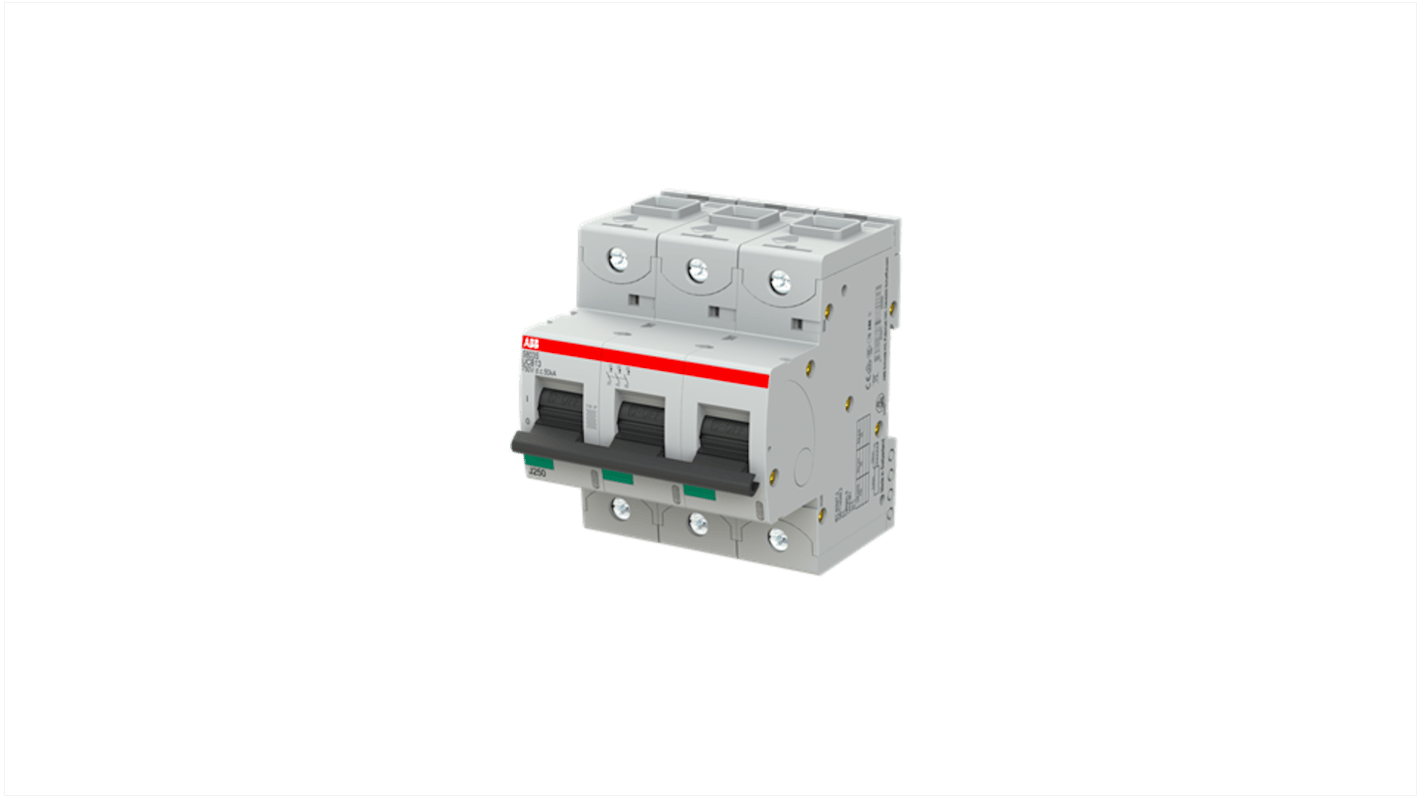

ABB S803S Miniature Circuit Breaker, 3-Pole, 13 A, UC-B, 750 V dc DC, 50 kA Breaking Capacity
- RS Stock No.:
- 141-096
- Mfr. Part No.:
- 2CCS863001R1135
- Brand:
- ABB
Subtotal (1 unit)*
£240.40
(exc. VAT)
£288.48
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £240.40 |
*price indicative
- RS Stock No.:
- 141-096
- Mfr. Part No.:
- 2CCS863001R1135
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 13 A | |
| Tripping Characteristics | UC-B | |
| Rated DC Voltage | 750 V dc | |
| Breaking Capacity | 50kA | |
| Series | S803S | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Width | 81 mm | |
| Standards/Approvals | UL 1077, RoHS, REACH, IEC/EN 60947-2, ETIM 9 EC000042, CMRT | |
| Height | 95mm | |
| Depth | 82.5mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 13 A | ||
Tripping Characteristics UC-B | ||
Rated DC Voltage 750 V dc | ||
Breaking Capacity 50kA | ||
Series S803S | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Width 81 mm | ||
Standards/Approvals UL 1077, RoHS, REACH, IEC/EN 60947-2, ETIM 9 EC000042, CMRT | ||
Height 95mm | ||
Depth 82.5mm | ||
- COO (Country of Origin):
- CH
The ABB High Performance Miniature Circuit Breaker is designed for optimal protection with a rated current of 13A and a tripping characteristic of UC-B. Compliant with IEC/EN standards, this MCB offers 50kA circuit breaking capacity for efficient operation in various applications.
Energy limiting Class 3 for enhanced safety
IP20 degree of protection for durability
RoHS and REACH compliance
Optimal protection for electrical circuits
Reliable operation in diverse environments
long lasting performance with high durability
Ensures safety and efficiency in electrical systems
