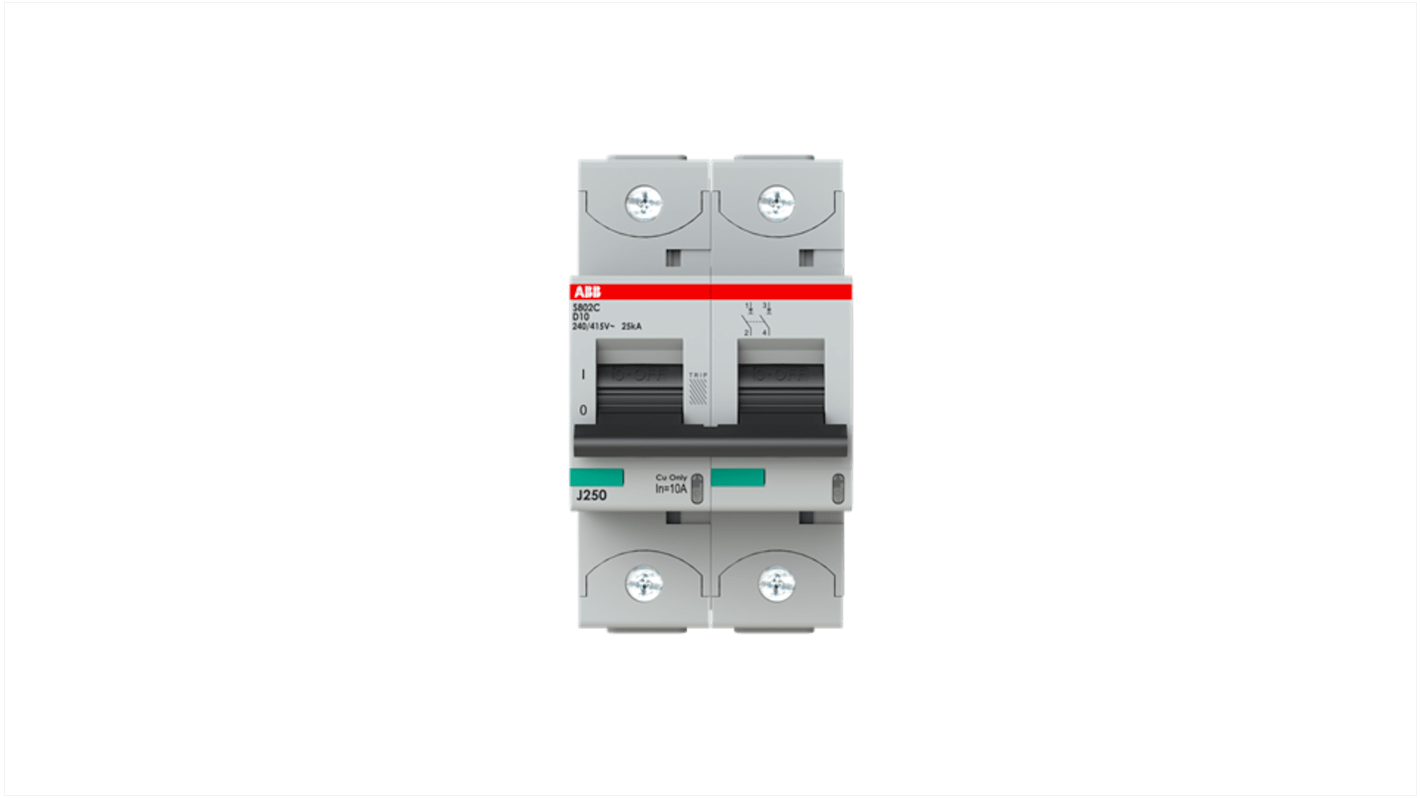

ABB S802C Miniature Circuit Breaker, 2-Pole, 10A, Type D, 415V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 141-062
- Mfr. Part No.:
- 2CCS882001R0101
- Brand:
- ABB
Subtotal (1 unit)*
£113.96
(exc. VAT)
£136.75
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £113.96 |
*price indicative
- RS Stock No.:
- 141-062
- Mfr. Part No.:
- 2CCS882001R0101
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 415V ac | |
| Breaking Capacity | 25kA | |
| Series | S802C | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP20 | |
| Height | 95mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Width | 54mm | |
| Depth | 82.5mm | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 10A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 415V ac | ||
Breaking Capacity 25kA | ||
Series S802C | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP20 | ||
Height 95mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Width 54mm | ||
Depth 82.5mm | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- CH
The ABB high-performance circuit breaker is a reliable 2-pole device with a D-characteristic that offers both overload and short circuit protection. With a maximum breaking capacity of 25kA at 240/415V, it is suitable for residential, commercial, and industrial applications. MCB complies with IEC/EN standards and is designed for use with voltages up to 254/440V, including DC circuits. Its fast arc extinction ensures the safety of your application.
2-pole High Performance Circuit Breaker with D-Characteristic
Rated current of 10 A and maximum breaking capacity of 25kA
Compliant with IEC/EN standards for residential commercial and industrial use
Designed for voltages up to 254/440V including DC circuits
Fast arc extinction for enhanced application safety
