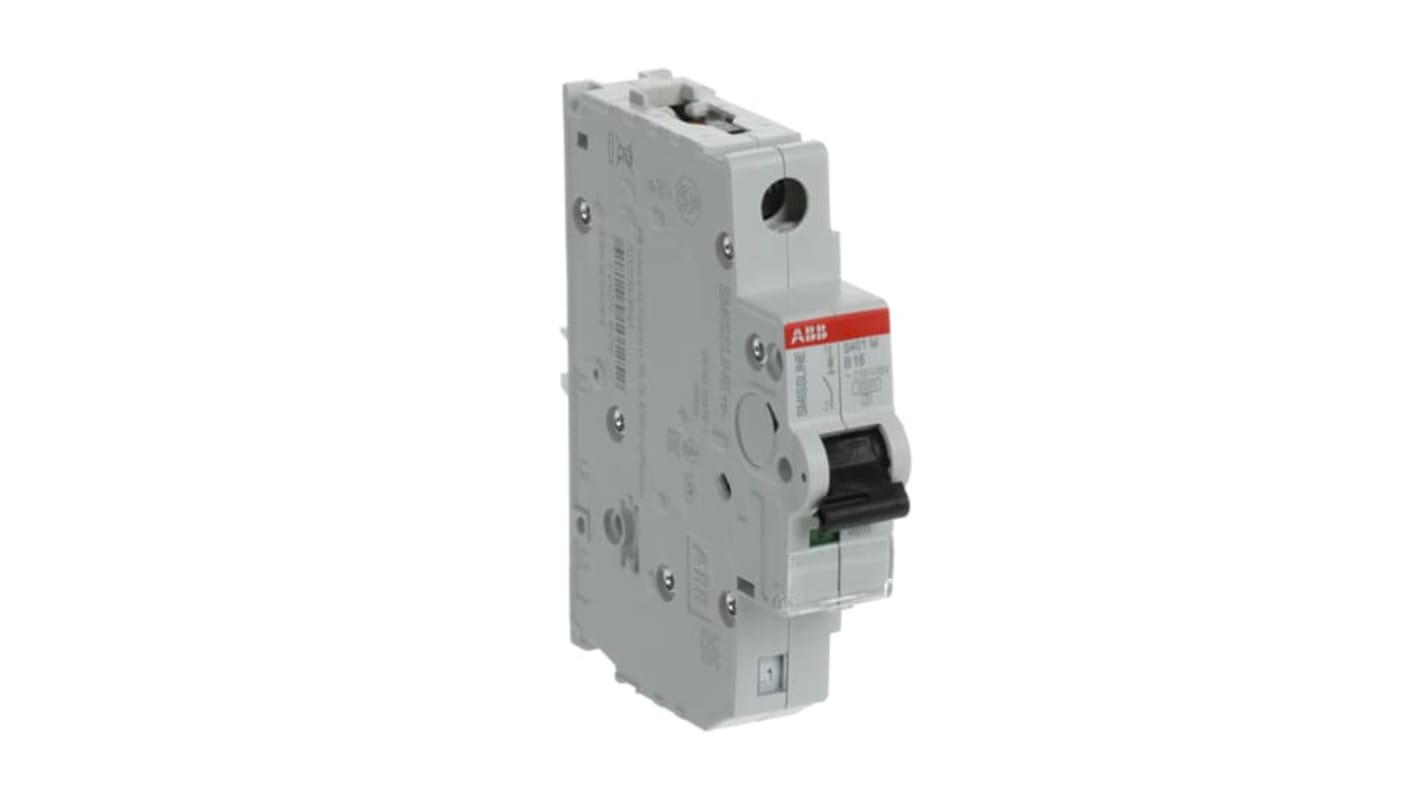

ABB S400M S401M Miniature Circuit Breaker, 1-Pole, 16 A, Type B, 12 V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 141-017
- Mfr. Part No.:
- 2CCS571001R0165
- Brand:
- ABB
Subtotal (1 unit)*
£20.83
(exc. VAT)
£25.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.83 |
*price indicative
- RS Stock No.:
- 141-017
- Mfr. Part No.:
- 2CCS571001R0165
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 12 V ac | |
| Breaking Capacity | 10kA | |
| Range | S400M | |
| Series | S401M | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60898-1 | |
| Width | 18 mm | |
| Height | 91mm | |
| Depth | 82mm | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 16 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 12 V ac | ||
Breaking Capacity 10kA | ||
Range S400M | ||
Series S401M | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60898-1 | ||
Width 18 mm | ||
Height 91mm | ||
Depth 82mm | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- CH
The ABB Miniature Circuit Breaker is a current limiting circuit breaker with delayed thermal tripping mechanism for overload protection and electromechanic tripping mechanism for short circuit protection. It is available in various configurations, breaking capacities, and rated currents. Compliant with IEC/EN standards, this MCB is suitable for commercial, industrial, and critical power applications.
IP20 protection rated
RoHS and REACH compliant
Overload and short circuit protection
IEC/EN 60898-1 certified
