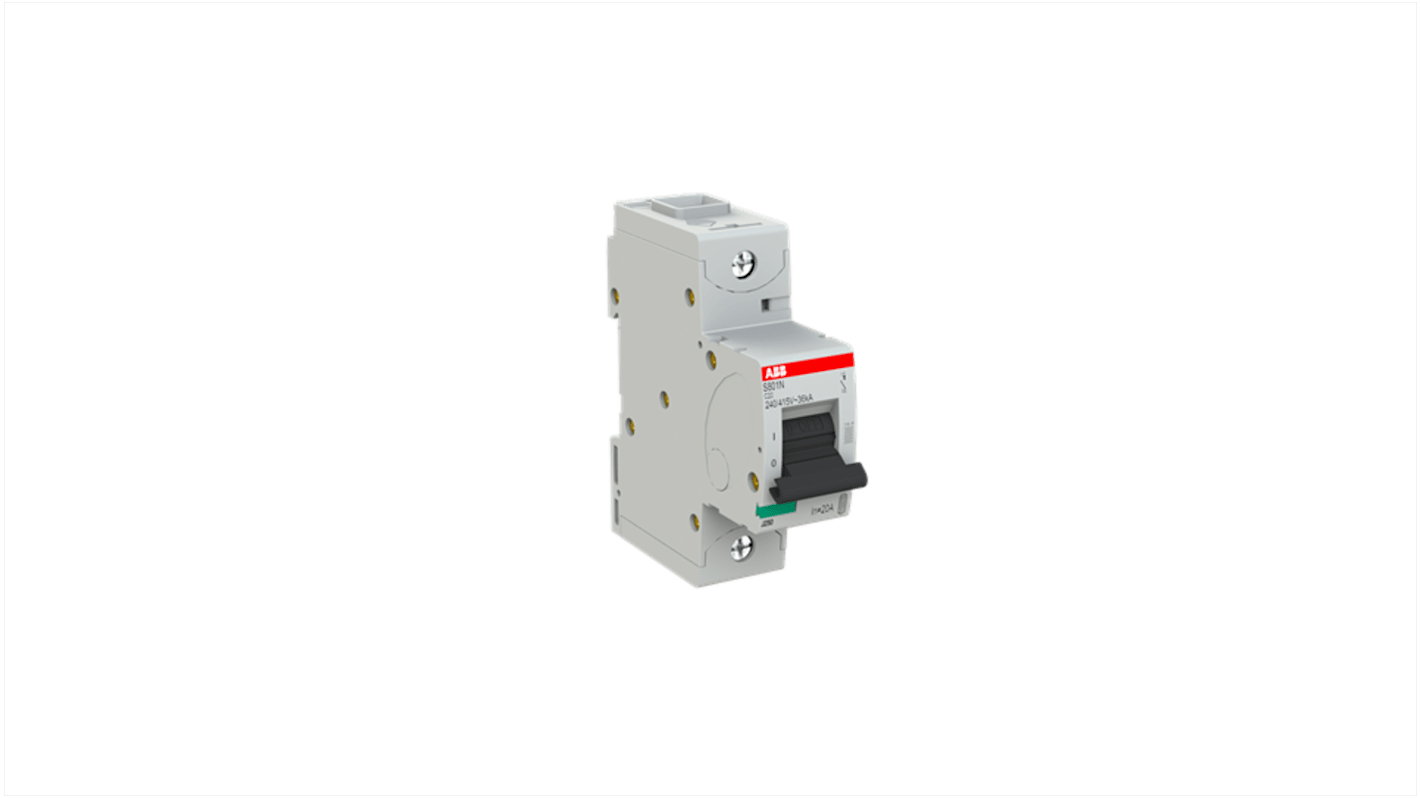

ABB S801N Miniature Circuit Breaker, 1-Pole, 20A, Type C, 400V ac AC, 36 kA Breaking Capacity
- RS Stock No.:
- 140-843
- Mfr. Part No.:
- 2CCS891001R0204
- Brand:
- ABB
Subtotal (1 unit)*
£58.30
(exc. VAT)
£69.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.30 |
*price indicative
- RS Stock No.:
- 140-843
- Mfr. Part No.:
- 2CCS891001R0204
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 20A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 36kA | |
| Series | S801N | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20 | |
| Width | 27mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 20A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 36kA | ||
Series S801N | ||
Terminal Type Cage Terminal | ||
IP Rating IP20 | ||
Width 27mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Depth 82.5mm | ||
Height 95mm | ||
- COO (Country of Origin):
- CH
The ABB high performance circuit breaker is designed with a C-characteristic for maximum breaking capacity of 36kA at 240/415V. It features a thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. With compliance to IEC/EN standards, this circuit breaker is suitable for residential, commercial, and industrial applications worldwide.
Can be used for voltages up to 400/690V and in DC as well
Fast arc extinction for enhanced application security
Energy limiting class 3
IP20 degree of protection for safety
RoHS and REACH compliance for environmental standards
