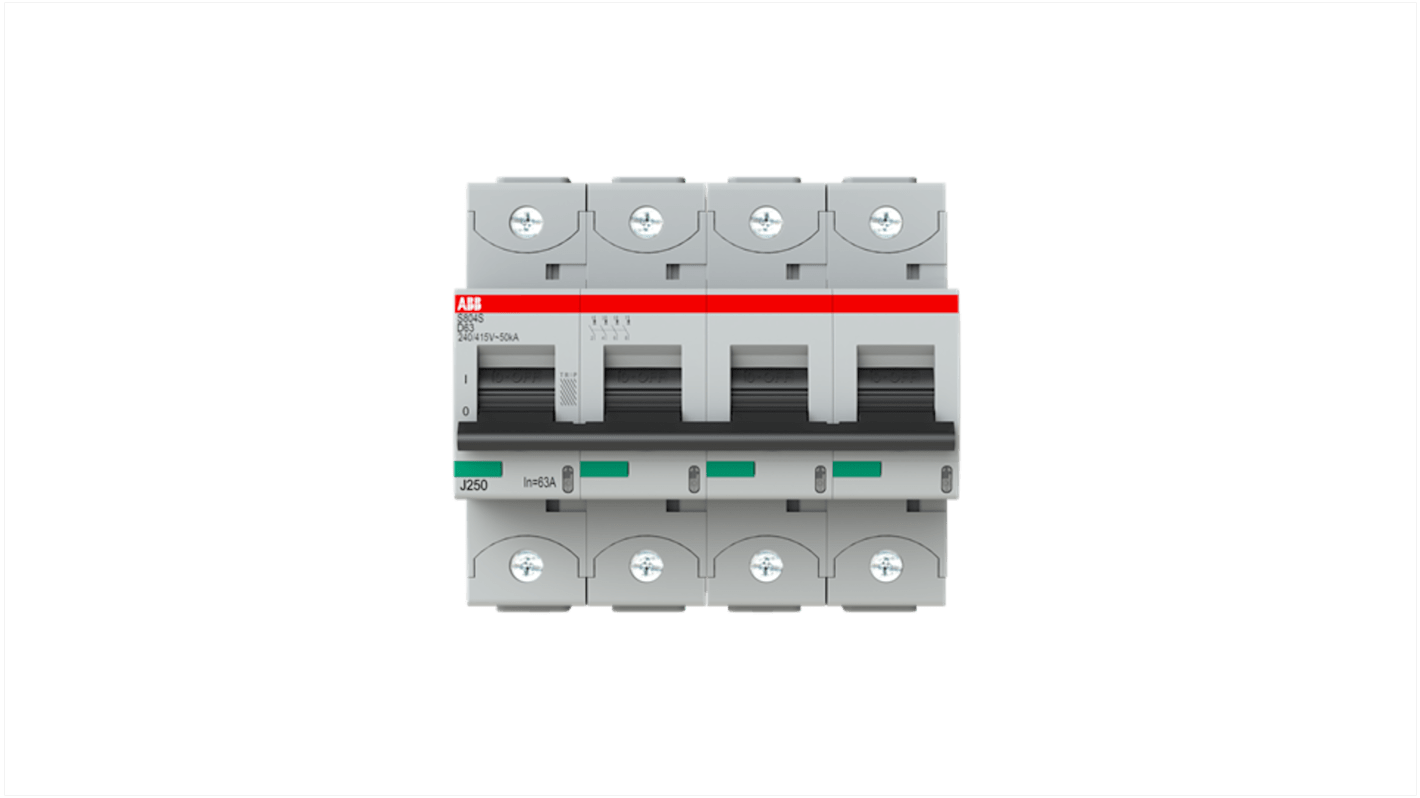

ABB S800S Miniature Circuit Breaker, 4-Pole, 63A, Type D, 240V ac AC, 50 kA Breaking Capacity
- RS Stock No.:
- 140-774
- Mfr. Part No.:
- 2CCS864001R0631
- Brand:
- ABB
Subtotal (1 unit)*
£360.78
(exc. VAT)
£432.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £360.78 |
*price indicative
- RS Stock No.:
- 140-774
- Mfr. Part No.:
- 2CCS864001R0631
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 63A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240V ac | |
| Breaking Capacity | 50kA | |
| Mount Type | DIN Rail | |
| Series | S800S | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Depth | 82.5mm | |
| Standards/Approvals | UL 1077, RoHS, REACH, IEC/EN 60947-2, IEC/EN 60898-1, ETIM 9 EC000042, CMRT | |
| Height | 95mm | |
| Width | 106mm | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 63A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240V ac | ||
Breaking Capacity 50kA | ||
Mount Type DIN Rail | ||
Series S800S | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Depth 82.5mm | ||
Standards/Approvals UL 1077, RoHS, REACH, IEC/EN 60947-2, IEC/EN 60898-1, ETIM 9 EC000042, CMRT | ||
Height 95mm | ||
Width 106mm | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB Circuit Breaker is a versatile solution designed to enhance your electrical systems. With advanced features and reliable performance, this Circuit Breaker is perfect for various industrial applications.
Innovative design for improved efficiency
Robust construction for long-lasting durability
Easy installation for added convenience
High-performance capabilities for optimal functionality
