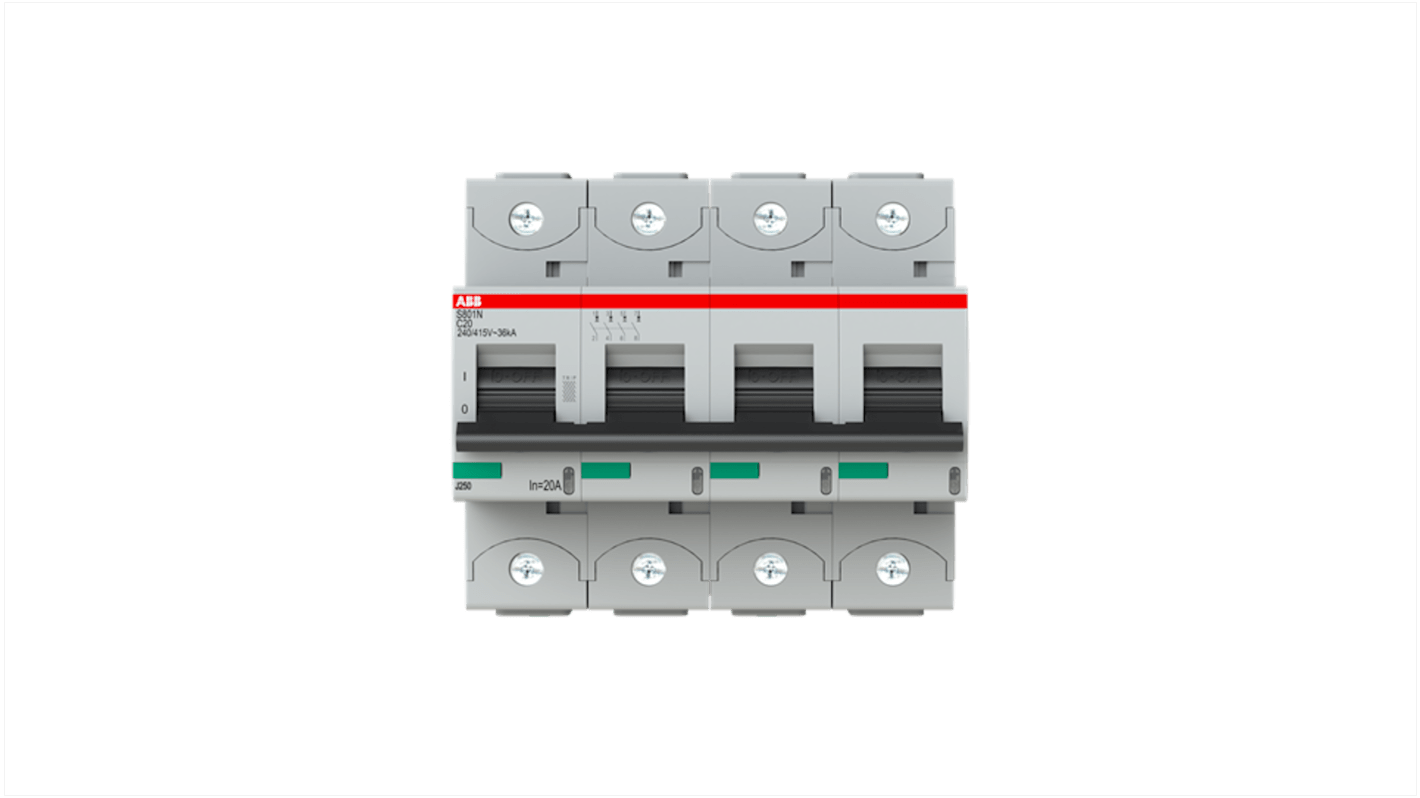

ABB S804N Miniature Circuit Breaker, 4-Pole, 20A, Type C, 690V ac AC, 36 kA Breaking Capacity
- RS Stock No.:
- 140-562
- Mfr. Part No.:
- 2CCS894001R0204
- Brand:
- ABB
Subtotal (1 unit)*
£241.59
(exc. VAT)
£289.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £241.59 |
*price indicative
- RS Stock No.:
- 140-562
- Mfr. Part No.:
- 2CCS894001R0204
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 4 | |
| Current Rating | 20A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 690V ac | |
| Breaking Capacity | 36kA | |
| Mount Type | DIN Rail | |
| Series | S804N | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP20 | |
| Height | 95mm | |
| Width | 106mm | |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 | |
| Depth | 82.5mm | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 4 | ||
Current Rating 20A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 690V ac | ||
Breaking Capacity 36kA | ||
Mount Type DIN Rail | ||
Series S804N | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP20 | ||
Height 95mm | ||
Width 106mm | ||
Standards/Approvals IEC/EN 60947-2, IEC/EN 60898-1 | ||
Depth 82.5mm | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high-performance MCB is a 4-pole circuit breaker with a C-characteristic, rated at 20A. With a maximum breaking capacity of 36kA at 240/415V, it offers reliable overload and short circuit protection. Compliant with IEC/EN standards, this MCB is suitable for residential, commercial, and industrial applications, making it a versatile choice for various settings.
Thermal and electromechanical tripping mechanisms for overload and short circuit protection
Compliance with IEC/EN standards for global use
Versatile use in residential commercial and industrial applications
Reliable protection against overload and short circuits
Wide voltage range compatibility
Global approvals ensure widespread usability
Enhanced safety with fast arc extinction
