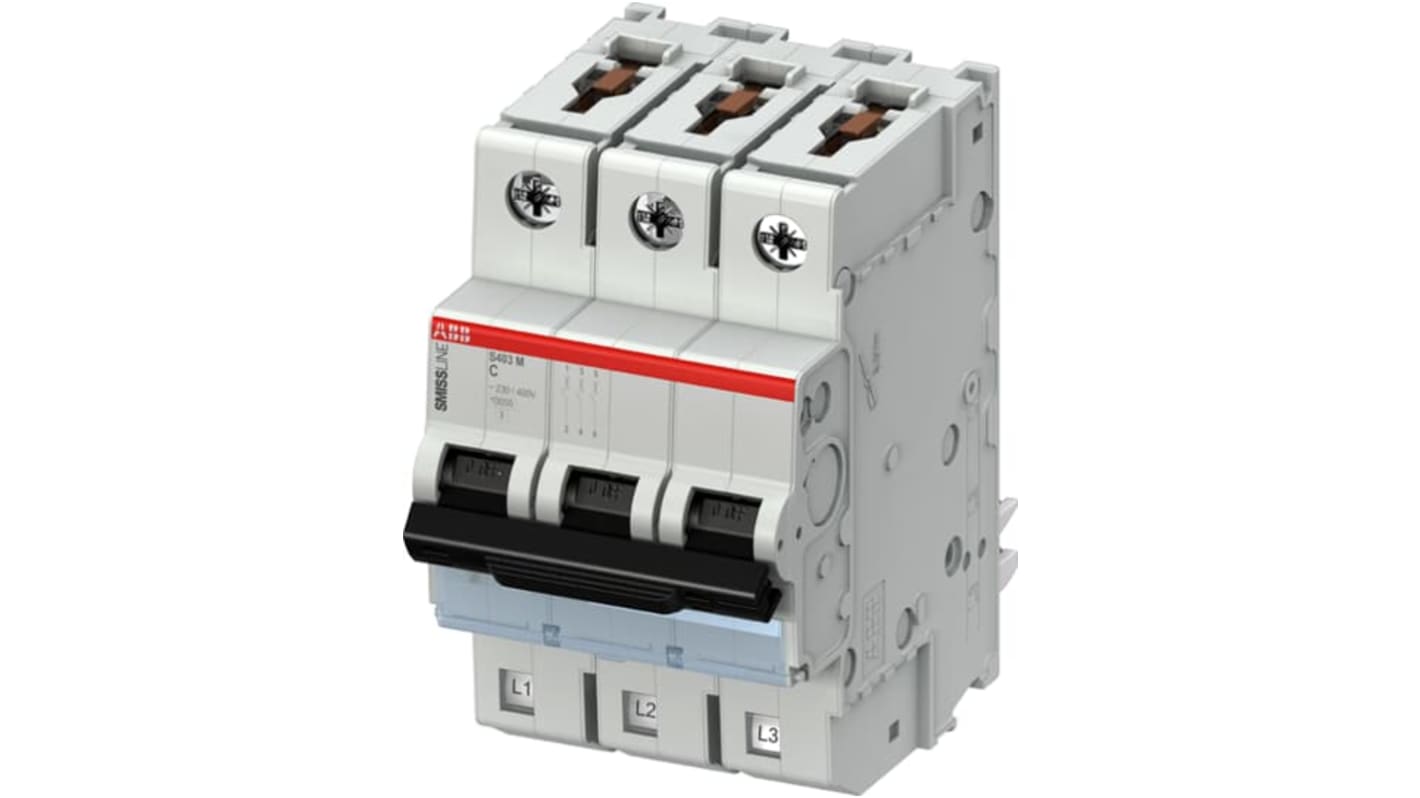

ABB S403M Miniature Circuit Breaker, 3-Pole, 25 A, Type C, 440 V ac AC, 12 V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 140-536
- Mfr. Part No.:
- 2CCS573001R0254
- Brand:
- ABB
Subtotal (1 unit)*
£111.10
(exc. VAT)
£133.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £111.10 |
*price indicative
- RS Stock No.:
- 140-536
- Mfr. Part No.:
- 2CCS573001R0254
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 25 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440 V ac | |
| Rated DC Voltage | 12 V | |
| Breaking Capacity | 15kA | |
| Series | S403M | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60898-1 and IEC/EN 60947-2 | |
| Depth | 82mm | |
| Width | 54 mm | |
| Height | 91mm | |
| Tripping Mechanism | Anaerobic Adhesive, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 25 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440 V ac | ||
Rated DC Voltage 12 V | ||
Breaking Capacity 15kA | ||
Series S403M | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60898-1 and IEC/EN 60947-2 | ||
Depth 82mm | ||
Width 54 mm | ||
Height 91mm | ||
Tripping Mechanism Anaerobic Adhesive, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB Miniature Circuit Breaker is a current limiting MCB with delayed thermal and electromechanic tripping mechanisms for overload and short circuit protection. It complies with IEC/EN standards, has a compact design, and is suitable for commercial, industrial, and critical power applications.
IP20 protection rated
RoHS and REACH compliant
IEC/EN 60898-1 and IEC/EN 60947-2 certified
10000 cycle electrical and mechanical endurance
