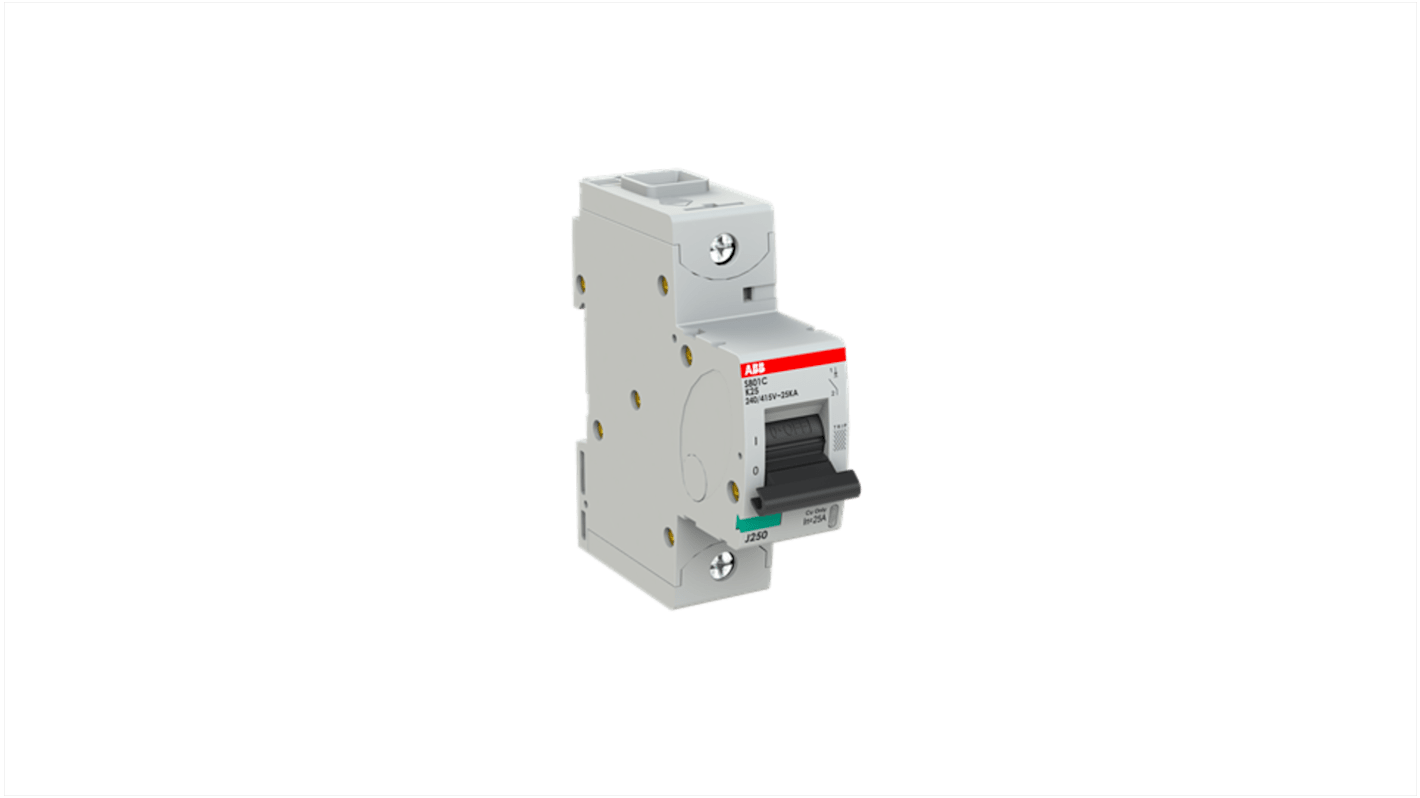

ABB S801C Miniature Circuit Breaker, 1-Pole, 25A, Type K, 400V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-311
- Mfr. Part No.:
- 2CCS881001R0517
- Brand:
- ABB
Subtotal (1 unit)*
£49.68
(exc. VAT)
£59.62
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.68 |
*price indicative
- RS Stock No.:
- 140-311
- Mfr. Part No.:
- 2CCS881001R0517
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 25A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Series | S801C | |
| Terminal Type | Cage Terminal with Captive Screw | |
| IP Rating | IP20 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 25A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Series S801C | ||
Terminal Type Cage Terminal with Captive Screw | ||
IP Rating IP20 | ||
Depth 82.5mm | ||
Height 95mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- CH
The ABB high-performance miniature circuit breaker (MCB) is designed with a K-Characteristic, cage terminal, and a rated current of 25 A. It offers current limiting protection with a maximum breaking capacity of 25kA at 240/415V, suitable for various applications in residential, commercial, and industrial settings. With approvals from IEC/EN standards, this MCB ensures reliable protection for your electrical circuits.
K-Characteristic design for efficient protection
Maximum breaking capacity of 25kA at 240 or 415 V
Compliance with IEC/EN standards for global usage
Extensive range of accessories for added convenience
Fast arc extinction for enhanced safety
Rated insulation voltage of 500 V for reliable performance
Energy limiting Class 3 for efficient operation
