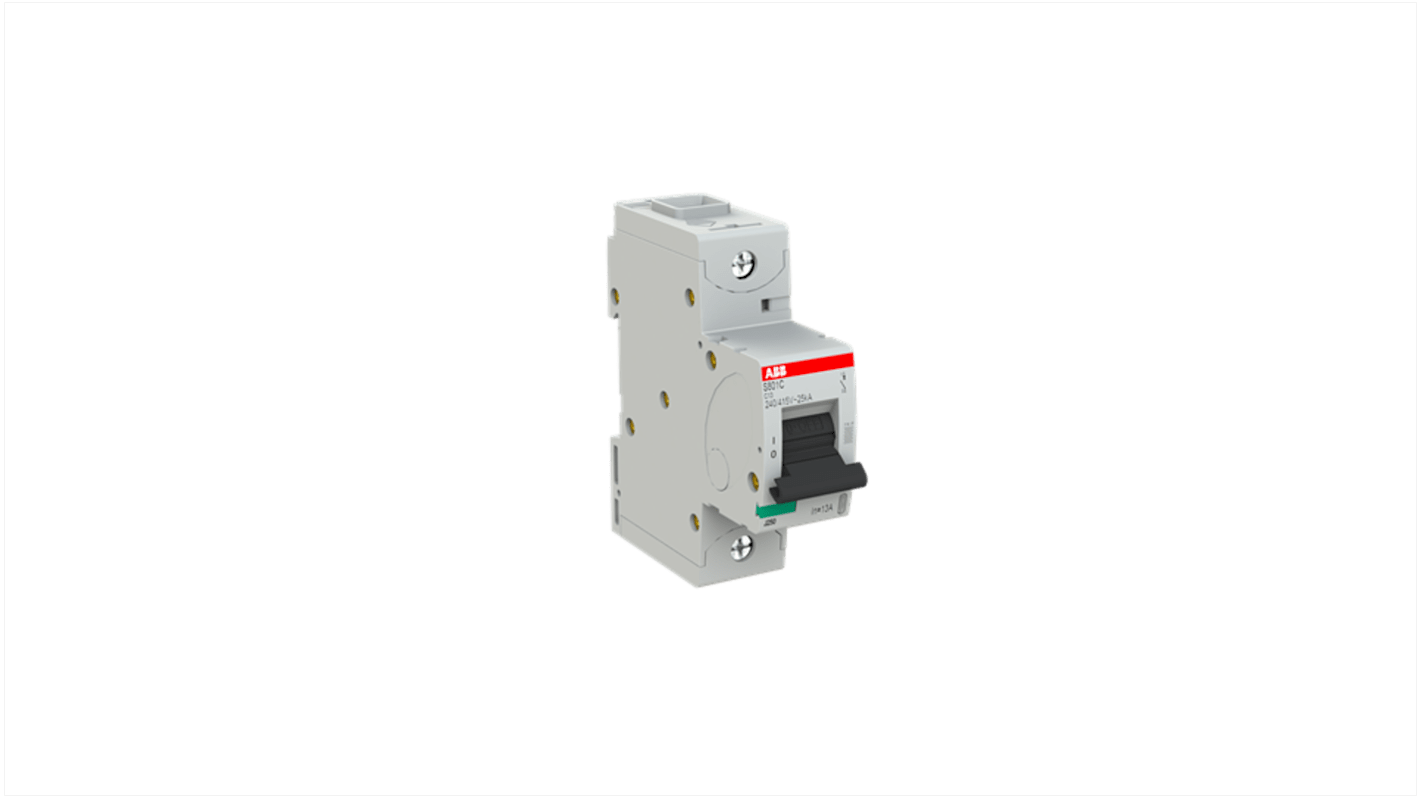

ABB S801 S801C Miniature Circuit Breaker, 1-Pole, 13A, Type C, 400V ac AC, 25 kA Breaking Capacity
- RS Stock No.:
- 140-295
- Mfr. Part No.:
- 2CCS881001R0134
- Brand:
- ABB
Subtotal (1 unit)*
£48.44
(exc. VAT)
£58.13
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.44 |
*price indicative
- RS Stock No.:
- 140-295
- Mfr. Part No.:
- 2CCS881001R0134
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 13A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Range | S801 | |
| Series | S801C | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Width | 27mm | |
| Standards/Approvals | IEC/EN 60947-2IEC/EN 60898-1UL 1077 | |
| Depth | 82.5mm | |
| Height | 95mm | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 13A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Range S801 | ||
Series S801C | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Width 27mm | ||
Standards/Approvals IEC/EN 60947-2IEC/EN 60898-1UL 1077 | ||
Depth 82.5mm | ||
Height 95mm | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB high performance MCB is a 1-pole circuit breaker with a C-characteristic. It is designed for overload and short circuit protection, complying with IEC/EN 60898-1 and IEC/EN 60947-2. With a maximum breaking capacity of 25kA at 240/415V, this MCB is suitable for residential, commercial, and industrial applications worldwide.
C-characteristic 1-pole circuit breaker
Suitable for voltages up to 254/440V and DC
Thermal and electromechanical tripping mechanisms for overload and short-circuit protection
Versatile use for residential commercial and industrial applications
Fast arc extinction ensures secure application
Extensive range of accessories available for added convenience
Global approvals make it suitable for worldwide use
