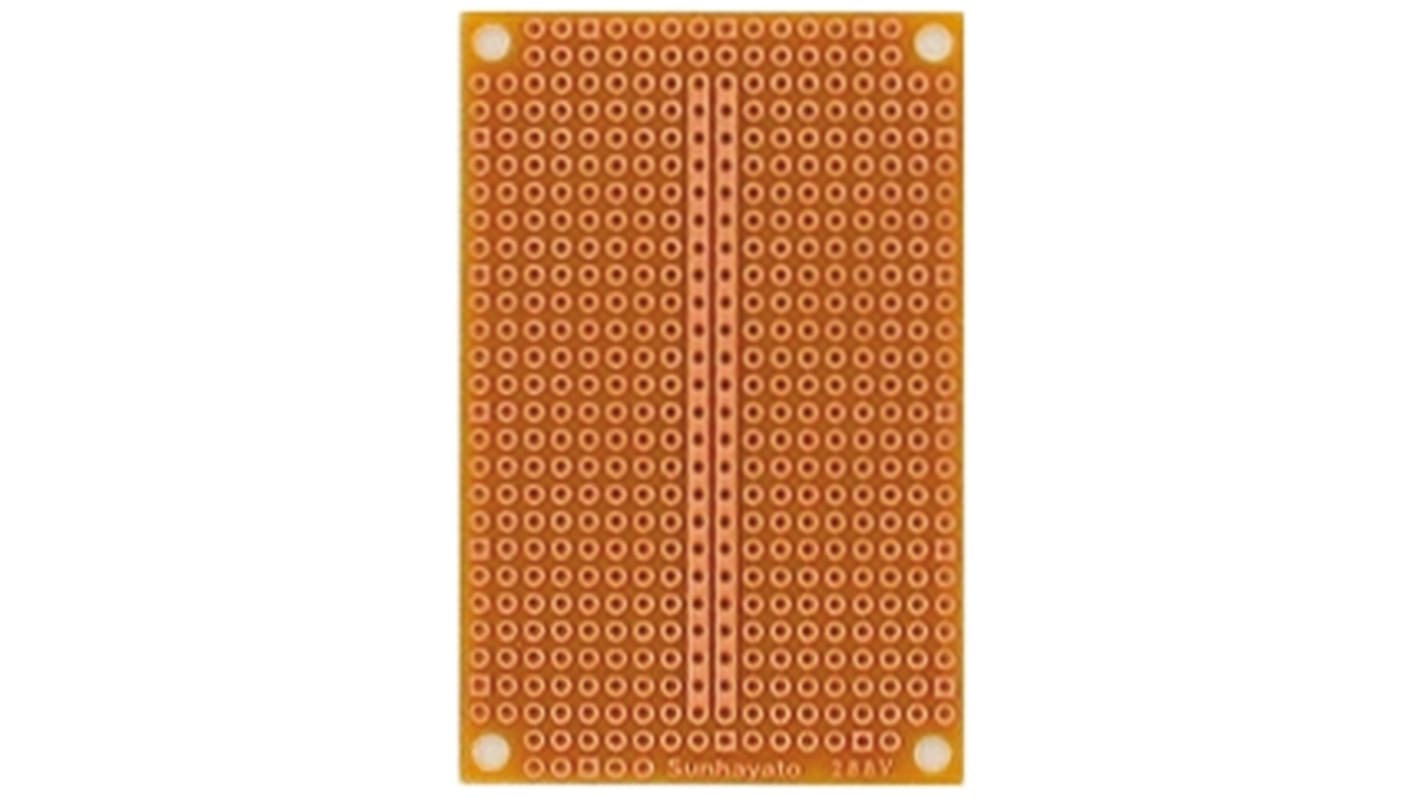

ICB-288V, Matrix Board FR1 with 1mm Holes 2.54 x 2.54mm Pitch, 72 x 47 x 1.6mm

  • RS Stock No. 631-3059
  • Mfr. Part No. ICB-288V
  • Brand Sunhayato
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Compact Universal Board

SEG type is the optimum common earth type for high-frequency circuits
2.54 mm pitch, board installation hole Ø 4 → 3.2

Specifications
Attribute Value
Hole Pitch 2.54 x 2.54mm
Dimensions 72 x 47 x 1.6mm
Length 72mm
Width 47mm
Thickness 1.6mm
Base Material Phenol-Sided Paper
Hole Diameter 1mm
FR Material Grade FR1
41 in stock for FREE next working day delivery
36 available from Europe for delivery within 5 working day(s).
Price Each
£ 1.00
(exc. VAT)
£ 1.20
(inc. VAT)
Units
Per unit
1 - 14
£1.00
15 - 29
£0.71
30 - 59
£0.68
60 +
£0.63
