Sifam Instruments PM Differential Digital Pressure Meter With 2 Pressure Port/s, Max Pressure Measurement 130 mbar
- RS Stock No.:
- 460-9780
- Mfr. Part No.:
- 2021P7-130MB-PF
- Brand:
- Sifam Instruments
Subtotal (1 unit)*
£305.01
(exc. VAT)
£366.01
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £305.01 |
*price indicative
- RS Stock No.:
- 460-9780
- Mfr. Part No.:
- 2021P7-130MB-PF
- Brand:
- Sifam Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sifam Instruments | |
| Product Type | Digital Pressure Meter | |
| Accuracy | ±0.2 % | |
| Number of Pressure Ports | 2 | |
| Maximum Pressure Measurement | 130mbar | |
| Minimum Pressure Measurement | 0mbar | |
| Pressure Port Type | Differential | |
| Model Number | PM | |
| IP Rating | IP67, IP65 | |
| Battery Type | AA | |
| Maximum Overpressure | 1bar | |
| Minimum Operating Temperature | -10°C | |
| Battery Life | 200h | |
| Display Type | LCD | |
| Maximum Operating Temperature | 50°C | |
| Width | 67mm | |
| Standards/Approvals | No | |
| Height | 40mm | |
| Length | 155mm | |
| Hazardous Area Certification | NO | |
| Weight | 180g | |
| Select all | ||
|---|---|---|
Brand Sifam Instruments | ||
Product Type Digital Pressure Meter | ||
Accuracy ±0.2 % | ||
Number of Pressure Ports 2 | ||
Maximum Pressure Measurement 130mbar | ||
Minimum Pressure Measurement 0mbar | ||
Pressure Port Type Differential | ||
Model Number PM | ||
IP Rating IP67, IP65 | ||
Battery Type AA | ||
Maximum Overpressure 1bar | ||
Minimum Operating Temperature -10°C | ||
Battery Life 200h | ||
Display Type LCD | ||
Maximum Operating Temperature 50°C | ||
Width 67mm | ||
Standards/Approvals No | ||
Height 40mm | ||
Length 155mm | ||
Hazardous Area Certification NO | ||
Weight 180g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

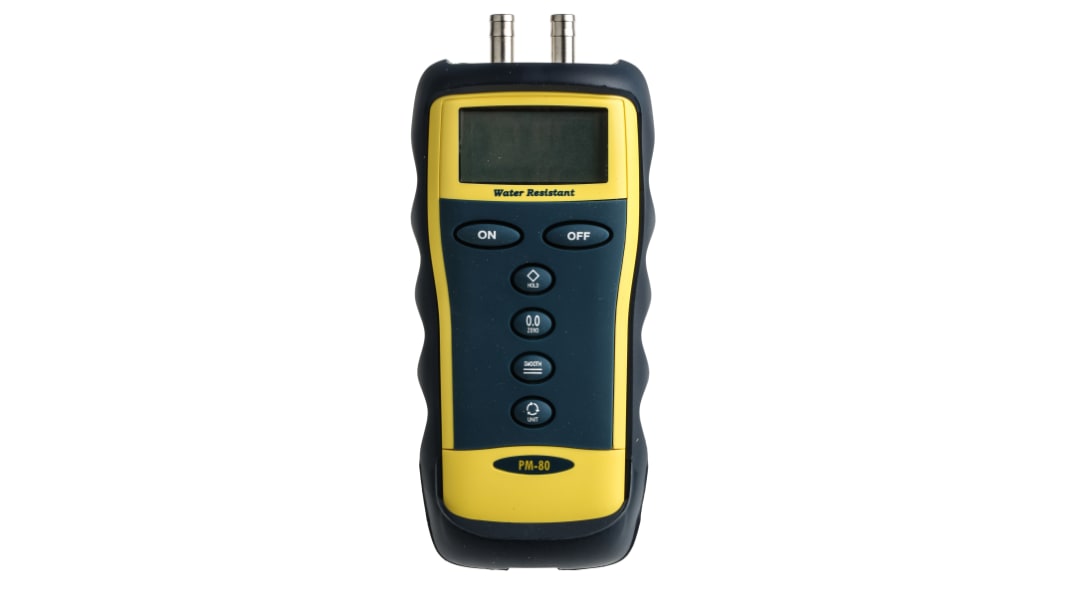

PM-20 and PM-80 0-130mbar
The PM Series is a suitable replacement for the conventional U-Tube, having a fast response coupled with high accuracy and at a low cost. The PM-80 instrument has the advantages of user selectable measurement units and smoothing function ensuring the range continues to meet the performance and cost demands of today's HVAC professional.
Differential input – 8mm tube connectors
Water resistant (IP67 rated)
Rugged case with protective rubber boot
Magnetic attachment or tilt stand
Push button “Zero” and “Hold” features
Backlit digital display
Auto power off after 12 minutes
0-130 mbar measurement
0.01 resolution up to 19.99 mbar, then auto switches to 0.1 resolution
Measurement unit options (selectable on PM-80)
Smoothing function (available on PM-80)
