Digitron PM Differential Digital Pressure Meter With 2 Pressure Port/s, Max Pressure Measurement 130mbar With RS
- RS Stock No.:
- 437-9120
- Mfr. Part No.:
- PM-20
- Brand:
- Digitron
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 437-9120
- Mfr. Part No.:
- PM-20
- Brand:
- Digitron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Digitron | |
Calibrated | RSCAL | |
Best Accuracy | ±0.2 % | |
Number of Pressure Ports | 2 | |
Maximum Pressure Measurement | 130mbar | |
Minimum Pressure Measurement | 0bar | |
Pressure Port Type | Differential | |
Model Number p | PM | |
IP Rating | IP67 | |
Battery Type | AA | |
Display Type | LCD | |
Weight | 180g | |
Width | 67mm | |
Length | 155mm | |
Dimensions | 155 x 67 x 40mm | |
Height | 40mm | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Digitron | ||
Calibrated RSCAL | ||
Best Accuracy ±0.2 % | ||
Number of Pressure Ports 2 | ||
Maximum Pressure Measurement 130mbar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Port Type Differential | ||
Model Number p PM | ||
IP Rating IP67 | ||
Battery Type AA | ||
Display Type LCD | ||
Weight 180g | ||
Width 67mm | ||
Length 155mm | ||
Dimensions 155 x 67 x 40mm | ||
Height 40mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

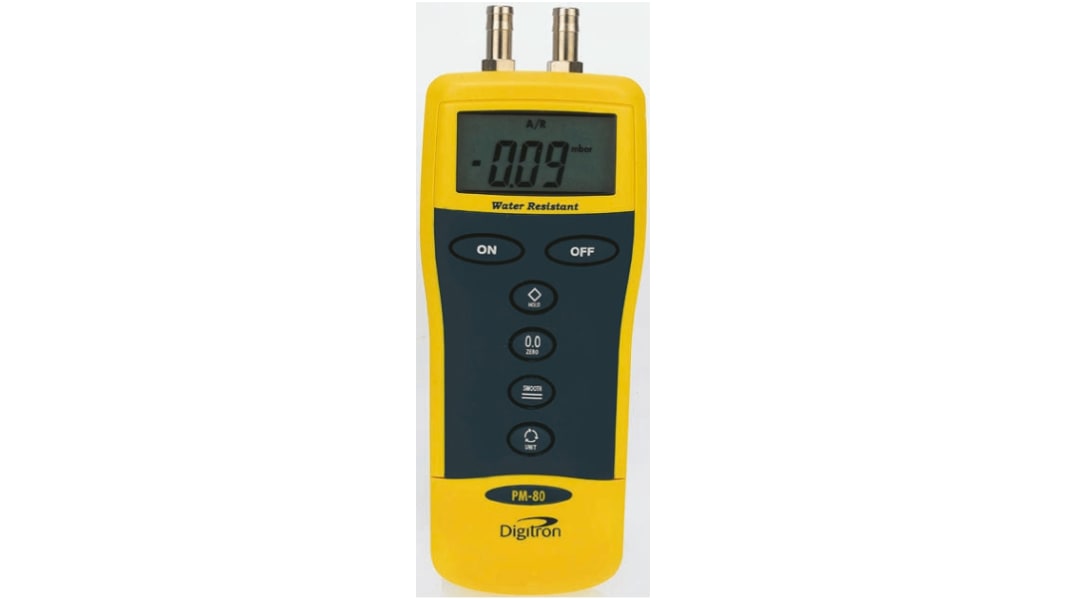

PM-20 and PM-80 0-130mbar
The PM Series is a suitable replacement for the conventional U-Tube, having a fast response coupled with high accuracy and at a low cost. The PM-80 instrument has the advantages of user selectable measurement units and smoothing function ensuring the range continues to meet the performance and cost demands of today's HVAC professional.
Differential input – 8mm tube connectors
Water resistant (IP67 rated)
Rugged case with protective rubber boot
Magnetic attachment or tilt stand
Push button Zero and Hold features
Backlit digital display
Auto power off after 12 minutes
0-130 mbar measurement
0.01 resolution up to 19.99 mbar, then auto switches to 0.1 resolution
Measurement unit options (selectable on PM-80)
Smoothing function (available on PM-80)
Water resistant (IP67 rated)
Rugged case with protective rubber boot
Magnetic attachment or tilt stand
Push button Zero and Hold features
Backlit digital display
Auto power off after 12 minutes
0-130 mbar measurement
0.01 resolution up to 19.99 mbar, then auto switches to 0.1 resolution
Measurement unit options (selectable on PM-80)
Smoothing function (available on PM-80)
