Testo 511 Absolute Manometer, Max Pressure Measurement 1200mbar
- RS Stock No.:
- 114-152
- Mfr. Part No.:
- 0560 0511
- Brand:
- Testo
Subtotal (1 unit)*
£170.69
(exc. VAT)
£204.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £170.69 |
*price indicative
Calibration Options:
- Calibration Type:
- RSCAL
- RS Stock No.
- 810-6617
Each
£231.69
(exc. VAT)
£278.03
(inc. VAT)
- RS Stock No.:
- 114-152
- Mfr. Part No.:
- 0560 0511
- Brand:
- Testo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Testo | |
Best Accuracy | ±3 % | |
Maximum Pressure Measurement | 1200mbar | |
Minimum Pressure Measurement | 300mbar | |
Pressure Port Type | Absolute | |
Model Number p | 511 | |
IP Rating | IP40 | |
Battery Type | AAA | |
For Use With | testo 511, | |
Weight | 90g | |
Minimum Operating Temperature | 0°C | |
Height | 25mm | |
Length | 119mm | |
Width | 46mm | |
Maximum Operating Temperature | +50°C | |
Dimensions | 119 x 46 x 25mm | |
Select all | ||
---|---|---|
Brand Testo | ||
Best Accuracy ±3 % | ||
Maximum Pressure Measurement 1200mbar | ||
Minimum Pressure Measurement 300mbar | ||
Pressure Port Type Absolute | ||
Model Number p 511 | ||
IP Rating IP40 | ||
Battery Type AAA | ||
For Use With testo 511, | ||
Weight 90g | ||
Minimum Operating Temperature 0°C | ||
Height 25mm | ||
Length 119mm | ||
Width 46mm | ||
Maximum Operating Temperature +50°C | ||
Dimensions 119 x 46 x 25mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Testo Digital Pressure Meter

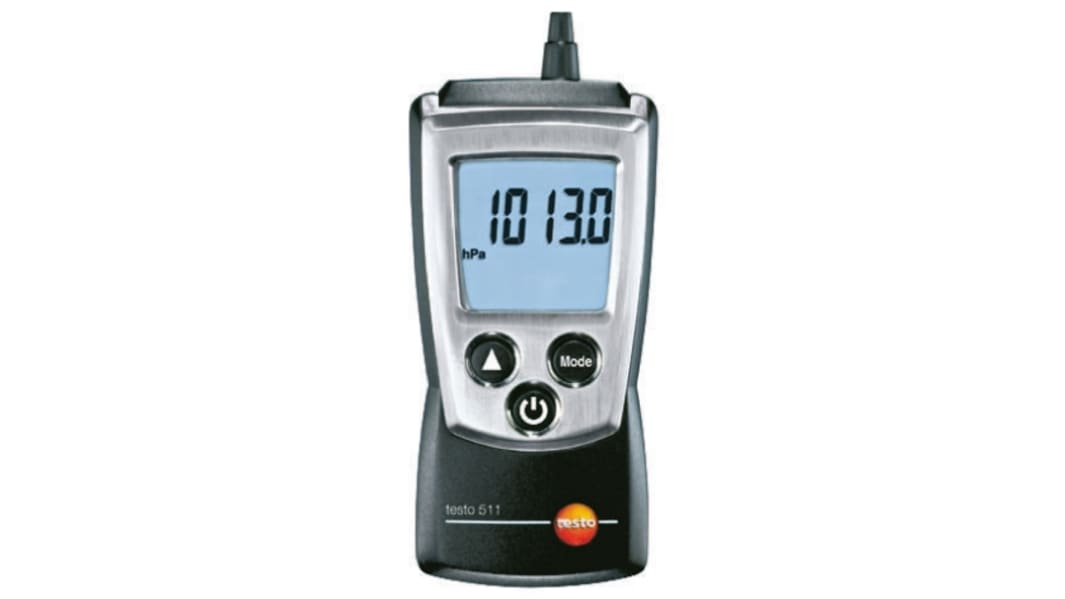

Testo Absolute Manometer, 1200mbar, 25mm Height - 511 Series - 0560 0511
Use this absolute manometer from Testo to measure air and fluid pressure. It has eight switchable pressure units to offer enhanced flexibility in measurement. Thanks to its fast measurement rate of 0.5s, this manometer can quickly detect changes in pressure, making it easier to troubleshoot when the pressure falls outside a desired range. It's battery-powered, so you don't need to plug it into a power source. You can use this device in a variety of applications thanks to its broad measurement range of 300mbar to 1200mbar.
Features & Benefits
• Wide operating temperature range of 0°C to +50°C for use in harsh conditions
• Compact dimensions of 119 (length) x 46 (width) x 25mm (height) for convenient handheld use
• IP40 (ingress protection) rating for protection against wires and solid objects larger than 1mm in size
• Accuracy of ±3% for precise readings
• Compact dimensions of 119 (length) x 46 (width) x 25mm (height) for convenient handheld use
• IP40 (ingress protection) rating for protection against wires and solid objects larger than 1mm in size
• Accuracy of ±3% for precise readings
Applications
• Leak testing
• Gas pipes
• Refrigeration systems
• Gas pipes
• Refrigeration systems
How does this digital manometer work?
This digital manometer has a pressure transducer that deflects under pressure. The device converts the deflection into an electrical signal, which is then converted into an accurate pressure reading.
