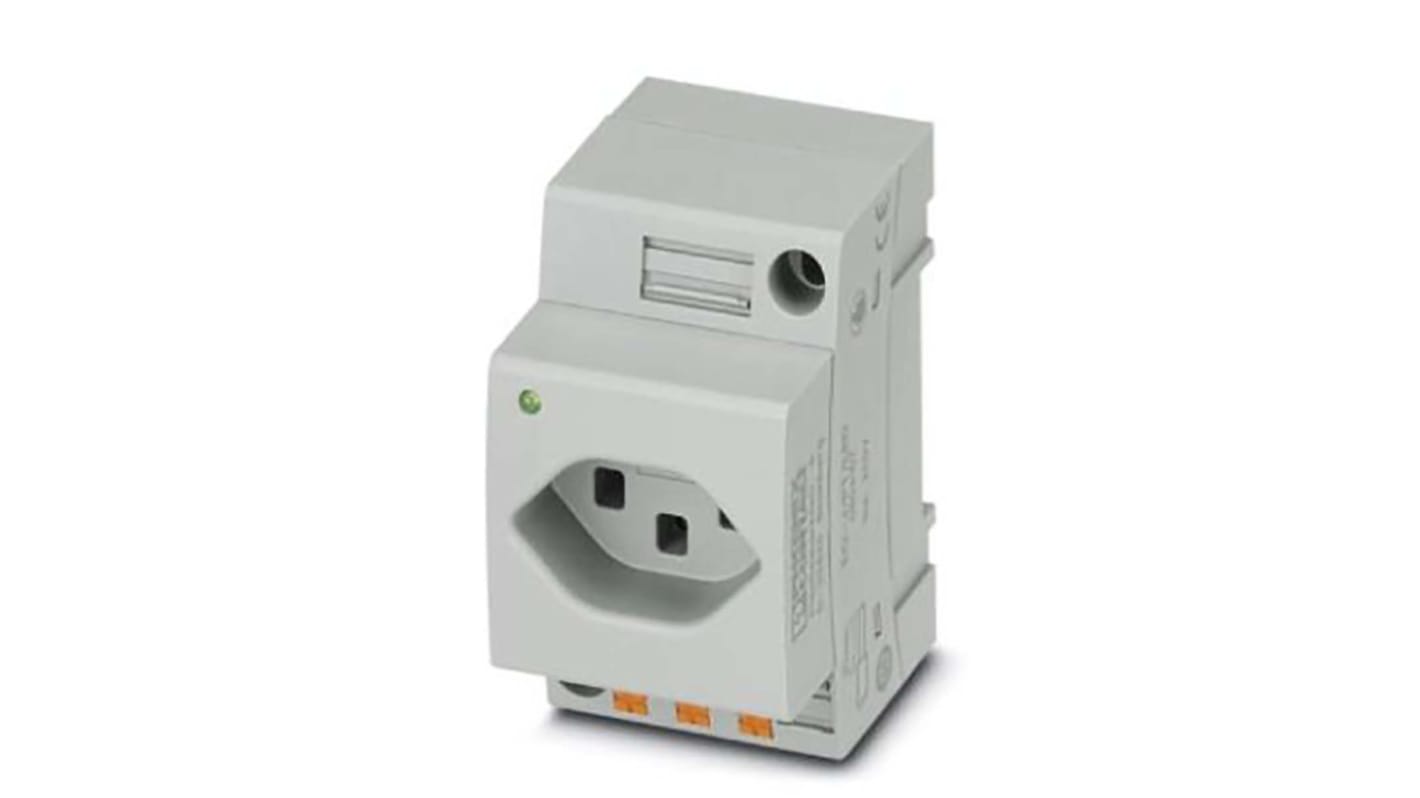

Phoenix Contact Switzerland Mains Socket Grey, 16A, DIN Rail Polyamide, 250V, Push-in
- RS Stock No.:
- 207-3034
- Mfr. Part No.:
- 0804107
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£68.94
(exc. VAT)
£82.73
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £13.788 | £68.94 |
*price indicative
- RS Stock No.:
- 207-3034
- Mfr. Part No.:
- 0804107
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Mains Socket | |
| Connector Type | Type J | |
| Country | Switzerland | |
| Current | 16A | |
| Orientation | Straight | |
| Mount Type | DIN Rail | |
| Connector Gender | Female | |
| Mains Socket Type | Type J | |
| Voltage | 250V | |
| Pole Format | 2+E | |
| Colour | Grey | |
| Body Material | Polyamide | |
| Termination Type | Push-in | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | EO-J | |
| Contact Material | Brass | |
| Contact Plating | Brass | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Mains Socket | ||
Connector Type Type J | ||
Country Switzerland | ||
Current 16A | ||
Orientation Straight | ||
Mount Type DIN Rail | ||
Connector Gender Female | ||
Mains Socket Type Type J | ||
Voltage 250V | ||
Pole Format 2+E | ||
Colour Grey | ||
Body Material Polyamide | ||
Termination Type Push-in | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series EO-J | ||
Contact Material Brass | ||
Contact Plating Brass | ||
- COO (Country of Origin):
- PL
The Phoenix Contact socket used pin connector pattern type J which has push-in spring connection for Switzerland and other countries and its colour is grey. It is mounting on a DIN rail in the service interface or direct mounting which width size is 45mm
Ambient temperature -20 °C to 60 °C
Used PA insulating material
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
