Neutrik Mains Sockets, 16A Black, Cable Mount Polyamide Screw, 250 V
- RS Stock No.:
- 197-4992
- Distrelec Article No.:
- 301-40-273
- Mfr. Part No.:
- NAC3FX-W-TOP
- Brand:
- Neutrik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.73
(exc. VAT)
£8.08
(inc. VAT)
- RS Stock No.:
- 197-4992
- Distrelec Article No.:
- 301-40-273
- Mfr. Part No.:
- NAC3FX-W-TOP
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Neutrik | |
Plug/Socket | Socket | |
Current Rating | 16A | |
Mounting Type | Cable Mount | |
Number of USB Sockets | 0 | |
Voltage Rating | 250 V | |
Pole Format | 2+PE | |
Colour | Black | |
Gender | Female | |
Body Material | Polyamide | |
Termination Method | Screw | |
Maximum Cable Diameter | 12mm | |
Minimum Cable Diameter | 6mm | |
Cable Diameter | 6 → 12mm | |
Select all | ||
---|---|---|
Brand Neutrik | ||
Plug/Socket Socket | ||
Current Rating 16A | ||
Mounting Type Cable Mount | ||
Number of USB Sockets 0 | ||
Voltage Rating 250 V | ||
Pole Format 2+PE | ||
Colour Black | ||
Gender Female | ||
Body Material Polyamide | ||
Termination Method Screw | ||
Maximum Cable Diameter 12mm | ||
Minimum Cable Diameter 6mm | ||
Cable Diameter 6 → 12mm | ||

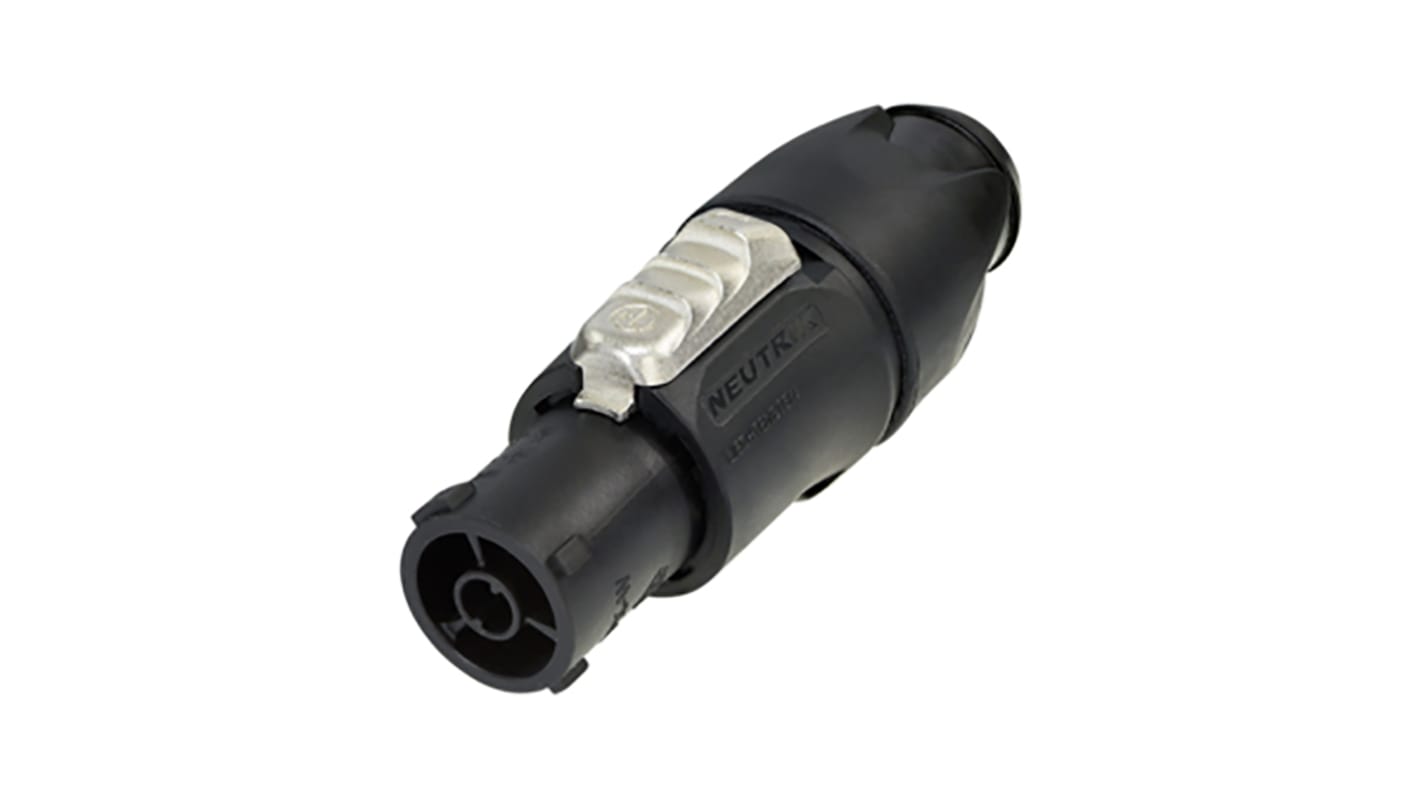

The Neutrik NAC3FX-W-TOP is a locking female 16A true mains cable connector for outdoor applications with screw terminals. The connector has a rugged construction which helps replace appliance couplers. It guarantees a safe power connection and has a breaking capacity that can be connected or disconnected under load or live.
Heavy duty sealed power connector for harsh and demanding environment
IP65 rating and certified outdoor protection to UL 50E enclosure type 4
Easy and reliable twist lock system
ENEC certified according to IEC 60320 and UL498 certified
IP65 rating and certified outdoor protection to UL 50E enclosure type 4
Easy and reliable twist lock system
ENEC certified according to IEC 60320 and UL498 certified
