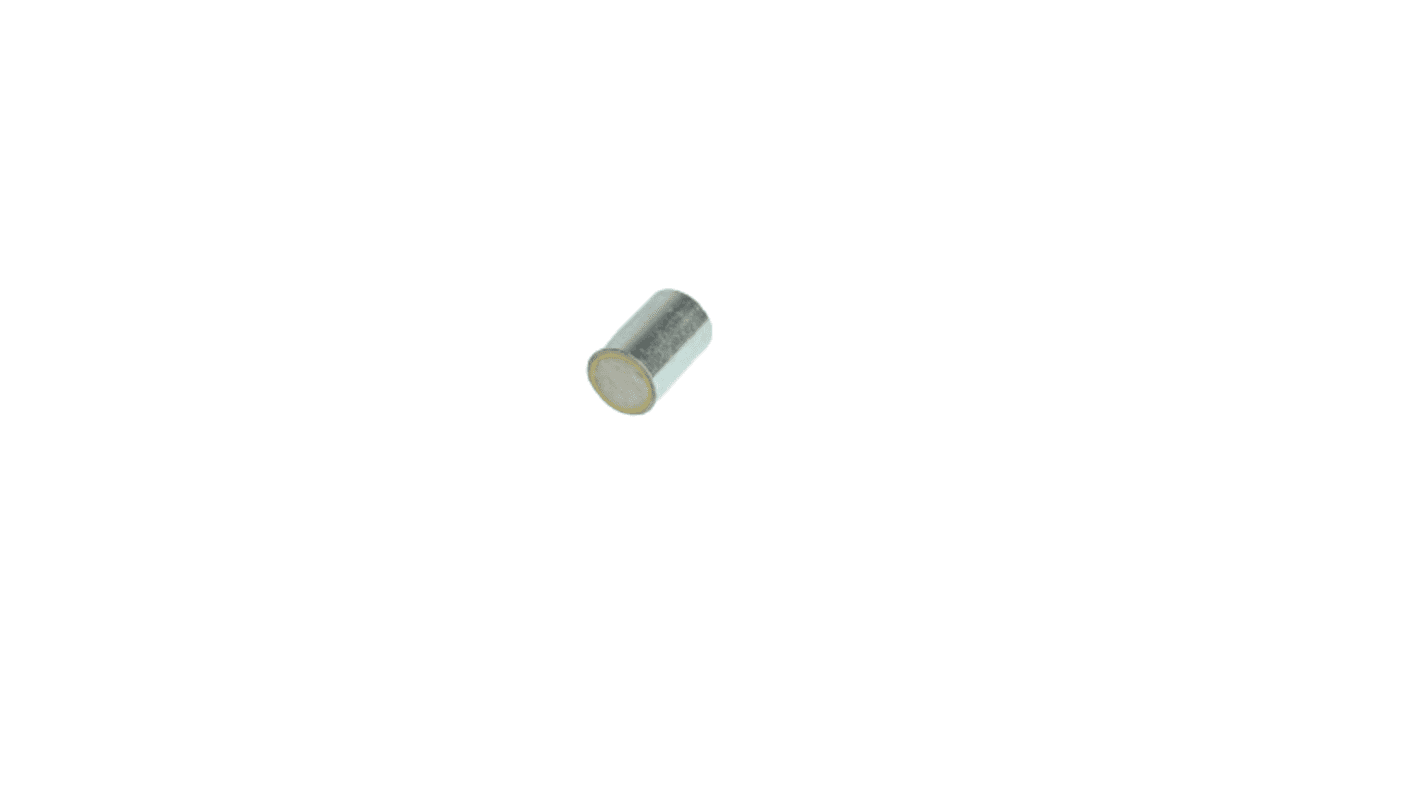

Eclipse Magnet Cylindrical 13 mm, 1 kg Pull 20 mm
- RS Stock No.:
- 269-6588
- Mfr. Part No.:
- E793
- Brand:
- Eclipse
Bulk discount available
View bulk pricing optionsSubtotal (1 pair)*
£28.94
(exc. VAT)
£34.73
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 - 4 | £28.94 |
| 5 - 9 | £27.48 |
| 10 - 29 | £26.05 |
| 30 + | £24.30 |
*price indicative
- RS Stock No.:
- 269-6588
- Mfr. Part No.:
- E793
- Brand:
- Eclipse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eclipse | |
| Product Type | Magnet | |
| Width/Diameter | 13mm | |
| Pull Force | 1kg | |
| Thickness | 20mm | |
| Magnet Shape | Cylindrical | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Eclipse | ||
Product Type Magnet | ||
Width/Diameter 13mm | ||
Pull Force 1kg | ||
Thickness 20mm | ||
Magnet Shape Cylindrical | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Eclipse Alnico deep pot is higher temperature pot magnet capable of being used at temperatures up to 220 degrees celsius. It has a blind end at the back but the diameter is ground to H6 tolerance to allow for press fitting into milled holes. The magnet is held in place with aid of a brass spacer ring.
Zinc plated mild steel body
Supplied with keeper plates
