Eclipse 10mm Threaded Hole Samarium Alloy Pot Magnet, 2kg Pull

  • RS Stock No. 131-5968
  • Mfr. Part No. E772RS
  • Brand Eclipse
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

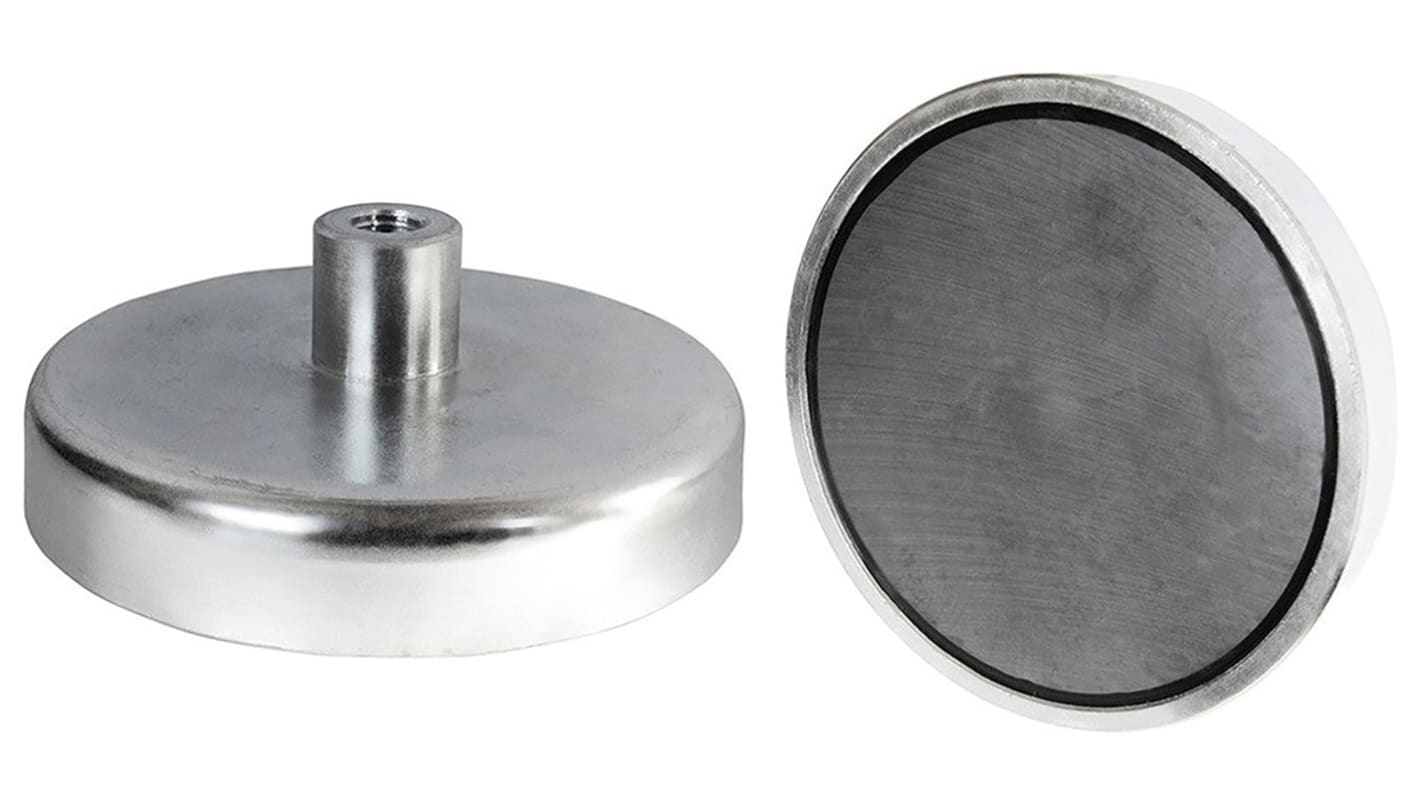

Samarium Cobalt Shallow Pot Magnets-Threaded Hole

Shielded, samarium-cobalt flat gripper magnets with galvanised surface finish
Three to five times the adhesive force of hard ferrites
Install by press fitting, gluing, casting
Temperature stable up to +200 °C
For use in tensioning and assembly work

Specifications
Attribute Value
Magnet Type Pot
Width/Diameter 10mm
Pull Force 2kg
Thread Size M3
Thickness 11.5mm
Attachment Type Threaded Hole
Material Samarium Cobalt Alloy
66 In stock for FREE next working day delivery
Price 1 Pair
£ 6.04
(exc. VAT)
£ 7.25
(inc. VAT)
Pair(s)
1 +
£6.04
