Subtotal (1 tube of 10 units)*
£5.39
(exc. VAT)
£6.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 46 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £5.39 | £0.539 |
*price indicative
- RS Stock No.:
- 291-904
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Magnet | |
| Width/Diameter | 10mm | |
| Thickness | 5mm | |
| Length | 25mm | |
| Standards/Approvals | RS PRO Seal of Approval | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Magnet | ||
Width/Diameter 10mm | ||
Thickness 5mm | ||
Length 25mm | ||
Standards/Approvals RS PRO Seal of Approval | ||
- COO (Country of Origin):
- CN

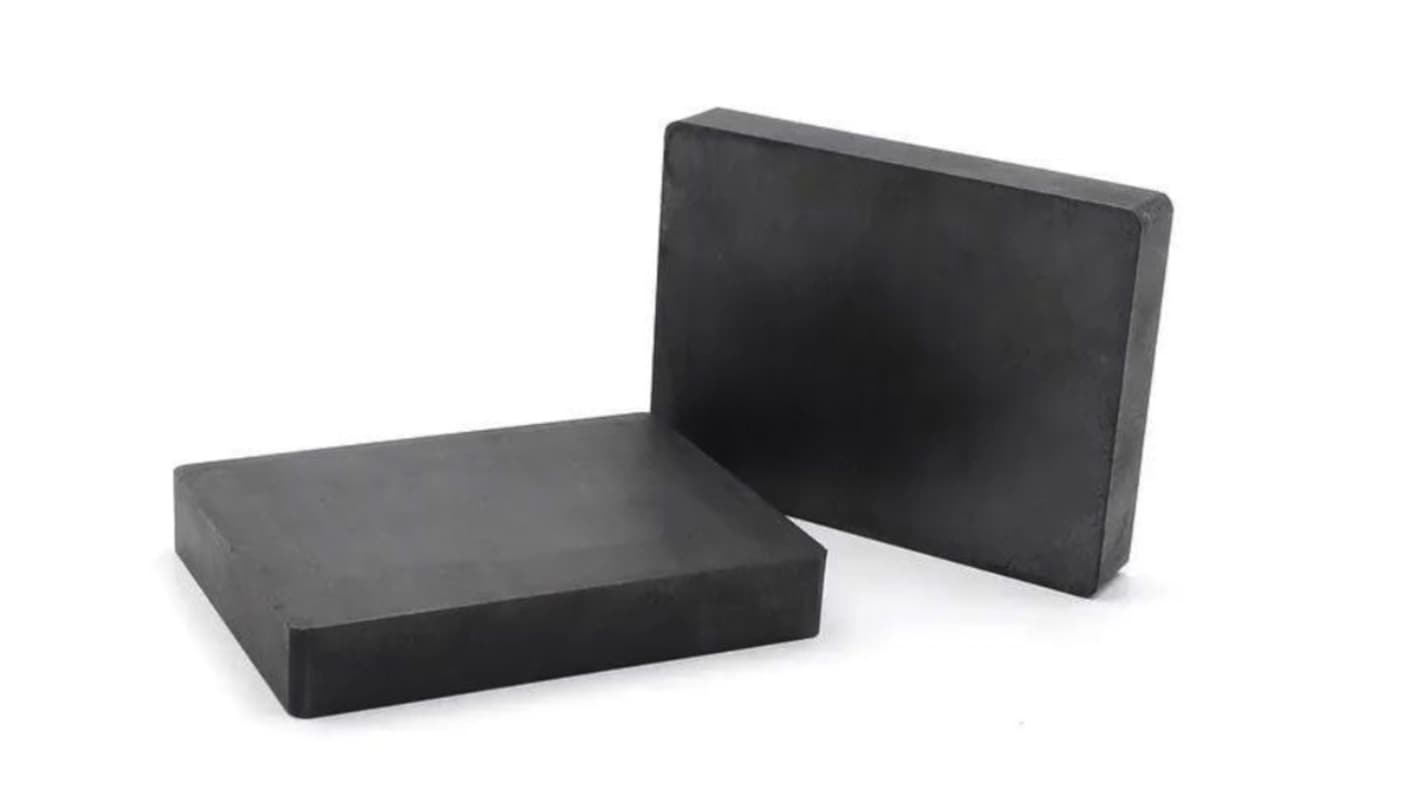

RS PRO Magnet, Ferrite Block
RS PRO offers high-quality Ferrite magnets known for their strength and durability. These magnets are corrosion-resistant and can be used in water without any risk of rusting. While not as strong as Rare Earth Neodymium magnets, their high coercivity and low cost make them ideal for applications like motors, especially in high-temperature environments.
Features and Benefits
Maximum Working Temperature is 482ºF (250ºC) providing excellent performance in high-temperature conditions
Ferrite Magnet known for durability and cost-effectiveness
Magnetization Direction Axially Magnetized ensuring optimal magnetic field orientation
Tolerance: ±0.1mm for precision in applications
Corrosion-resistant suitable for damp, wet, or marine environments
Electrically insulating preventing eddy currents
Applications
Widely used in motors, generators, and loudspeakers
Ideal for marine applications due to corrosion resistance
Suitable for automotive, aerospace, military, electronics, and R&D industries
Additional Information
Ferrite magnets are ferrimagnetic, offering a good magnetic field and strength
Can withstand temperatures up to +250°C
Distinct "pencil lead" dark grey colour
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
