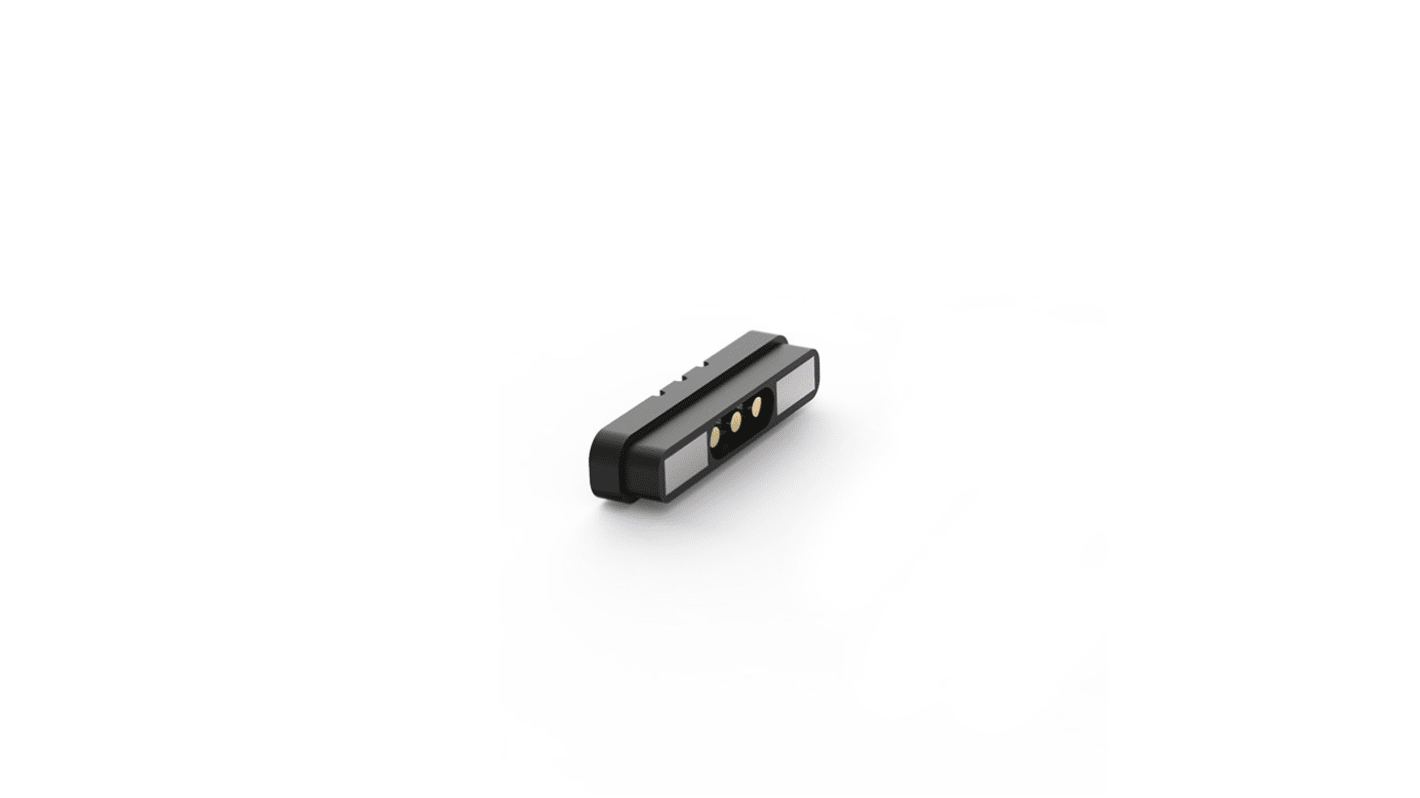

EDAC, 686, Straight PCB 3 way Magnetic Connector, Brass Contact Female, Solder Pin
- RS Stock No.:
- 253-3566
- Mfr. Part No.:
- 686-0032221-111
- Brand:
- EDAC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.14
(exc. VAT)
£8.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 167 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.14 |
| 10 - 24 | £6.50 |
| 25 - 49 | £5.94 |
| 50 + | £5.49 |
*price indicative
- RS Stock No.:
- 253-3566
- Mfr. Part No.:
- 686-0032221-111
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EDAC | |
| Product Type | Magnetic Connector | |
| Connector Gender | Female | |
| Termination Type | Solder Pin | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Orientation | Straight | |
| Series | 686 | |
| Number of Ways | 3 | |
| Connector Type | Magnetic Jack | |
| Contact Material | Brass | |
| Contact Plating | Gold Flash | |
| Mount Type | PCB | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand EDAC | ||
Product Type Magnetic Connector | ||
Connector Gender Female | ||
Termination Type Solder Pin | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
Orientation Straight | ||
Series 686 | ||
Number of Ways 3 | ||
Connector Type Magnetic Jack | ||
Contact Material Brass | ||
Contact Plating Gold Flash | ||
Mount Type PCB | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- CN
The EDAC magnetic pogo pins are used in almost every kind of electronic device today. Their high durability, tolerance and versatile application make them a preferred connector for intelligent electronic designs.
Contact is made of brass
Insulation is PA46, colour black
Voltage rating is 12v
Current rating is 2A max
Working temperature range is -30°C to +85°C
