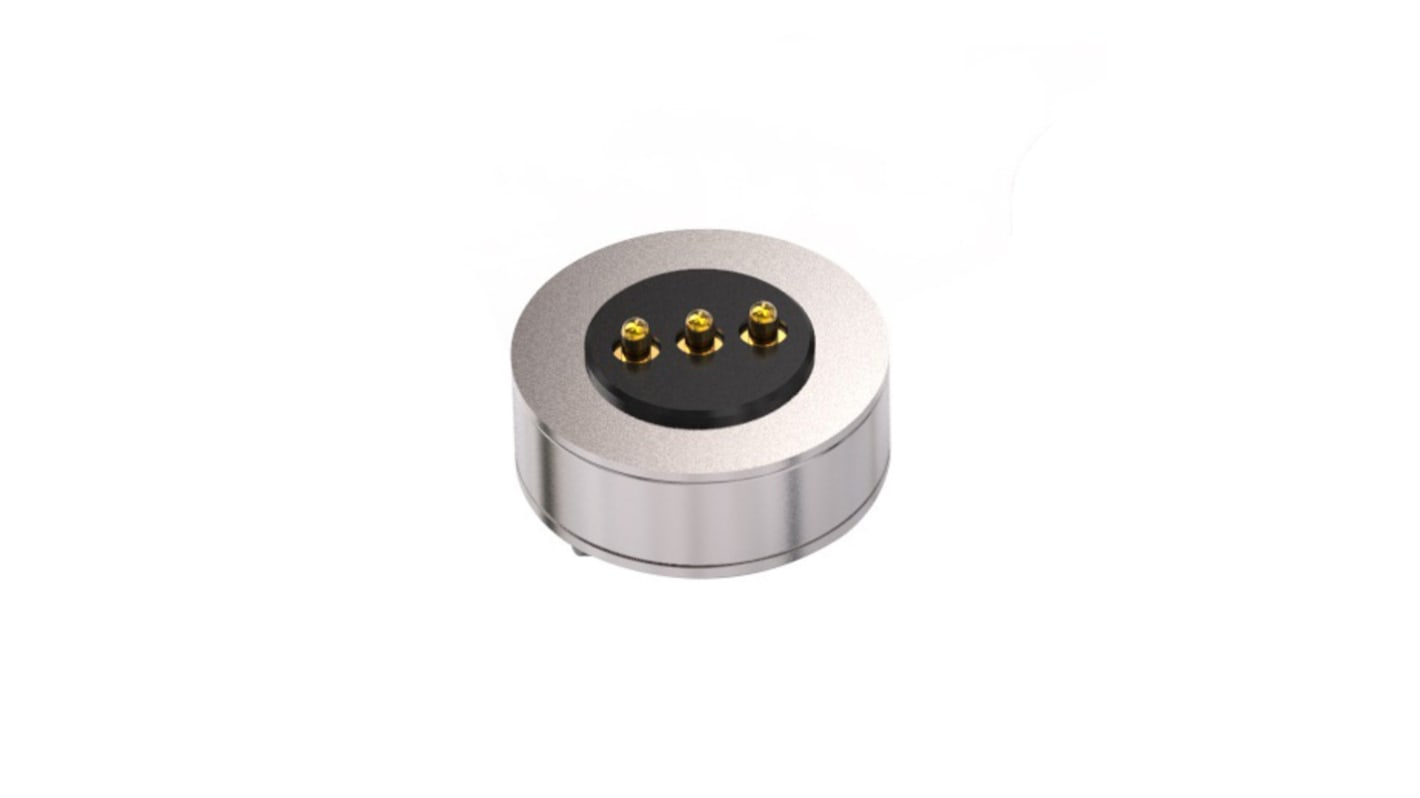

EDAC, 685, Straight PCB Mount3 way Magnetic Connector Male, Solder Pin Termination
- RS Stock No.:
- 253-3551
- Mfr. Part No.:
- 685-0032220-111
- Brand:
- EDAC
Subtotal (1 bag of 100 units)*
£775.30
(exc. VAT)
£930.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 999,999,700 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 + | £7.753 | £775.30 |
*price indicative
- RS Stock No.:
- 253-3551
- Mfr. Part No.:
- 685-0032220-111
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EDAC | |
Gender | Male | |
Termination Method | Solder Pin | |
Mounting Type | PCB Mount | |
Number of Ways | 3 | |
Body Orientation | Straight | |
Connector Type | Magnetic Jack | |
Series | 685 | |
Select all | ||
---|---|---|
Brand EDAC | ||
Gender Male | ||
Termination Method Solder Pin | ||
Mounting Type PCB Mount | ||
Number of Ways 3 | ||
Body Orientation Straight | ||
Connector Type Magnetic Jack | ||
Series 685 | ||
- COO (Country of Origin):
- CN
The EDAC magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts. The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
Voltage rating is 5v
Current rating is 2A max
Working temperature range is -30°C to +85°C
Current rating is 2A max
Working temperature range is -30°C to +85°C
