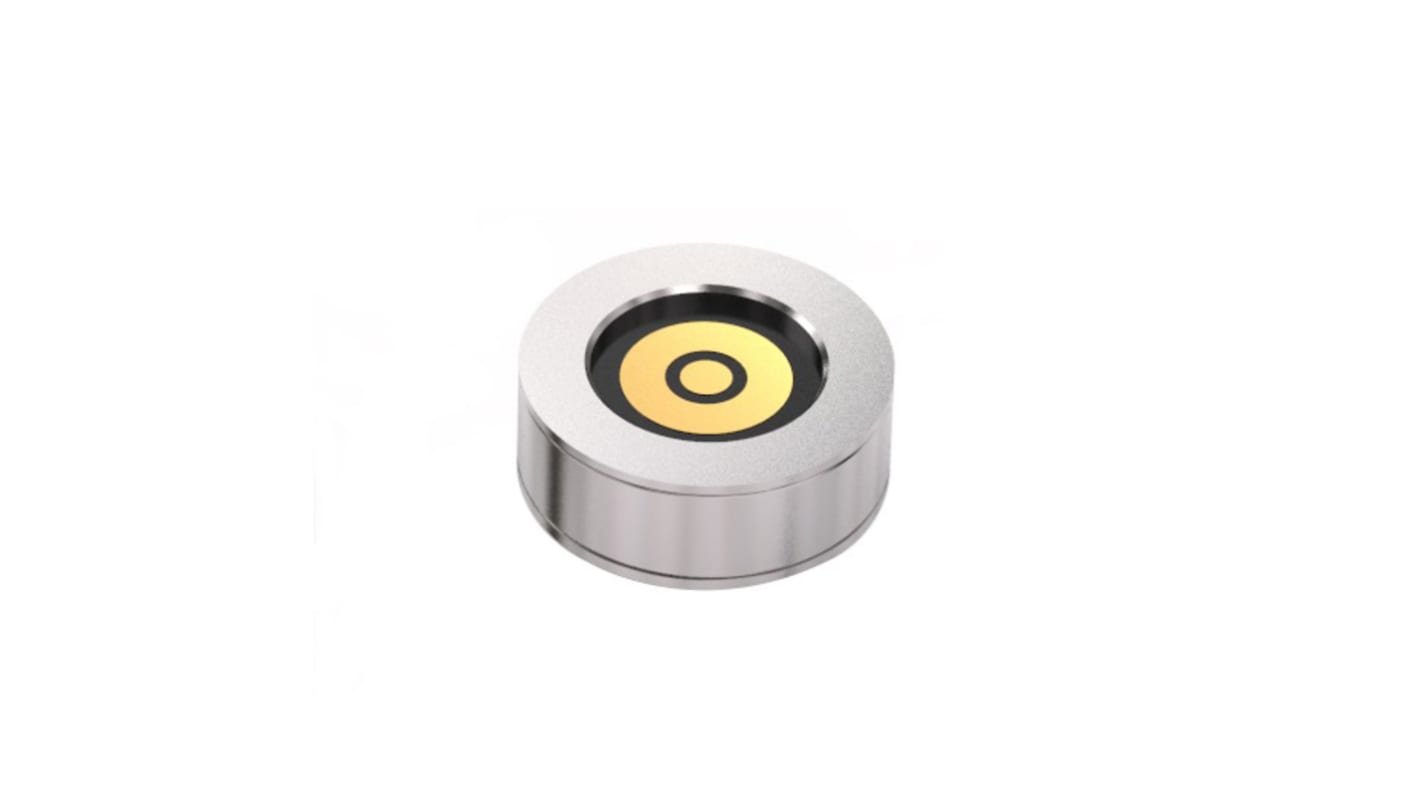

EDAC, 686, Straight PCB Mount3 way Magnetic Connector Female, Solder Pin Termination

View all Magnetic Connectors

Subtotal (1 bag of 100 units)*

£774.30

(exc. VAT)

£929.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
100 +£7.743£774.30

*price indicative

RS Stock No.:
253-3563
Mfr. Part No.:
686-0032220-111
Brand:
EDAC
Find similar products by selecting one or more attributes.
Select all

Brand

EDAC

Number of Ways

3

Gender

Female

Connector Type

Magnetic Jack

Mounting Type

PCB Mount

Termination Method

Solder Pin

Body Orientation

Straight

Series

686

COO (Country of Origin):
CN
The EDAC magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts. The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Voltage rating is 5v
Current rating is 2A max
Working temperature range is -30°C to +85°C
