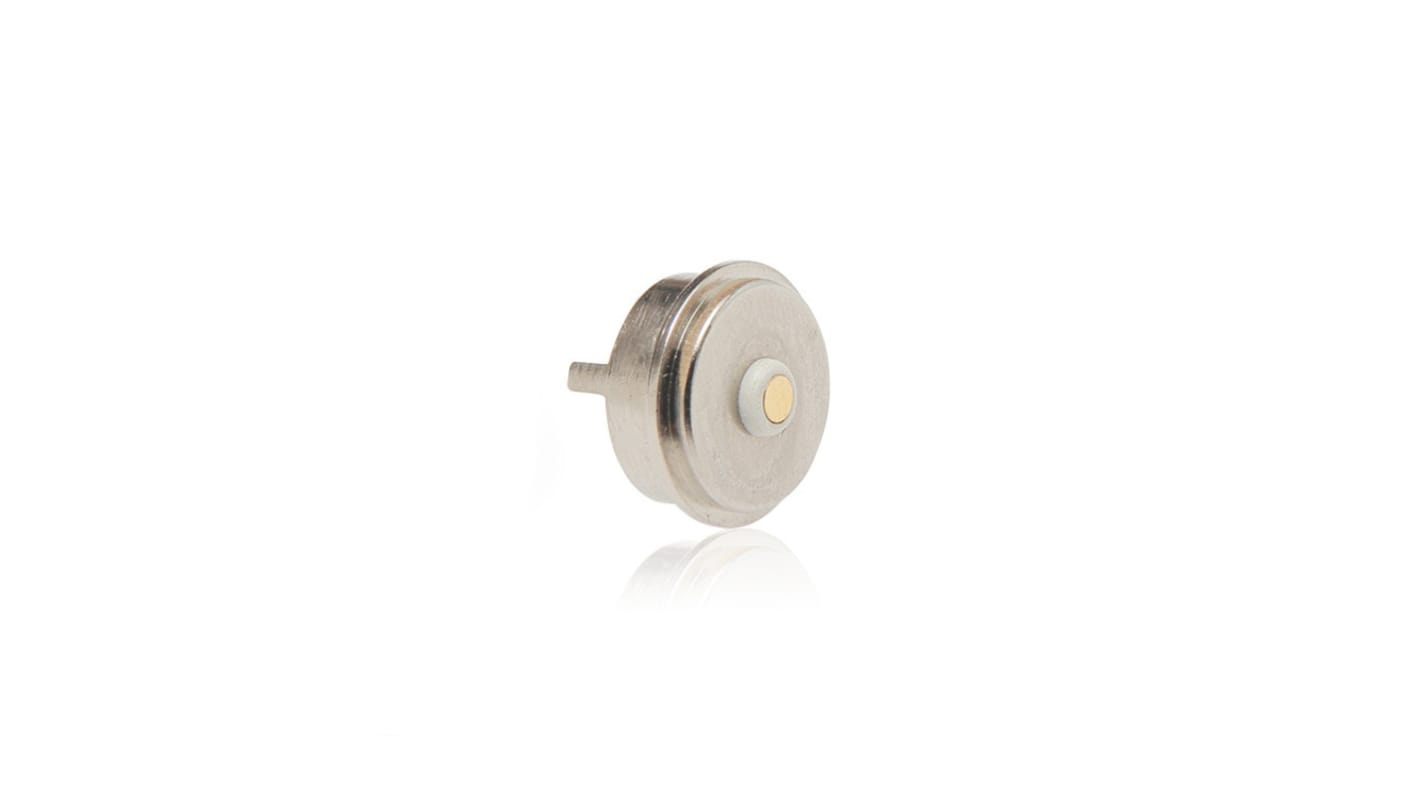

EDAC, 686, Straight PCB Mount Female Magnetic Connector, Solder Pin Termination
- RS Stock No.:
- 253-3561
- Mfr. Part No.:
- 686-00222201111
- Brand:
- EDAC
Available to back order for despatch 23/10/2024
Added
Price Each (In a Bag of 100)
£3.401
(exc. VAT)
£4.081
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 + | £3.401 | £340.10 |
| *price indicative | ||
- RS Stock No.:
- 253-3561
- Mfr. Part No.:
- 686-00222201111
- Brand:
- EDAC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The EDAC magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts. The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
Voltage rating is 5v
Current rating is 2A max
Working temperature range is -30°C to +85°C
Current rating is 2A max
Working temperature range is -30°C to +85°C
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Number of Ways | 2 |
| Mounting Type | PCB Mount |
| Body Orientation | Straight |
| Termination Method | Solder Pin |
| Connector Type | Magnetic Jack |
| Series | 686 |
