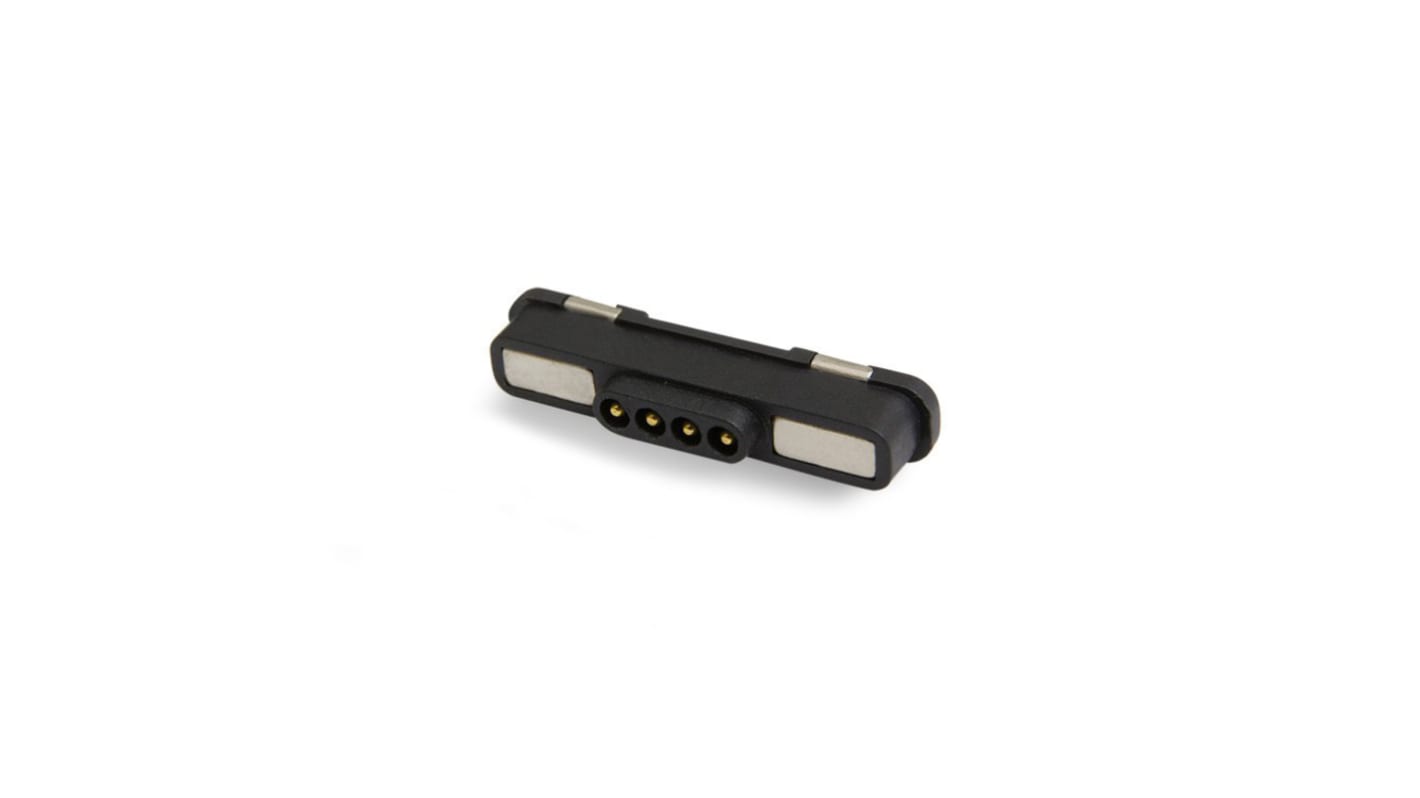

EDAC, 685, Straight PCB Mount4 way Magnetic Connector Male, Solder Pin Termination
- RS Stock No.:
- 253-3555
- Mfr. Part No.:
- 685L0421250110E
- Brand:
- EDAC
Subtotal (1 bag of 100 units)*
£539.50
(exc. VAT)
£647.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 + | £5.395 | £539.50 |
*price indicative
- RS Stock No.:
- 253-3555
- Mfr. Part No.:
- 685L0421250110E
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EDAC | |
Gender | Male | |
Series | 685 | |
Number of Ways | 4 | |
Mounting Type | PCB Mount | |
Body Orientation | Straight | |
Termination Method | Solder Pin | |
Connector Type | Magnetic Jack | |
Select all | ||
---|---|---|
Brand EDAC | ||
Gender Male | ||
Series 685 | ||
Number of Ways 4 | ||
Mounting Type PCB Mount | ||
Body Orientation Straight | ||
Termination Method Solder Pin | ||
Connector Type Magnetic Jack | ||
- COO (Country of Origin):
- CN
The EDAC magnetic pogo pins are used in almost every kind of electronic device today. Their high durability, tolerance and versatile application make them a preferred connector for intelligent electronic designs.
Contact is made of brass
Insulation is PA46, colour black
Voltage rating is 12v
Current rating is 2A max
Working temperature range is -30°C to +85°C
Insulation resistance is 100MOHM min
Insulation is PA46, colour black
Voltage rating is 12v
Current rating is 2A max
Working temperature range is -30°C to +85°C
Insulation resistance is 100MOHM min
