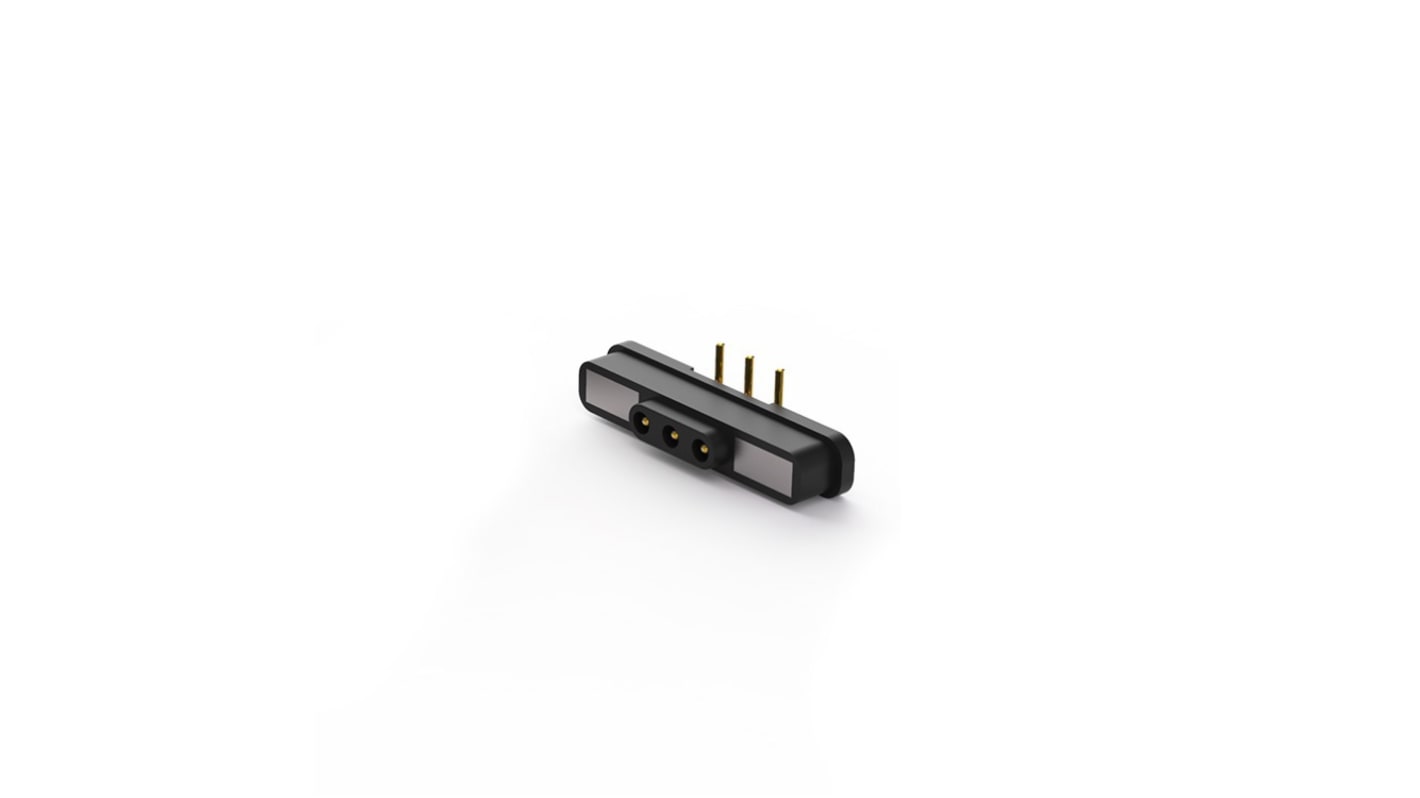

EDAC, 685, Straight PCB 3 way Magnetic Connector, Brass Contact Male, Solder Pin
- RS Stock No.:
- 253-3553
- Distrelec Article No.:
- 304-32-877
- Mfr. Part No.:
- 685-0032231-121
- Brand:
- EDAC
Subtotal (1 bag of 100 units)*
£842.70
(exc. VAT)
£1,011.20
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 100 + | £8.427 | £842.70 |
*price indicative
- RS Stock No.:
- 253-3553
- Distrelec Article No.:
- 304-32-877
- Mfr. Part No.:
- 685-0032231-121
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EDAC | |
| Product Type | Magnetic Connector | |
| Connector Gender | Male | |
| Termination Type | Solder Pin | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Mount Type | PCB | |
| Series | 685 | |
| Orientation | Straight | |
| Connector Type | Magnetic Jack | |
| Number of Ways | 3 | |
| Contact Plating | Gold Flash | |
| Contact Material | Brass | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand EDAC | ||
Product Type Magnetic Connector | ||
Connector Gender Male | ||
Termination Type Solder Pin | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Mount Type PCB | ||
Series 685 | ||
Orientation Straight | ||
Connector Type Magnetic Jack | ||
Number of Ways 3 | ||
Contact Plating Gold Flash | ||
Contact Material Brass | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- CN
The EDAC magnetic pogo pins are used in almost every kind of electronic device today. Their high durability, tolerance and versatile application make them a preferred connector for intelligent electronic designs.
Contact is made of brass
Insulation is PA46, colour black
Voltage rating is 12v
Current rating is 2A max
Working temperature range is -30°C to +85°C
