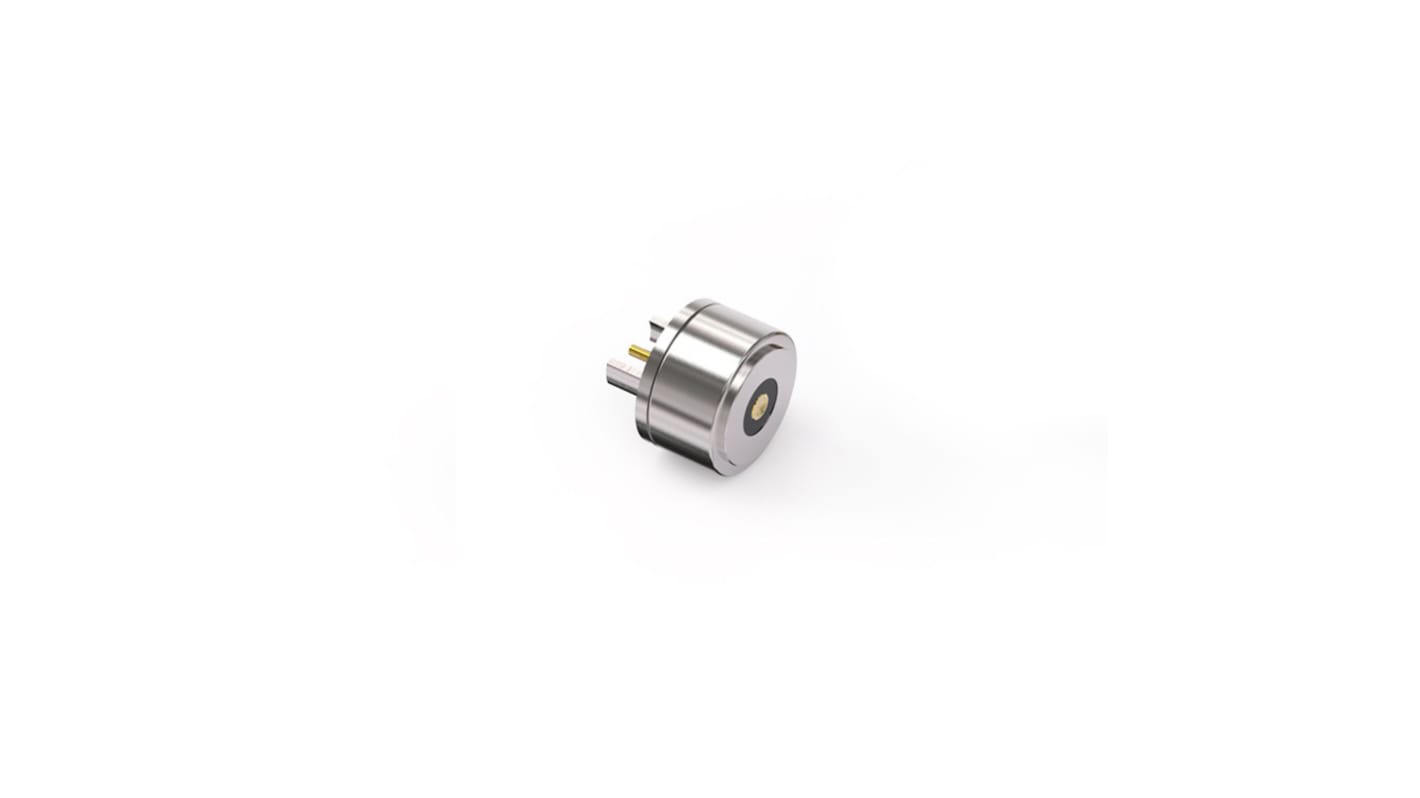

EDAC, 686, Straight PCB Mount2 way Magnetic Connector Female, Solder Pin Termination
- RS Stock No.:
- 253-3559
- Mfr. Part No.:
- 686-00221200111
- Brand:
- EDAC
Subtotal (1 bag of 100 units)*
£362.40
(exc. VAT)
£434.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 + | £3.624 | £362.40 |
*price indicative
- RS Stock No.:
- 253-3559
- Mfr. Part No.:
- 686-00221200111
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EDAC | |
Mounting Type | PCB Mount | |
Number of Ways | 2 | |
Gender | Female | |
Series | 686 | |
Body Orientation | Straight | |
Termination Method | Solder Pin | |
Connector Type | Magnetic Jack | |
Select all | ||
---|---|---|
Brand EDAC | ||
Mounting Type PCB Mount | ||
Number of Ways 2 | ||
Gender Female | ||
Series 686 | ||
Body Orientation Straight | ||
Termination Method Solder Pin | ||
Connector Type Magnetic Jack | ||
- COO (Country of Origin):
- CN
The EDAC magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts. The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
Voltage rating is 12v
Current rating is 12A
Insulation resistance is 100MOHM min
Working temperature range is -30°C to +85°C
Current rating is 12A
Insulation resistance is 100MOHM min
Working temperature range is -30°C to +85°C
