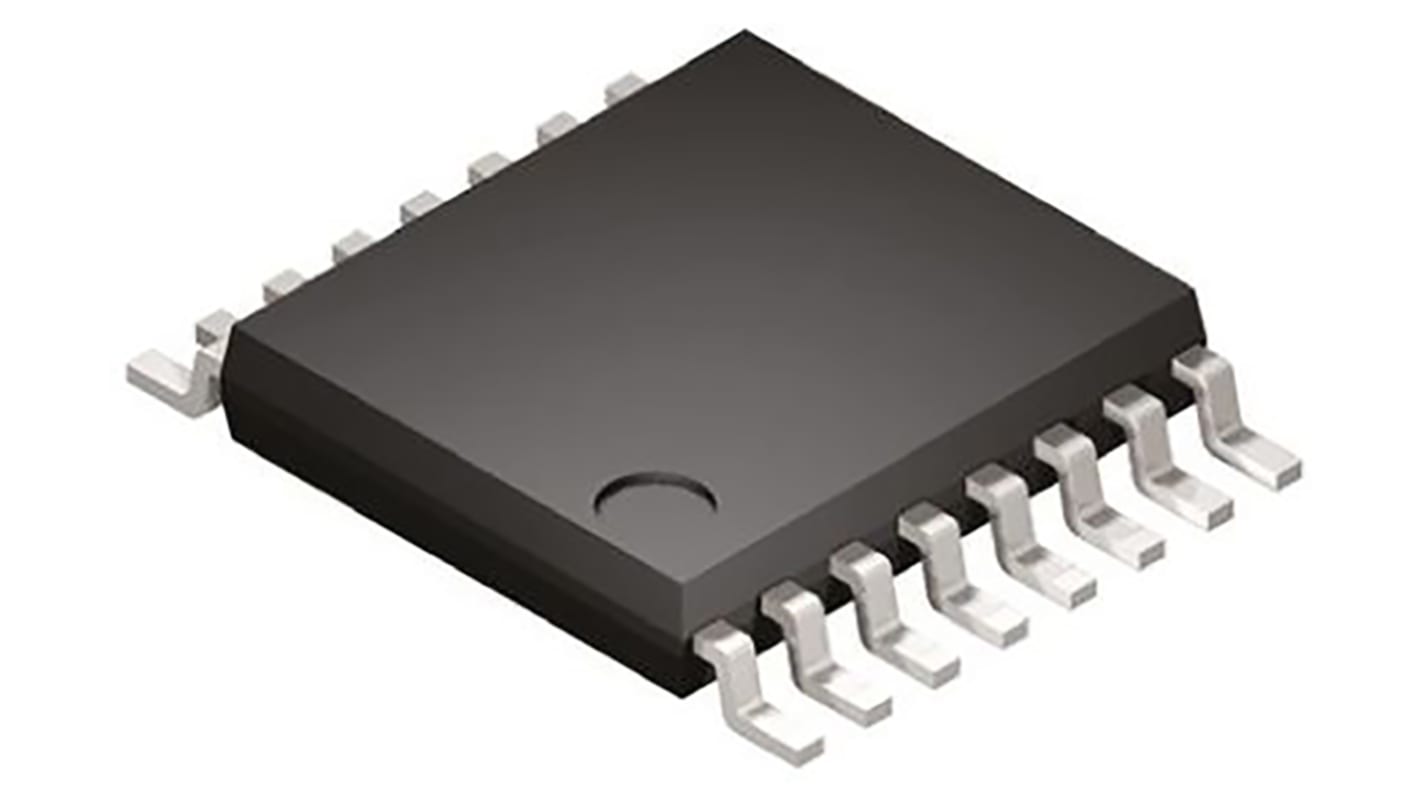

Texas Instruments SN65LVDS33PW, LVDS Receiver Dual CMOS, ECL, LVCMOS, LVDS, LVECL, LVPECL, PECL LVTTL, 3 → 3.6 V
- RS Stock No.:
- 660-9026
- Mfr. Part No.:
- SN65LVDS33PW
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 660-9026
- Mfr. Part No.:
- SN65LVDS33PW
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Number of Drivers | 2 | |
| Input Type | CMOS, ECL, LVCMOS, LVDS, LVECL, LVPECL, PECL | |
| Output Type | LVTTL | |
| Transmission Data Rate | 400Mbps | |
| Number of Elements per Chip | 2 | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Differential Input High Threshold Voltage | -50mV | |
| Differential Input Low Threshold Voltage | -50mV | |
| Dimensions | 5 x 4.4 x 1.15mm | |
| Height | 1.15mm | |
| Length | 5mm | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Minimum Operating Supply Voltage | 3 V | |
| Width | 4.4mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Number of Drivers 2 | ||
Input Type CMOS, ECL, LVCMOS, LVDS, LVECL, LVPECL, PECL | ||
Output Type LVTTL | ||
Transmission Data Rate 400Mbps | ||
Number of Elements per Chip 2 | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Differential Input High Threshold Voltage -50mV | ||
Differential Input Low Threshold Voltage -50mV | ||
Dimensions 5 x 4.4 x 1.15mm | ||
Height 1.15mm | ||
Length 5mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Minimum Operating Supply Voltage 3 V | ||
Width 4.4mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
LVDS Line Receivers, Texas Instruments
A range of Differential line receivers for balanced or unbalanced digital data transmission via LVDS networks fromTexas Instruments.
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
