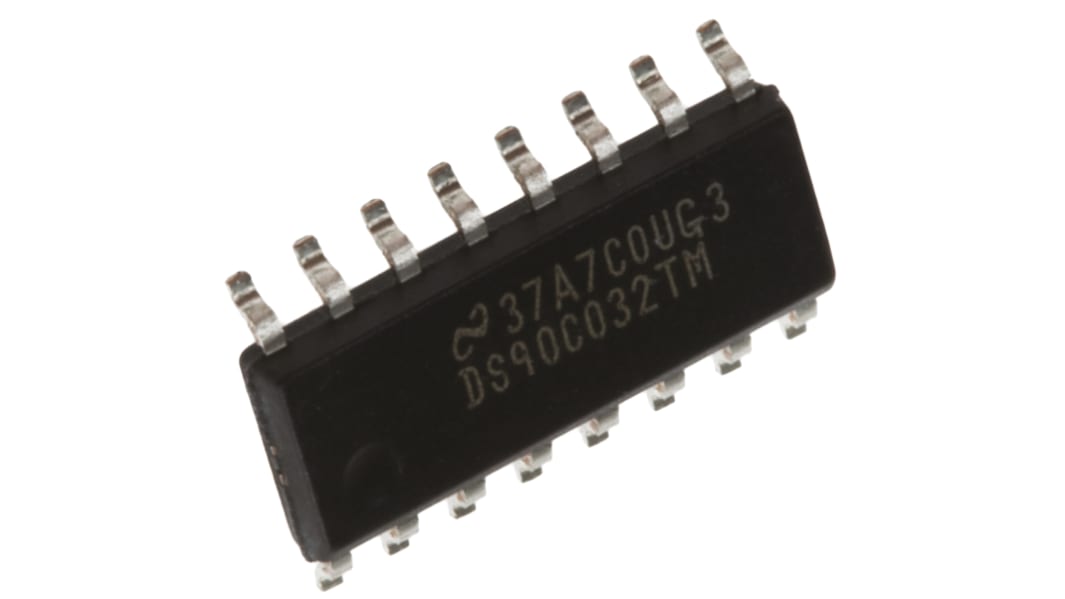

Texas Instruments DS90C032TM/NOPB, Receiver IC 4 LVDS TTL, 16-Pin SOIC

View all LVDS Interface Ics
Bulk discount available

Subtotal (1 unit)*

£3.25

(exc. VAT)

£3.90

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 6 unit(s) ready to ship from another location
  • Plus 9 unit(s) shipping from 27 February 2026
  • Plus 384 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£3.25
10 - 49£2.64
50 - 99£2.51
100 - 249£2.44
250 +£2.33

*price indicative

Packaging Options:
RS Stock No.:
533-8007
Mfr. Part No.:
DS90C032TM/NOPB
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Product Type

Receiver IC

Number of Drivers

4

Input Type

LVDS

Number of Receivers

4

Sub Type

Receiver

Output Type

TTL

Transmission Data Rate

155Mbps

Number of Elements per Chip

4

Mount Type

Surface

Package Type

SOIC

Pin Count

16

Minimum Supply Voltage

4.5V

Differential Input High Threshold Voltage

100mV

Maximum Supply Voltage

5.5V

Differential Input Low Threshold Voltage

-100mV

ESD Protection

Yes

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

9.91mm

Series

DS90C032

Standards/Approvals

RoHS

Width

3.91 mm

Height

1.45mm

Automotive Standard

No

Differential Line Drivers and Receivers (LVDS PHY), Texas Instruments


LVDS Communication


Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.

Applications: Firewire, SATA, SCSI
