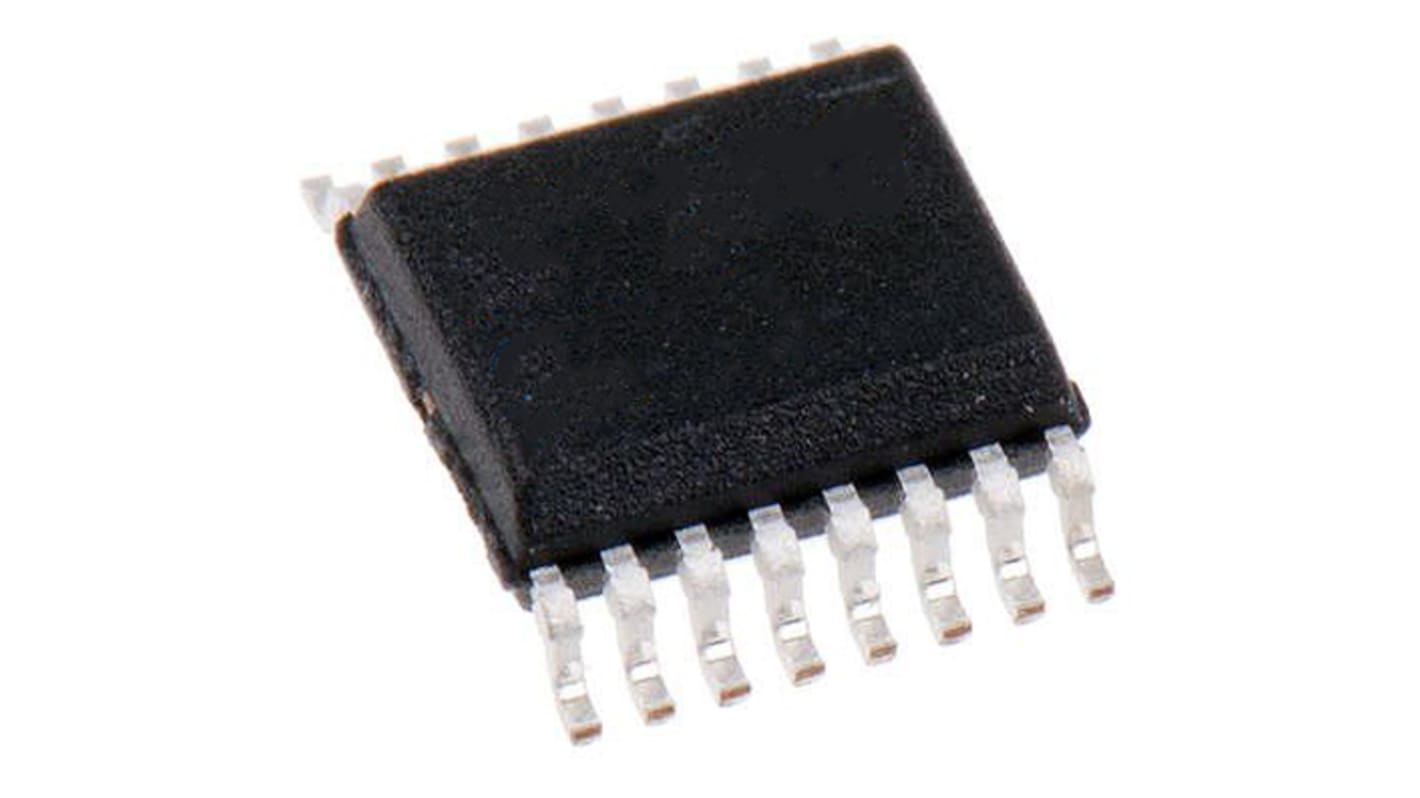

ROHM BU90LV049A-E2, LVDS Transceiver Quad LVCMOS LVDS, 16-Pin SSOP
- RS Stock No.:
- 169-9333
- Mfr. Part No.:
- BU90LV049A-E2
- Brand:
- ROHM
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 169-9333
- Mfr. Part No.:
- BU90LV049A-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Number of Drivers | 4 | |
| Input Type | LVCMOS | |
| Output Type | LVDS | |
| IC Type | Transceiver IC | |
| Transmission Data Rate | 500Mbps | |
| Number of Elements per Chip | 4 | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 16 | |
| Differential Input High Threshold Voltage | 100mV | |
| Differential Input Low Threshold Voltage | -100mV | |
| Dimensions | 5 x 4.4 x 1.05mm | |
| Height | 1.05mm | |
| Length | 5mm | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Width | 4.4mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 3 V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Number of Drivers 4 | ||
Input Type LVCMOS | ||
Output Type LVDS | ||
IC Type Transceiver IC | ||
Transmission Data Rate 500Mbps | ||
Number of Elements per Chip 4 | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 16 | ||
Differential Input High Threshold Voltage 100mV | ||
Differential Input Low Threshold Voltage -100mV | ||
Dimensions 5 x 4.4 x 1.05mm | ||
Height 1.05mm | ||
Length 5mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Width 4.4mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 3 V | ||
Minimum Operating Temperature -40 °C | ||
LVDS Interface IC of ROHM "Serializer" "Deserializer" operate from 8MHz to 150MHz wide clock range, and number of bits range is from 35 to 70. Data is transmitted seven times (7x) stream and reduce cable number by 3 (1 / 3) or less. The ROHM's LVDS has low swing mode to be able to expect further low EMI. Driver and Receiver of 4 bits operate to 250MHz. It can be used for a variety of purposes, home appliances such as LCD-TV, business machines such as decoders, instruments, and medical equipment.
500Mbps (250MHz) switching rates
Flow-through pinout simplifies PCB layout
400ps typical driver channel-to-channel skew
150ps typical receiver channel-to-channel skew
3.3V power supply design
±200mV and ±350mV selectable differential signalling (driver)
6mA and 8mA selectable output drive strength (receiver)
3-STATE output control
Internal fail-safe biasing of receiver inputs
High impedance on LVDS outputs on power down
Industrial operating temperature range (-40℃ to +85℃)
Flow-through pinout simplifies PCB layout
400ps typical driver channel-to-channel skew
150ps typical receiver channel-to-channel skew
3.3V power supply design
±200mV and ±350mV selectable differential signalling (driver)
6mA and 8mA selectable output drive strength (receiver)
3-STATE output control
Internal fail-safe biasing of receiver inputs
High impedance on LVDS outputs on power down
Industrial operating temperature range (-40℃ to +85℃)
