RF Solutions, LoRa Module Transceiver 868MHz, -130dBm Receiver Sensitivity
- RS Stock No.:
- 903-3059
- Mfr. Part No.:
- RF-LORA-868-SO
- Brand:
- RF Solutions
Bulk discount available
Subtotal (1 unit)*
£16.83
(exc. VAT)
£20.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.83 |
5 + | £16.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£8.38
(exc. VAT)
£10.06
(inc. VAT)
- RS Stock No.:
- 903-3059
- Mfr. Part No.:
- RF-LORA-868-SO
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RF Solutions | |
Maximum Output Power | +20dBm | |
Protocol Type | Lora | |
Receiver Sensitivity | -130dBm | |
Supply Voltage | 1.8 → 3.6V | |
Dimensions | 19.95 x 23 x 1mm | |
Select all | ||
---|---|---|
Brand RF Solutions | ||
Maximum Output Power +20dBm | ||
Protocol Type Lora | ||
Receiver Sensitivity -130dBm | ||
Supply Voltage 1.8 → 3.6V | ||
Dimensions 19.95 x 23 x 1mm | ||
- COO (Country of Origin):
- GB

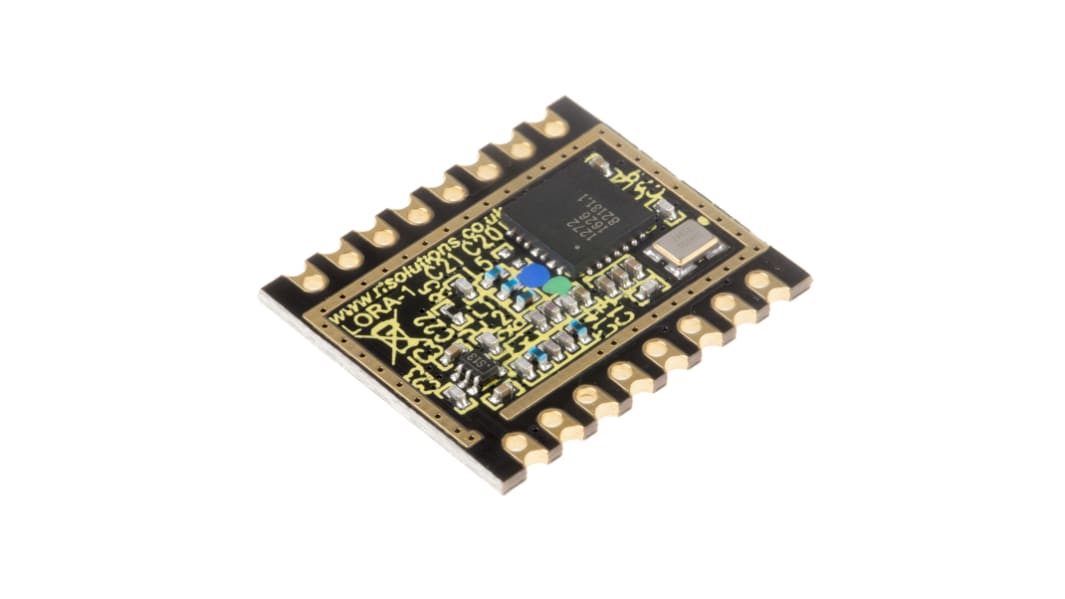

LoRa 868GHz Long-Range RF Transceiver Module
The LoRa™ RF Transceiver Module features the Semtech SX1272 transceiver chip which uses a variation of Chirp Spread Spectrum coding called LoRa, to improve receiver sensitivity and hence achieve extended range. The module can also use OOK and FSK modulation schemes to maintain compatibility with other standards such as IEEE 802.15.4 and wMBUS. LoRa features increased interference immunity over conventional FSK providing an enhanced coexistence capability in crowded channels.
RF Frequency Range: 868MHz ISM Band
Channel bandwidth: 125kHz, 250kHz or 500kHz
RF Power Output: up to +20dBm
+14 dBm high efficiency PA
Receiver Sensitivity: -119dBm @ 1.2kbps (FSK), -137dBm @ 240bps (LoRa, SF=12, CR=4/8)
Modulation: FSK, GFSK, MSK, GMSK or OOK
LoRa™ spread-spectrum technology
OTA Data Rate: up to 250kbps (FSK/OOK), up to 37.5kbps (LoRa)
Range: up to 16km (Line of Sight)
Packet engine up to 256 bytes with CRC
Forward Error Correction (FEC) with selectable Coding Rate
127dB dynamic range RSSI
Host communication: serial SPI
Temperature sensor and low-battery indicator
Power supply: +2.2V to +3.7Vdc
Operating temperature range: 0 to +55°C
Dimensions: 23 x 20 x 1.5mm
Applications: Meter reading, sensor networks, wireless alarms, home automation, long-range communication for the Internet of Things (IoT)
Channel bandwidth: 125kHz, 250kHz or 500kHz
RF Power Output: up to +20dBm
+14 dBm high efficiency PA
Receiver Sensitivity: -119dBm @ 1.2kbps (FSK), -137dBm @ 240bps (LoRa, SF=12, CR=4/8)
Modulation: FSK, GFSK, MSK, GMSK or OOK
LoRa™ spread-spectrum technology
OTA Data Rate: up to 250kbps (FSK/OOK), up to 37.5kbps (LoRa)
Range: up to 16km (Line of Sight)
Packet engine up to 256 bytes with CRC
Forward Error Correction (FEC) with selectable Coding Rate
127dB dynamic range RSSI
Host communication: serial SPI
Temperature sensor and low-battery indicator
Power supply: +2.2V to +3.7Vdc
Operating temperature range: 0 to +55°C
Dimensions: 23 x 20 x 1.5mm
Applications: Meter reading, sensor networks, wireless alarms, home automation, long-range communication for the Internet of Things (IoT)
Note
External 50Ω antenna required.
Approvals
CE
