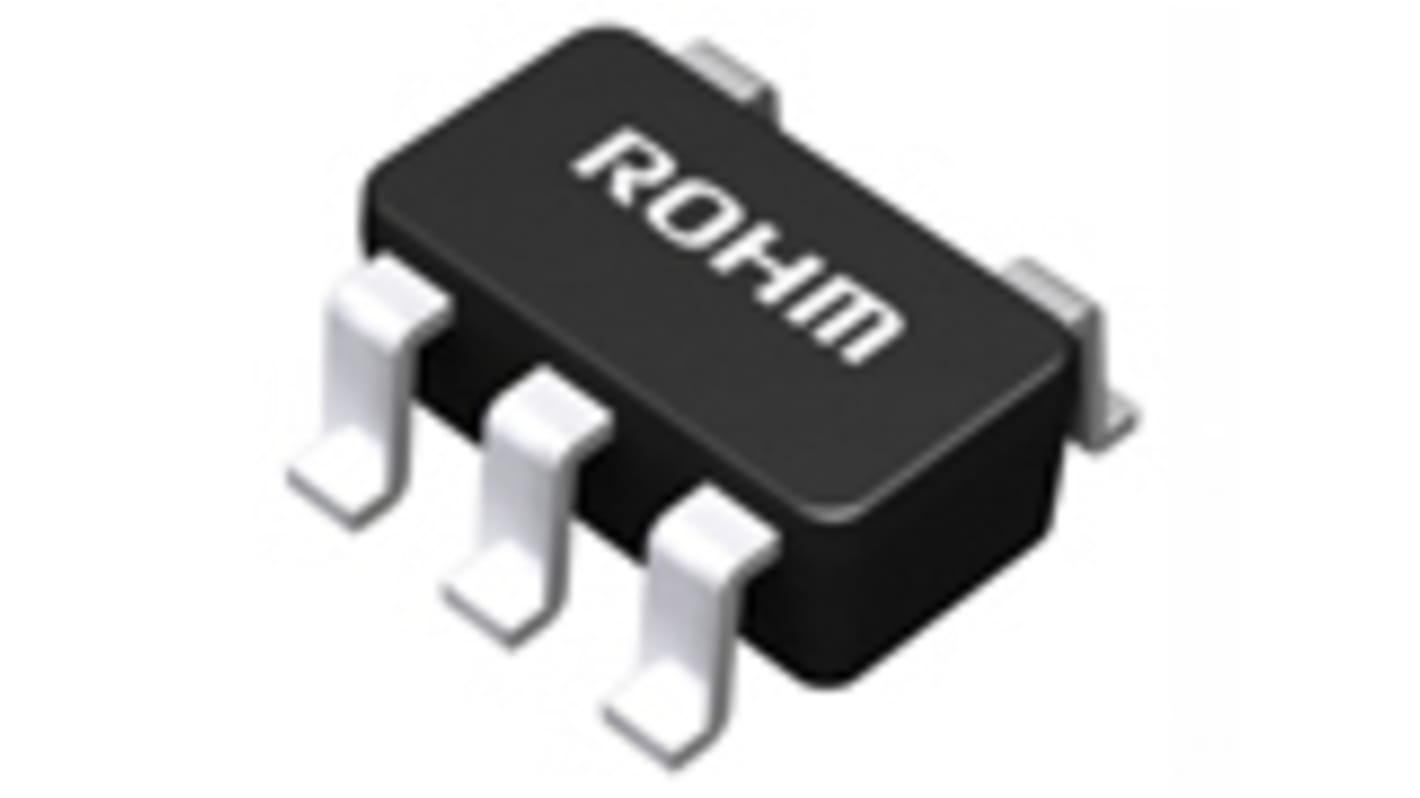

ROHM BU4S584G2-TR 1-Input Inverter Schmitt Trigger Schmitt Trigger Logic Gate, 5-Pin SSOP
- RS Stock No.:
- 168-2362
- Mfr. Part No.:
- BU4S584G2-TR
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 25 units)*
£11.20
(exc. VAT)
£13.45
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2,750 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.448 | £11.20 |
| 125 - 600 | £0.378 | £9.45 |
| 625 - 1225 | £0.295 | £7.38 |
| 1250 - 2475 | £0.287 | £7.18 |
| 2500 + | £0.28 | £7.00 |
*price indicative
- RS Stock No.:
- 168-2362
- Mfr. Part No.:
- BU4S584G2-TR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Logic Function | Inverter Schmitt Trigger | |
| Mounting Type | Surface Mount | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 1 | |
| Schmitt Trigger Input | Yes | |
| Package Type | SSOP | |
| Pin Count | 5 | |
| Logic Family | CMOS | |
| Input Type | LS-TTL, L-TTL | |
| Maximum Operating Supply Voltage | 16 V | |
| Maximum High Level Output Current | -3.4mA | |
| Maximum Propagation Delay Time @ Maximum CL | 230 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 3 V | |
| Maximum Low Level Output Current | 3.4mA | |
| Dimensions | 2.9 x 1.6 x 1.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Output Type | Buffer | |
| Propagation Delay Test Condition | 50pF | |
| Height | 1.2mm | |
| Width | 1.6mm | |
| Minimum Operating Temperature | -40 °C | |
| Length | 2.9mm | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Logic Function Inverter Schmitt Trigger | ||
Mounting Type Surface Mount | ||
Number of Elements 1 | ||
Number of Inputs per Gate 1 | ||
Schmitt Trigger Input Yes | ||
Package Type SSOP | ||
Pin Count 5 | ||
Logic Family CMOS | ||
Input Type LS-TTL, L-TTL | ||
Maximum Operating Supply Voltage 16 V | ||
Maximum High Level Output Current -3.4mA | ||
Maximum Propagation Delay Time @ Maximum CL 230 ns @ 50 pF | ||
Minimum Operating Supply Voltage 3 V | ||
Maximum Low Level Output Current 3.4mA | ||
Dimensions 2.9 x 1.6 x 1.1mm | ||
Maximum Operating Temperature +85 °C | ||
Output Type Buffer | ||
Propagation Delay Test Condition 50pF | ||
Height 1.2mm | ||
Width 1.6mm | ||
Minimum Operating Temperature -40 °C | ||
Length 2.9mm | ||
Logic gate series of ROHM that is compatible with 4S, 4000B series corresponds to high power supply voltage and has wide lineup with all kinds of function. It is able to be used with various applications.
Low power consumption.
Wide operating supply voltage (3 to 16 (18)V).
High input impedance.
High fan out.
L-TTL2 input and LS-TTL1 input can be driven directly.
Pin compatible with 4S, 4000B series.
Function compatible with 4S, 4000B series.
Wide lineup of package.
Wide operating supply voltage (3 to 16 (18)V).
High input impedance.
High fan out.
L-TTL2 input and LS-TTL1 input can be driven directly.
Pin compatible with 4S, 4000B series.
Function compatible with 4S, 4000B series.
Wide lineup of package.
