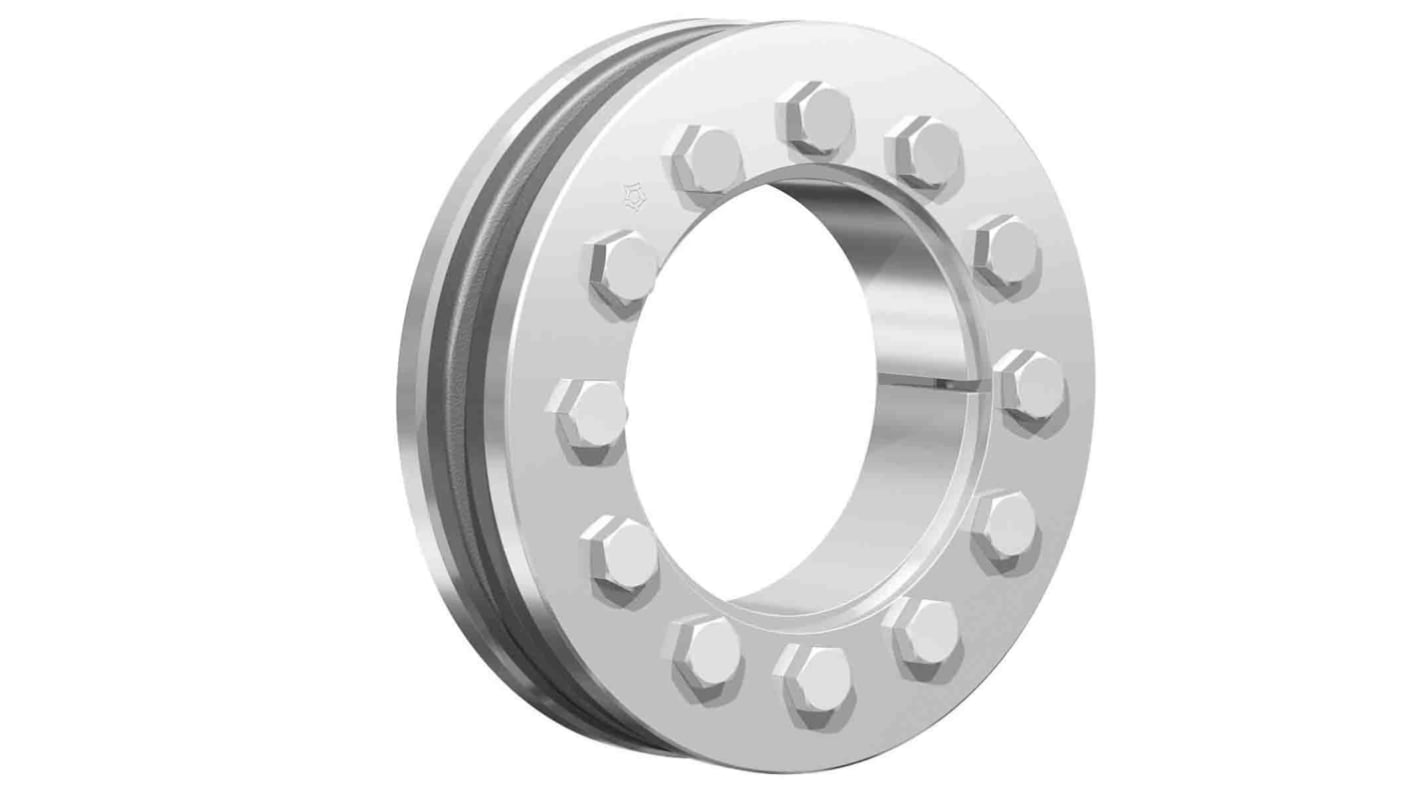

Ringfeder Shrink Disc 4061 - 48x80, 36mm Shaft Diameter
- RS Stock No.:
- 188-3166
- Mfr. Part No.:
- 4061 - 48x80
- Brand:
- Ringfeder
3 In stock - FREE next working day delivery available
Added
Price Each
£83.53
(exc. VAT)
£100.24
(inc. VAT)
| Units | Per unit |
| 1 + | £83.53 |
- RS Stock No.:
- 188-3166
- Mfr. Part No.:
- 4061 - 48x80
- Brand:
- Ringfeder
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Standard series – this range is the most popular, being used in most applications. This new design of Shrink Disc is made from high alloy forged rings and is practically indestructible. Replacing the smaller 4071 design, these units are available from 14mm to 195mm bore.
Specifications
Attribute | Value |
|---|---|
| Shaft Diameter | 36 mm, 38 mm, 40mm |
| Outside Diameter | 80mm |
| Locking Bush Type | Shrink Disc |
| Length | 30mm |
| Rated Torque | 1150 Nm, 1350 Nm, 1550Nm |
| Series | RfN 4061 |
