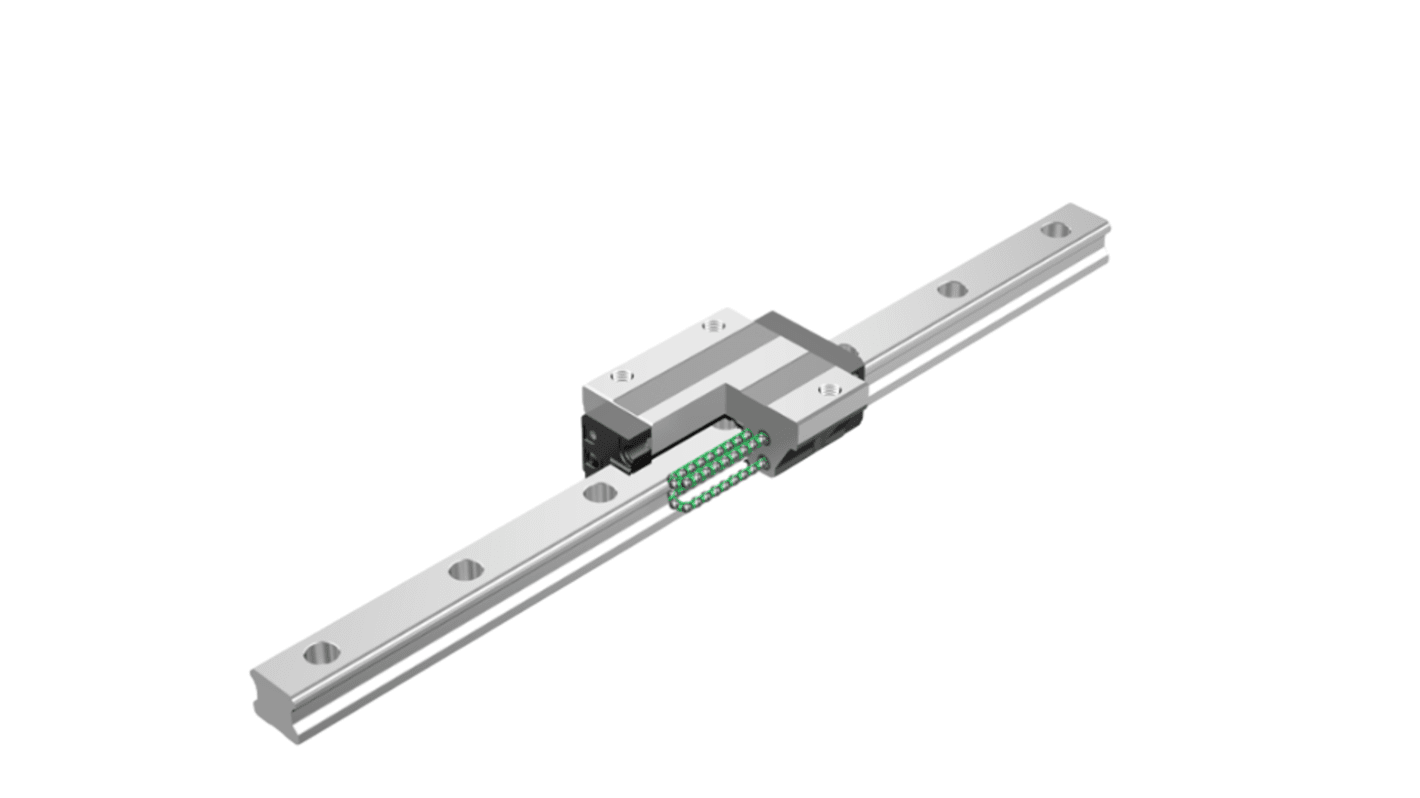

THK SHS Series, SHS20-580L(GK), Linear Guide Rail 20mm width 580mm Length

View all Linear Guide Rails

Subtotal (1 unit)*

£142.72

(exc. VAT)

£171.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£142.72

*price indicative

RS Stock No.:
619-868
Mfr. Part No.:
SHS20-580L(GK)
Brand:
THK
Find similar products by selecting one or more attributes.
Select all

Brand

THK

Rail Width

20mm

Rail Length

580mm

Manufacturer Series

SHS

COO (Country of Origin):
FR
The THK SHS Model rails also include a type where the LM rail is tapped from the bottom. This type is useful when mounting from the bottom of the base and when increased contamination protection is desired. Balls roll in four rows of raceways precision ground on an LM rail and an LM block and ball cages and endplates incorporated in the LM block allow the balls to circulate. Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in the four directions of radial, reverse radial, and lateral directions which enabling the LM Guide to be used in all orientations.

Long term maintenance free
High accuracy
Heavy load
Self adjusting capability
4 way equal load
