THK Linear Guide Carriage SHS-LC, 36.8kN Dynamic Load, 23mm Rail Width

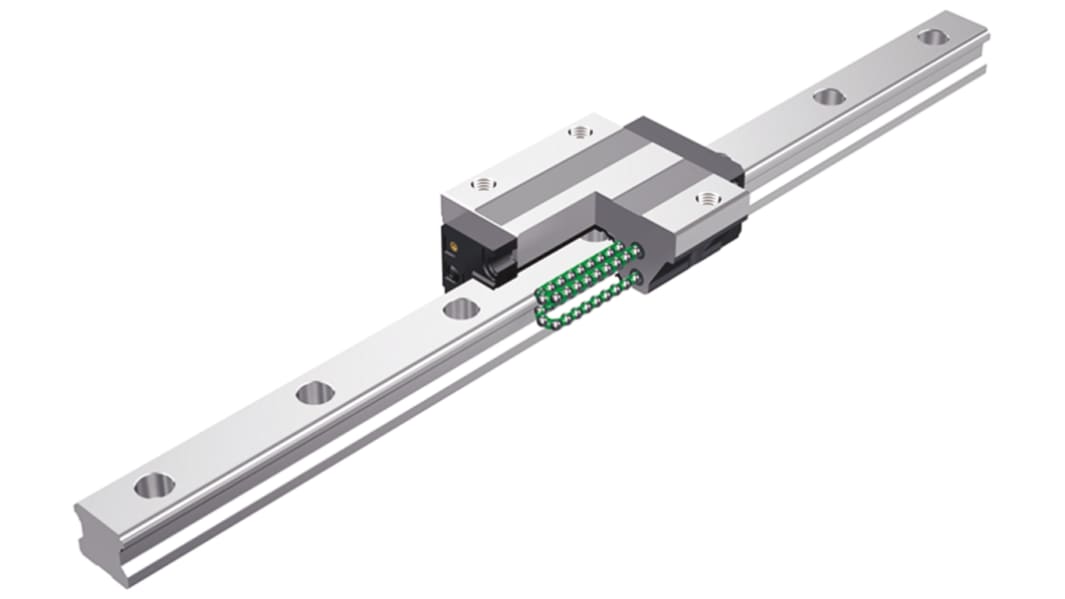

Image representative of range

View all Linear Guide Blocks
Bulk discount available

Subtotal (1 unit)*

£184.75

(exc. VAT)

£221.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£184.75
5 +£179.01

*price indicative

RS Stock No.:
810-0300
Mfr. Part No.:
SHS25LC1SS(GK)
Brand:
THK
Find similar products by selecting one or more attributes.
Select all

Brand

THK

Manufacturer Series

SHS-LC

For Rail Width

23mm

Carriage Length

109mm

Carriage Width

70mm

Dynamic Load Rating

36.8kN

Static Load Rating

64.7kN

RoHS Status: Not Applicable

COO (Country of Origin):
FR

SHS-LC Linear Carriages


THK's SHS-LC range of linear motion carriages feature 4 rows of balls with a cage and 45° contact angle spreading loads evenly in all directions and allowing the SHS-LC system to be mounted in any orientation. The caged ball design eradicates friction between balls and creates grease pockets coating the ball surface with an oil film, minimising losses to friction and providing smooth, high speed running over long maintenance free running periods.
Suitable for a wide range of applications including CNC lathes, drilling machines, conveyance systems and electric discharge machines.

High speed
Smooth motion
Low running noise
Low Maintenance
Long service life


Linear Guides and Rails - THK


THK Linear Motion Bearings enable smooth movement and positioning in one dimension, and are used in many different applications. THK Linear bearings are designed to work with large loads, offer excellent rigidity, impressive error-absorbing capabilities, easy maintenance, and application-dependent energy savings.
